CAN-Bus minus 50

unshielded, halogen-free CAN-Bus cable with UL recognition

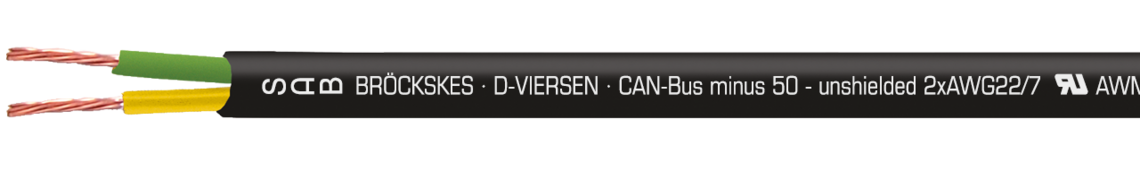

Marking for CAN-Bus minus 50 06290041: SAB BRÖCKSKES · D-VIERSEN · CAN-Bus minus 50 - unshielded 2xAWG22/7 UL AWM Style 20549 80°C 300V 0629-0041 CE

Marking for CAN-Bus minus 50 06290041: SAB BRÖCKSKES · D-VIERSEN · CAN-Bus minus 50 - unshielded 2xAWG22/7 UL AWM Style 20549 80°C 300V 0629-0041 CE

Application

The unshielded CAN bus cable with narrow bending radii and small outer diameter is easy to assemble and extremely easy to install due to its cable structure. The cable is cold-resistant down to -50°C according to DIN EN 60811-506 and has good burning behaviour according to IEC 60332-1-2 + VDE 0482-332-1-2.

Outstanding features

  • small outer diameter
  • smallest bending radius
  • very high abrasion resistance
  • easy harnessing
  • very easy installation

Construction

Conductor

bare copper strands

Insulation

SABIX®

Colour code

yellow, green

Stranding

together

Sheath material

TMPU with mat surface

Sheath colour

black (RAL 9005)

Conductor

bare copper strands

Insulation

SABIX®

Colour code

yellow, green

Stranding

together

Sheath material

TMPU with mat surface

Sheath colour

black (RAL 9005)

Technical Data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 2 x d (one single bend)

flexible application: 10 x d

Temperature range

UL: up to +80 °C

fixed laying: -50/+90 °C (+125 °C/2000 h)

flexible application: -40/+90 °C (+125 °C/2000 h)

Low temperature resistance

-50°C acc. to DIN EN 60811-506

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606

UV resistance

acc. to HD 605 S1

Ozone resistance

acc. to EN 50396

Saltwater resistance

acc. to UL 1309

Characteristic impedance

120 Ω (95 - 140 Ω bei 1 MHz)

Tensile strength

> 25,0 N/mm²

Elongation at tear

> 300%

UL AWM Style

20549

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 2 x d (one single bend)

flexible application: 10 x d

Temperature range

UL: up to +80 °C

fixed laying: -50/+90 °C (+125 °C/2000 h)

flexible application: -40/+90 °C (+125 °C/2000 h)

Low temperature resistance

-50°C acc. to DIN EN 60811-506

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

MUD resistance

very good - acc. to IEC 60092-360, IEC 61892-4, NEK TS 606

UV resistance

acc. to HD 605 S1

Ozone resistance

acc. to EN 50396

Saltwater resistance

acc. to UL 1309

Characteristic impedance

120 Ω (95 - 140 Ω bei 1 MHz)

Tensile strength

> 25,0 N/mm²

Elongation at tear

> 300%

UL AWM Style

20549

Absence of harmful substances

gemäß RoHS-Richtlinie der Europäischen Union

Dimensions

item no. No. of cores x
cross section
Outer-ø ± 5% Copper figure Cable weight ≈
062900212 x AWG 26/72,7 mm2,8 kg/km9 kg/km Send inquiry
062900312 x AWG 24/72,9 mm4,4 kg/km11 kg/km Send inquiry
062900412 x AWG 22/74,1 mm6,8 kg/km21 kg/km Send inquiry
062900512 x AWG 21/194,6 mm9,6 kg/km27 kg/km Send inquiry
062900612 x AWG 19/195,5 mm14,4 kg/km41 kg/km Send inquiry
062900712 x AWG 18/196,3 mm19,2 kg/km49 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
06290021
2 x AWG 26/7
2,7 mm
2,8 kg/km
9 kg/km
06290031
2 x AWG 24/7
2,9 mm
4,4 kg/km
11 kg/km
06290041
2 x AWG 22/7
4,1 mm
6,8 kg/km
21 kg/km
06290051
2 x AWG 21/19
4,6 mm
9,6 kg/km
27 kg/km
06290061
2 x AWG 19/19
5,5 mm
14,4 kg/km
41 kg/km
06290071
2 x AWG 18/19
6,3 mm
19,2 kg/km
49 kg/km

Other dimensions and colours are possible on request.
