CB 627

CAN-bus cable with UL recognition

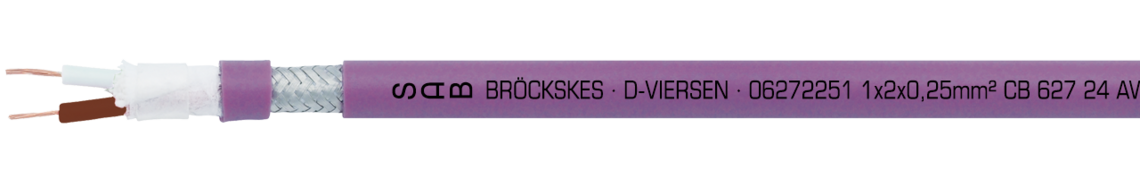

Marking for CB 627 06272251: SAB BRÖCKSKES · D-VIERSEN · 06272251 1 x 2 x 0.25 mm² CB 627 24 AWG/1pr UL AWM Style 2464 80°C 300V CE

Marking for CB 627 06272251: SAB BRÖCKSKES · D-VIERSEN · 06272251 1 x 2 x 0.25 mm² CB 627 24 AWG/1pr UL AWM Style 2464 80°C 300V CE

Application

This CAN bus cable with UL approval has a radiation resistance of 8 x 10⁷ cJ/kg and a very good oil resistance according to DIN VDE 0207 part 5. This cable is used for the exchange of digital information.

Outstanding features

  • UL recognition
  • flame retardant and self-extinguishing
  • very good oil resistance

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103

Colour code

with reference to DIN 47100

Screen

tinned copper braiding

Sheath material

PVC, TM5 acc. to EN 50363-4-1

Sheath colour

redlilac (RAL 4001)

Wrapping

PETP foil

Conductor

bare copper strands with reference to VDE 0812

Insulation

PE, 2YI1 acc. to EN 50290-2-23 + VDE 0819-103

Colour code

with reference to DIN 47100

Screen

tinned copper braiding

Sheath material

PVC, TM5 acc. to EN 50363-4-1

Sheath colour

redlilac (RAL 4001)

Wrapping

PETP foil

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core: 2000V

core/screen: 2000V

Min. bending radius

7,5 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

UL up to +80°C

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - acc. to DIN VDE 0207 part 5

Characteristic impedance

120 Ω (95 - 140 Ω)

Flexibility

good

Application in cable tracks

not recommended

Weather resistance

medium

UL Style

2464

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core: 2000V

core/screen: 2000V

Min. bending radius

7,5 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

UL up to +80°C

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

very good - acc. to DIN VDE 0207 part 5

Characteristic impedance

120 Ω (95 - 140 Ω)

Flexibility

good

Application in cable tracks

not recommended

Weather resistance

medium

UL Style

2464

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø ± 5% Copper figure Cable weight ≈
L062722512 x 0,25 mm²6,1 mm19 kg/km44 kg/km Send inquiry
L062723412 x 0,34 mm²6,4 mm21,8 kg/km48 kg/km Send inquiry
L062725012 x 0,50 mm²7,7 mm28,4 kg/km67 kg/km Send inquiry
L062727512 x 0,75 mm²9,6 mm39,6 kg/km91 kg/km Send inquiry
L062742512 x 2 x 0,25 mm²7,3 mm27,4 kg/km61 kg/km Send inquiry
L062743412 x 2 x 0,34 mm²7,7 mm33,5 kg/km67 kg/km Send inquiry
L062745012 x 2 x 0,50 mm²9,8 mm44,4 kg/km104 kg/km Send inquiry
L062747512 x 2 x 0,75 mm²13,5 mm80,8 kg/km179 kg/km Send inquiry
item no.
Dimension
Outer-ø ± 5%
Copper figure
Cable weight ≈
L06272251
2 x 0,25 mm²
6,1 mm
19 kg/km
44 kg/km
L06272341
2 x 0,34 mm²
6,4 mm
21,8 kg/km
48 kg/km
L06272501
2 x 0,50 mm²
7,7 mm
28,4 kg/km
67 kg/km
L06272751
2 x 0,75 mm²
9,6 mm
39,6 kg/km
91 kg/km
L06274251
2 x 2 x 0,25 mm²
7,3 mm
27,4 kg/km
61 kg/km
L06274341
2 x 2 x 0,34 mm²
7,7 mm
33,5 kg/km
67 kg/km
L06274501
2 x 2 x 0,50 mm²
9,8 mm
44,4 kg/km
104 kg/km
L06274751
2 x 2 x 0,75 mm²
13,5 mm
80,8 kg/km
179 kg/km

Other dimensions and colours are possible on request.
