BiZ

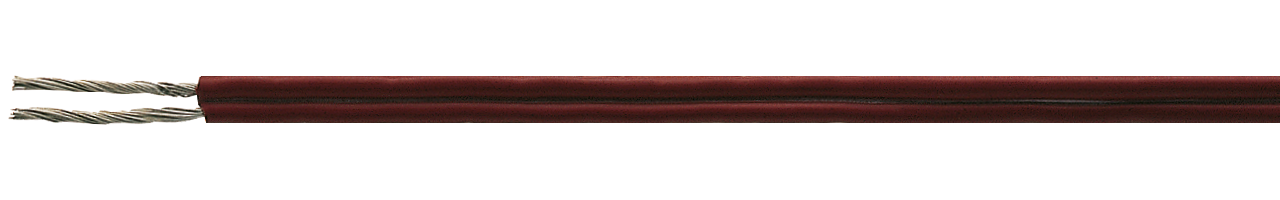

Twin cable

Application

The BiZ is a halogen-free, silicone twin cable that is flexible at low temperatures. It is especially applied in smelteries, steelworks, and hot-rolling mills, in cement, glass, and ceramic factories, or for the internal wiring of lamps and heating appliances.

Outstanding features

halogen-free
flexible at low temeperatures
heat resistant

Construction

Conductor	tinned copper strands acc. to IEC 60228, VDE 0295, class 5
Insulation	Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
Sheath colour	reddish brown (similar RAL 3016)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Sheath colour

reddish brown (similar RAL 3016)

Technical data

Nominal voltage	Uo/U 300/300 V
Testing voltage	1500 V
Min. bending radius	5 x d
Radiation resistance	2 x 10^7 cJ/kg
Temperature range	fixed laying: -40/+180°C flexible application: -25/+180°C short-time use: +250°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Corrosiveness of conflagration gases	IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Chem. resistance	see "Technical Data" - Chemical resistance
Weather resistance	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/300 V

Testing voltage

1500 V

Min. bending radius

5 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Chem. resistance

see "Technical Data" - Chemical resistance

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Dimension	Copper figure	Cable weight ≈
L01020205	2 x 0,50 mm²	0,21 mm	4,2 mm x 2,1 mm	9,6 kg/km	17 kg/km	Send inquiry
L01020207	2 x 0,75 mm²	0,21 mm	4,8 mm x 2,4 mm	14,4 kg/km	23 kg/km	Send inquiry

item no.

No. of cores x
cross section

Largest single
wire-ø

Dimension

Copper figure

Cable weight ≈

L01020205

2 x 0,50 mm²

0,21 mm

4,2 mm x 2,1 mm

9,6 kg/km

17 kg/km

Send inquiry

L01020207

2 x 0,75 mm²

0,21 mm

4,8 mm x 2,4 mm

14,4 kg/km

23 kg/km
