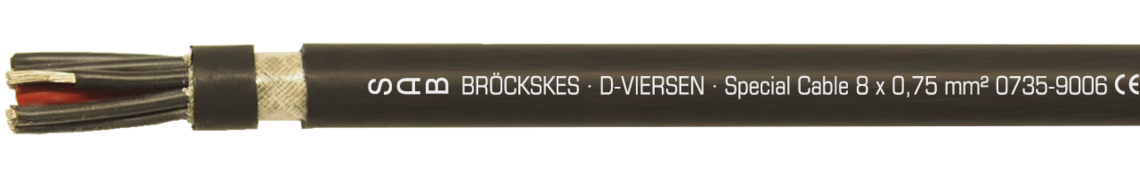

SAB Pyro 735

halogen-free fireproof installation cable

Application

Fireproof installation cable for the fireproof installation of lamps and lighting in the interior of buildings. This fire-resistant and halogen-free cable is acc. to EN 50200, classification PH30. Depending on the area of application and customer requirements, we develop cables and wires specifically for your area of application and according to your technical specifications.

Outstanding features

very good flexibility
halogen-free
no development of corrosive conflagration gases
fireproof PH 30

Construction

Conductor	tinned copper strands, fine wires acc. to IEC 60228, EN 60228, VDE 0295, class 5
Insulation	Besilen®
Colour code	black cores with consecutive numbers
Stranding	in layers
Wrapping	mica tape
Sheath material	SABIX®
Sheath colour	black (similar RAL 9005)

Conductor

tinned copper strands, fine wires acc. to IEC 60228, EN 60228, VDE 0295, class 5

Insulation

Besilen®

Colour code

black cores with consecutive numbers

Stranding

in layers

Wrapping

mica tape

Sheath material

SABIX®

Sheath colour

black (similar RAL 9005)

Technical data

Nominal voltage	Uo/U 300/500 V
Testing voltage	core/core 2000 V
Min. bending radius	fixed laying: 10 x d
Temperature range	during installation: -25/+90 °C fixed laying: -40/+90 °C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Fire performance	acc. to EN 50200, Classification PH 30
Corrosiveness of conflagration gases	in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases
Absence of harmful substances	acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

fixed laying: 10 x d

Temperature range

during installation: -25/+90 °C

fixed laying: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

acc. to EN 50200, Classification PH 30

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Approx. outer-ø	Copper figure	Cable weight ≈	Ohmic resistance at 20°C max.
L07359006	8 x 0,75 mm²	10,1 mm	57,6 kg	156 kg	26,7 Ω/km	Send inquiry

item no.

No. of cores x
cross section

Approx. outer-ø

Copper figure

Cable weight ≈

Ohmic resistance
at 20°C max.

L07359006

8 x 0,75 mm²

10,1 mm

57,6 kg

156 kg

26,7 Ω/km

Send inquiry

Other dimensions and colours are possible on request.
