RT PN 668
Profinet cable type R suitable for robots

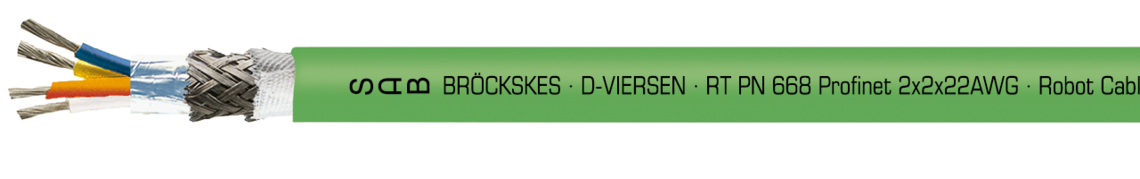

Marking for RT PN 668 06689001: SAB BRÖCKSKES · D-VIERSEN · RT PN 668 Profinet 2x2x22AWG · Robot cable · CE
Application
CAT 5 Profinet cable type R with a minimum bending radius of 5 x d. This robotic cable is oil-resistant, halogen-free and can be twisted up to ± 180°/m. The characteristic impedance is 100Ω ± 10Ω. This Profinet cable meets the electrical and transmission requirements for high frequency in accordance with EN 50288-2-2 + VDE 0819-2-2 (CAT 5 according to EN 50173-1).
Outstanding features
- suitable for robots
- halogen-free
- very good oil resistance
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 2 x 2 x 22 AWG |
|---|---|
| Conductor | tinned copper strands, extra fine wires |
| Insulation | PE |
| Colour code | blue, yellow, white, orange |
| Stranding | in layers |
| Wrapping | netting tape, alu foil |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
2 x 2 x 22 AWG
tinned copper strands, extra fine wires
PE
blue, yellow, white, orange
in layers
netting tape, alu foil
tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max 350 V |
|---|---|
| Testing voltage | core/core: 1500 V core/screen: 1200 V |
| Min. bending radius | fixed laying: 5 x d flexible application 10 x d |
| Temperature range | VDE fixed laying: -40/+70 °C VDE flexible application: -30/+70 °C |
| Torsion angle | +/- 180°/m |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1) |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max 350 V
core/core: 1500 V
core/screen: 1200 V
fixed laying: 5 x d
flexible application 10 x d
VDE fixed laying: -40/+70 °C
VDE flexible application: -30/+70 °C
+/- 180°/m
acc. to IEC 60754-1 + VDE 0482-754-1
TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C acc. to VDE 0812 max. Ω/km | |
|---|---|---|---|---|---|---|
| L06689001 | 2 x 2 x 22 AWG | 7 mm | 36,3 kg/km | 62 kg/km | 58 | Send inquiry |
at 20°C acc. to VDE 0812
max. Ω/km
Other dimensions and colours are possible on request.
