SABclean RT 123 D TP (B)

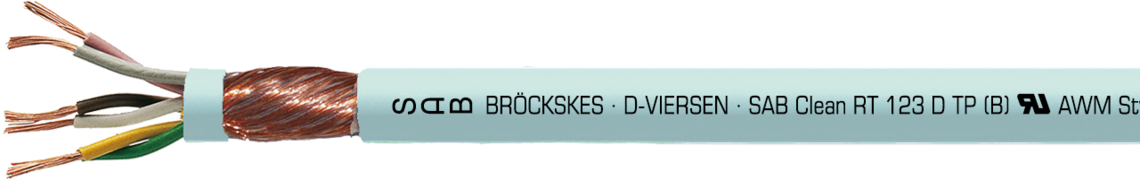

torsional data cable with twisted pairs and overall copper screen

Marking for SABclean RT 123 D TP (B) 37939001: SAB BRÖCkSKES · D-VIERSEN · SAB Clean RT 123 D TP (B) UL AWM Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 37939001 CE

Marking for SABclean RT 123 D TP (B) 37939001: SAB BRÖCkSKES · D-VIERSEN · SAB Clean RT 123 D TP (B) UL AWM Style 20233 80°C 300V CSA AWM I/II A/B 80°C 300V FT1 FT2 37939001 CE

Application

Highly flexible data cable for robotic applications with TPE sheath for use in cleanrooms. The robust robot data cable with UL/CSA can be used with a torsion angle up to ±450° per 1 m. Dimensions as well as colours can be adapted individually according to customer requirements. Please contact us directly.

Outstanding features

  • rugged and reliable
  • torsion angle up to ± 450° over 1 m

Additional information

Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1

Construction

Conductor

bare copper strands, extra fine wire, with reference to VDE 0812

Insulation

TPE

Colour code

colour code US 2

Stranding

cores twisted to pairs in specially adjusted layering

Wrapping

netting tape, non-woven tape

Screen

wrapped with bare copper wires

Drain wire

bare copper strands, extra fine wire 0,34 mm²

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

whitegreen (RAL 6019)

Conductor

bare copper strands, extra fine wire, with reference to VDE 0812

Insulation

TPE

Colour code

colour code US 2

Stranding

cores twisted to pairs in specially adjusted layering

Wrapping

netting tape, non-woven tape

Screen

wrapped with bare copper wires

Drain wire

bare copper strands, extra fine wire 0,34 mm²

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

whitegreen (RAL 6019)

Technical data

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Torsion angle

up to ± 450°/1 m

Min. bending radius

continuously flexible 7,5 x d

Temperature range

DIN VDE:

fixed laying: -50/+70 °C

flexible application: -40/+70 °C



UL/CSA: up to +80 °C

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL/CSA

300 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Torsion angle

up to ± 450°/1 m

Min. bending radius

continuously flexible 7,5 x d

Temperature range

DIN VDE:

fixed laying: -50/+70 °C

flexible application: -40/+70 °C



UL/CSA: up to +80 °C

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
on request.3 x 2 x 0,34 mm²0,11 mm7,7 mm37,7 kg/km69 kg/km Send inquiry
on request..4 x 2 x 0,34 mm²0,11 mm8,6 mm44,5 kg/km82 kg/km Send inquiry
item no.
No. of pairs x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
on request.
3 x 2 x 0,34 mm²
0,11 mm
7,7 mm
37,7 kg/km
69 kg/km
on request..
4 x 2 x 0,34 mm²
0,11 mm
8,6 mm
44,5 kg/km
82 kg/km

Other dimensions and colours are possible on request.
