SABclean RT 793 D

torsional control cable with twisted pairs and overall copper screen

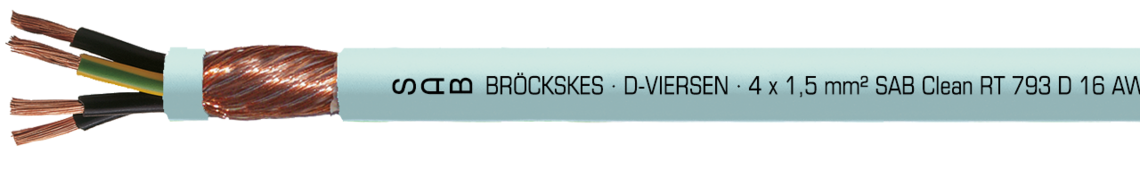

Marking for SABclean RT 793 D 37930415: SAB BRÖCKSKES · D-VIERSEN · 4 x 1,5 mm² SAB Clean RT 793 D 16 AWG/4c 37930415 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for SABclean RT 793 D 37930415: SAB BRÖCKSKES · D-VIERSEN · 4 x 1,5 mm² SAB Clean RT 793 D 16 AWG/4c 37930415 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

This control cable for robotic applications is very robust and can be used up to a torsion angle of ± 360° per 1 m in cleanroom applications.

Outstanding features

  • rugged an reliable
  • torsion angle ± up to 360° over 1 m

Additional information

Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering

Wrapping

netting tape, non-woven tape

Screen

wrapped with bare copper wires

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

whitegreen (RAL 6019)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering

Wrapping

netting tape, non-woven tape

Screen

wrapped with bare copper wires

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

whitegreen (RAL 6019)

Technical data

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Torsion angle

up to ± 360°/1 m

Min. bending radius

continuously flexible 7,5 x d

Temperature range

DIN VDE:

fixed laying: -50/+70 °C

flexible application: -40/+70 °C



UL/CSA: up to +80 °C

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Voltage UL/CSA

600 V

Testing voltage

core/core 3000 V

core/screen 2000 V

Torsion angle

up to ± 360°/1 m

Min. bending radius

continuously flexible 7,5 x d

Temperature range

DIN VDE:

fixed laying: -50/+70 °C

flexible application: -40/+70 °C



UL/CSA: up to +80 °C

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C max.
379305055 x 0,50 mm²0,16 mm8,7 mm40,3 kg/km99 kg/km39,00 Ω/km Send inquiry
379304154 x 1,50 mm²0,16 mm9,6 mm88,3 kg/km145 kg/km13,30 Ω/km Send inquiry
3793121512 x 1,50 mm²0,16 mm14,1 mm216,4 kg/km317 kg/km13,30 Ω/km Send inquiry
379302252 x 2,50 mm²0,16 mm9,8 mm80,7 kg/km140 kg/km7,98 Ω/km Send inquiry
379304254 x 2,50 mm²0,16 mm11,0 mm130,9 kg/km192 kg/km7,98 Ω/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max.
37930505
5 x 0,50 mm²
0,16 mm
8,7 mm
40,3 kg/km
99 kg/km
39,00 Ω/km
37930415
4 x 1,50 mm²
0,16 mm
9,6 mm
88,3 kg/km
145 kg/km
13,30 Ω/km
37931215
12 x 1,50 mm²
0,16 mm
14,1 mm
216,4 kg/km
317 kg/km
13,30 Ω/km
37930225
2 x 2,50 mm²
0,16 mm
9,8 mm
80,7 kg/km
140 kg/km
7,98 Ω/km
37930425
4 x 2,50 mm²
0,16 mm
11,0 mm
130,9 kg/km
192 kg/km
7,98 Ω/km

Other dimensions and colours are possible on request.
