SABclean S 780 C
Continuous Flex Control Cable with overall copper screen

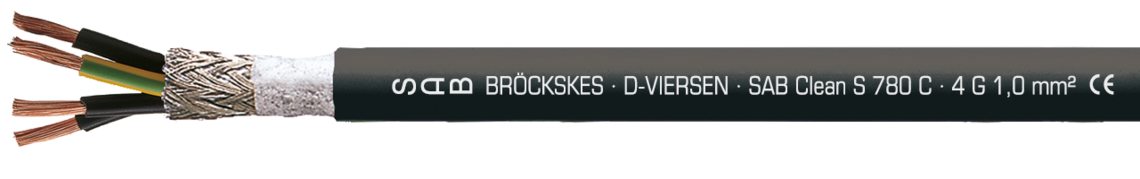

Marking for SABclean S 780 C 37800410: SAB BRÖCKSKES · D-VIERSEN · SAB Clean S 780 C · 4 G 1,0 mm² CE RoHS and current meter marking
Application
Continuous Flex Control Cable with overall copper screen with small outer diameter. The cleanroom cable is oil resistant, flexible at low temperaturees and has good EMC characteristics.
Outstanding features
- flexible at low temperatures
- high abrasion resistance
- small outer diameter
- oil resistant
- good EMC characteristics
Additional information
Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | TPE |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Stranding | specially adjusted layering |
| Wrapping | non-woven tape |
| Inner sheath | SABIX® |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | TPE |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, VDE 0295, class 6
TPE
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,
green-yellow earth wire from 3 cores
specially adjusted layering
non-woven tape
SABIX®
non-woven tape
tinned copper braiding
non-woven tape
TPE
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | 7,5 x d |
| Temperature range | fixed laying: -40/+80°C flexible application: -30/+80°C |
| Oil resistance | very good - Oil 60°C acc. to UL 758 |
| Air cleanliness class 1 | acc. to DIN EN ISO 14644-1 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 2000 V
core/screen 2000 V
7,5 x d
fixed laying: -40/+80°C
flexible application: -30/+80°C
very good - Oil 60°C acc. to UL 758
acc. to DIN EN ISO 14644-1
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|---|
| L37800305 | 3 x 0,50 mm² | 0,16 mm | 7,2 mm | 34,6 kg/km | 68 kg/km | 39,00 Ω/km | Send inquiry |
| L37800405 | 4 x 0,50 mm² | 0,16 mm | 7,6 mm | 39,8 kg/km | 76 kg/km | 39,00 Ω/km | Send inquiry |
| L37800207 | 2 x 0,75 mm² | 0,16 mm | 7,5 mm | 34,9 kg/km | 70 kg/km | 26,00 Ω/km | Send inquiry |
| L37800407 | 4 x 0,75 mm² | 0,16 mm | 8,2 mm | 51,6 kg/km | 92 kg/km | 26,00 Ω/km | Send inquiry |
| L37800210 | 2 x 1,00 mm² | 0,16 mm | 7,9 mm | 41,8 kg/km | 80 kg/km | 19,50 Ω/km | Send inquiry |
| L37800310 | 3 x 1,00 mm² | 0,16 mm | 8,2 mm | 51,6 kg/km | 92 kg/km | 19,50 Ω/km | Send inquiry |
| L37800410 | 4 x 1,00 mm² | 0,16 mm | 8,9 mm | 64,6 kg/km | 113 kg/km | 19,50 Ω/km | Send inquiry |
| L37800315 | 3 x 1,50 mm² | 0,16 mm | 9,0 mm | 69,4 kg/km | 118 kg/km | 13,30 Ω/km | Send inquiry |
| L37800415 | 4 x 1,50 mm² | 0,16 mm | 9,6 mm | 84,5 kg/km | 138 kg/km | 13,30 Ω/km | Send inquiry |
| L37800425 | 4 x 2,50 mm² | 0,16 mm | 11,7 mm | 148,3 kg/km | 216 kg/km | 7,98 Ω/km | Send inquiry |
| L37800440 | 4 x 4,00 mm² | 0,16 mm | 13,9 mm | 215,5 kg/km | 313 kg/km | 4,95 Ω/km | Send inquiry |
cross section
wire-ø
at 20°C max.
Other dimensions and colours are possible on request.
