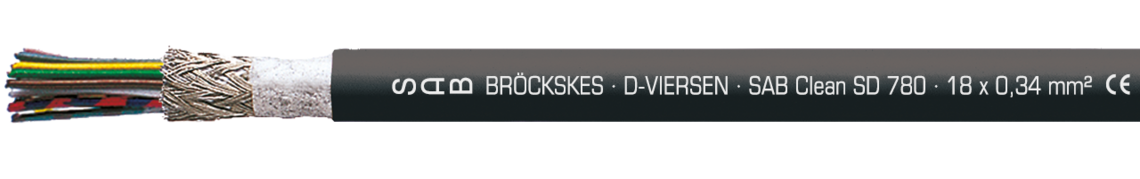

SABclean SD 780 C

Continuous Flex Data Cable with overall copper screen

Marking for SABclean SD 780 C 37801803: SAB BRÖCKSKES · D-VIERSEN · SAB Clean SD 780 · 18 x 0,34 mm² CE RoHS and current meter marking

Marking for SABclean SD 780 C 37801803: SAB BRÖCKSKES · D-VIERSEN · SAB Clean SD 780 · 18 x 0,34 mm² CE RoHS and current meter marking

Application

Continuously flexible data cable with small outer diameter. This cable is oil resistant and flexible at low temperatures. Due to the overall copper screen, the cable has good EMC characteristics.

Outstanding features

  • flexible at low temperatures
  • high abrasion resistance
  • small outer diameter
  • oil resistant
  • good EMC characteristics

Additional information

Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1

Construction

Conductor

bare copper strands, extra fine wire

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

black (RAL 9005)

Conductor

bare copper strands, extra fine wire

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+80°C

flexible application: -30/+80°C

Oil resistance

very good - Oil 60°C acc. to UL 758

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+80°C

flexible application: -30/+80°C

Oil resistance

very good - Oil 60°C acc. to UL 758

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C max.
L378003052 x 0,14 mm²0,11 mm4,3 mm13,4 kg/km25 kg/km139,3 Ω/km Send inquiry
L378004053 x 0,14 mm²0,11 mm4,4 mm14,8 kg/km27 kg/km139,3 Ω/km Send inquiry
L378002073 x 0,25 mm²0,11 mm4,8 mm18,3 kg/km32 kg/km78,0 Ω/km Send inquiry
L378004074 x 0,25 mm²0,11 mm5,0 mm20,8 kg/km36 kg/km78,0 Ω/km Send inquiry
L378002103 x 0,34 mm²0,11 mm5,0 mm21,0 kg/km35 kg/km57,4 Ω/km Send inquiry
L378003105 x 0,34 mm²0,11 mm5,6 mm31,8 kg/km51 kg/km57,4 Ω/km Send inquiry
L378004107 x 0,34 mm²0,11 mm6,3 mm39,2 kg/km62 kg/km57,4 Ω/km Send inquiry
L3780031510 x 0,34 mm²0,11 mm7,2 mm52,8 kg/km77 kg/km57,4 Ω/km Send inquiry
L3780041518 x 0,34 mm²0,11 mm8,4 mm84,6 kg/km117 kg/km57,4 Ω/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max.
L37800305
2 x 0,14 mm²
0,11 mm
4,3 mm
13,4 kg/km
25 kg/km
139,3 Ω/km
L37800405
3 x 0,14 mm²
0,11 mm
4,4 mm
14,8 kg/km
27 kg/km
139,3 Ω/km
L37800207
3 x 0,25 mm²
0,11 mm
4,8 mm
18,3 kg/km
32 kg/km
78,0 Ω/km
L37800407
4 x 0,25 mm²
0,11 mm
5,0 mm
20,8 kg/km
36 kg/km
78,0 Ω/km
L37800210
3 x 0,34 mm²
0,11 mm
5,0 mm
21,0 kg/km
35 kg/km
57,4 Ω/km
L37800310
5 x 0,34 mm²
0,11 mm
5,6 mm
31,8 kg/km
51 kg/km
57,4 Ω/km
L37800410
7 x 0,34 mm²
0,11 mm
6,3 mm
39,2 kg/km
62 kg/km
57,4 Ω/km
L37800315
10 x 0,34 mm²
0,11 mm
7,2 mm
52,8 kg/km
77 kg/km
57,4 Ω/km
L37800415
18 x 0,34 mm²
0,11 mm
8,4 mm
84,6 kg/km
117 kg/km
57,4 Ω/km

Other dimensions and colours are possible on request.
