SABclean SD 787 C TP

Continuous Flex Data Cable with twisted pairs and overall copper screen

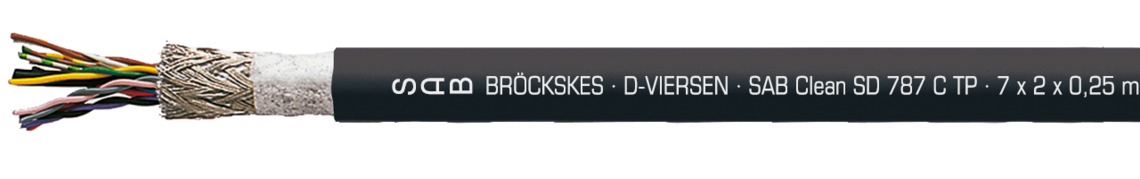

Marking for SABclean SD 787 C TP 37810725: SAB BRÖCKSKES · D-VIERSEN · SAB Clean SD 787 C TP · 7 x 2 x 0,25mm² CE RoHS

Marking for SABclean SD 787 C TP 37810725: SAB BRÖCKSKES · D-VIERSEN · SAB Clean SD 787 C TP · 7 x 2 x 0,25mm² CE RoHS

Application

Continuous flex data cable with twisted pairs and overall copper screen is flexible at low temperatures. This cleanroom wire with small diameter is oil resistant and has good EMC characteristics.

Outstanding features

  • flexible at low temperatures
  • high abrasion resistance
  • small outer diameter
  • oil resistant
  • good EMC characteristics

Additional information

Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1

Construction

Conductor

tinned copper strands, extra fine wire with reference to VDE 0812

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs in specially adjusted layering

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

black (RAL 9005)

Conductor

tinned copper strands, extra fine wire with reference to VDE 0812

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs in specially adjusted layering

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

TPE

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+80°C

flexible application: -30/+80°C

Oil resistance

very good - Oil 60°C acc. to UL 758

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+80°C

flexible application: -30/+80°C

Oil resistance

very good - Oil 60°C acc. to UL 758

Air cleanliness class 1

acc. to DIN EN ISO 14644-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈ Ohmic resistance
at 20°C max.
378102252 x 2 x 0,25 mm²0,11 mm5,5 mm25,2 kg/km45 kg/km80,0 Ω/km Send inquiry
378103253 x 2 x 0,25 mm²0,11 mm6,1 mm30,7 kg/km53 kg/km80,0 Ω/km Send inquiry
378104254 x 2 x 0,25 mm²0,11 mm39,1 mm39,1 kg/km67 kg/km80,0 Ω/km Send inquiry
378105255 x 2 x 0,25 mm²0,11 mm44,5 mm44,5 kg/km78 kg/km80,0 Ω/km Send inquiry
378106256 x 2 x 0,25 mm²0,11 mm49,6 mm49,6 kg/km86 kg/km80,0 Ω/km Send inquiry
378107257 x 2 x 0,25 mm²0,11 mm56,3 mm56,3 kg/km99 kg/km80,0 Ω/km Send inquiry
348108258 x 2 x 0,25 mm²0,11 mm65,0 mm65,0 kg/km125 kg/km80,0 Ω/km Send inquiry
3781122512 x 2 x 0,25 mm²0,11 mm104,3 mm104,3 kg/km158 kg/km80,0 Ω/km Send inquiry
378108508 x 2 x 0,50 mm²0,11 mm129,7 mm129,7 kg/km211 kg/km40,1 Ω/km Send inquiry
item no.
No. of pairs x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max.
37810225
2 x 2 x 0,25 mm²
0,11 mm
5,5 mm
25,2 kg/km
45 kg/km
80,0 Ω/km
37810325
3 x 2 x 0,25 mm²
0,11 mm
6,1 mm
30,7 kg/km
53 kg/km
80,0 Ω/km
37810425
4 x 2 x 0,25 mm²
0,11 mm
39,1 mm
39,1 kg/km
67 kg/km
80,0 Ω/km
37810525
5 x 2 x 0,25 mm²
0,11 mm
44,5 mm
44,5 kg/km
78 kg/km
80,0 Ω/km
37810625
6 x 2 x 0,25 mm²
0,11 mm
49,6 mm
49,6 kg/km
86 kg/km
80,0 Ω/km
37810725
7 x 2 x 0,25 mm²
0,11 mm
56,3 mm
56,3 kg/km
99 kg/km
80,0 Ω/km
34810825
8 x 2 x 0,25 mm²
0,11 mm
65,0 mm
65,0 kg/km
125 kg/km
80,0 Ω/km
37811225
12 x 2 x 0,25 mm²
0,11 mm
104,3 mm
104,3 kg/km
158 kg/km
80,0 Ω/km
37810850
8 x 2 x 0,50 mm²
0,11 mm
129,7 mm
129,7 kg/km
211 kg/km
40,1 Ω/km

Other dimensions and colours are possible on request.
