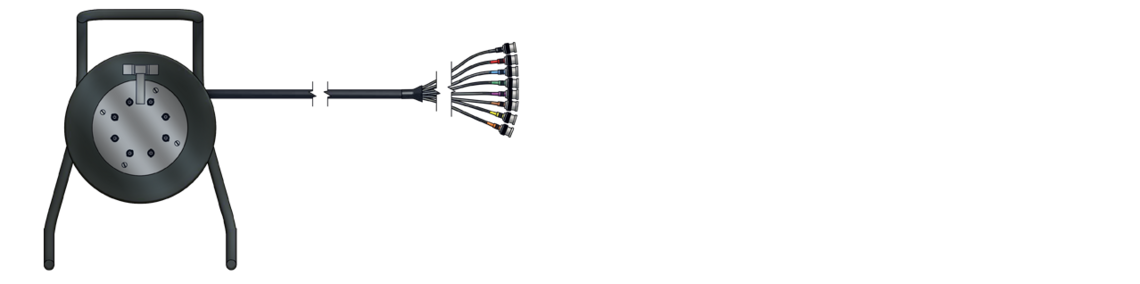

coax cable drum
with 8x BNC installation socket and a wound up 8-fold collection cable with 8xBNC male connector
Application
collection cable for a structured and proper laying for example at a test bench
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example internal material number or barcode
Connector
| Side 1 | cable drum with 8x BNC installation sockets |
|---|---|
| Side 2 | 8x BNC male connector |
Side 1
cable drum with 8x BNC installation sockets
Side 2
8x BNC male connector
Cable data
| construction | 8 x AWG 26 |
|---|---|
| Insulation | TPFP |
| Inner sheath | TPE |
| Outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 11,6 mm |
| operating voltage | max. 900 V |
| temperature range | -50°C / +90°C (short-time use +125°C 2500h) |
construction
8 x AWG 26
Insulation
TPFP
Inner sheath
TPE
Outer sheath
PUR
sheath colour
black
outer diameter
approx. 11,6 mm
operating voltage
max. 900 V
temperature range
-50°C / +90°C (short-time use +125°C 2500h)
Konfigurationsbeispiel
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3600-4078-03000 | PUR | 3000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB Kennzeichnung: Artikelnummer, Chargennummer
