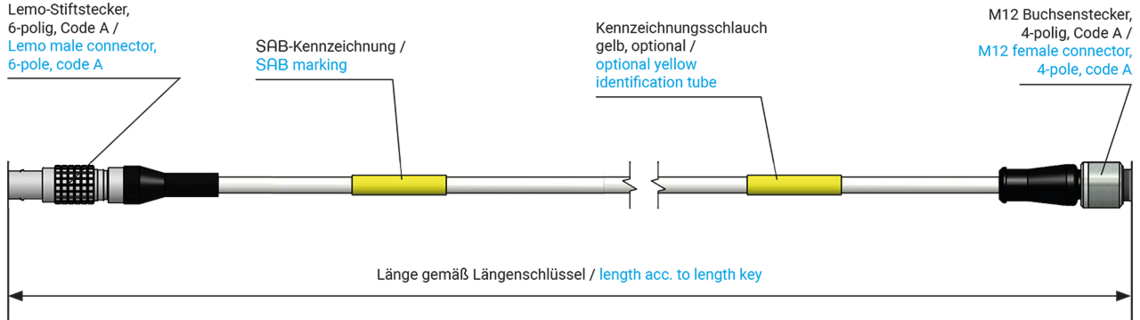

Connection cable
with Lemo male connector, 6-pole and moulded M12 female connector, 4-pole (for example pressure sensors)
Application
sensor cable for the connection to pressure sensors with M12 reception
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example internal material number or barcode
Connector
| side 1 | Lemo male connector, 6-pole, code A |
|---|---|
| side 2 | moulded M12 female connector, 4-pole, code A |
side 1
Lemo male connector, 6-pole, code A
side 2
moulded M12 female connector, 4-pole, code A
Cable data
| construction | 4 x AWG 22 |
|---|---|
| insulation | TPFP |
| outer sheath | TPFP |
| sheath colour | white |
| outer diameter | approx. 3,7 mm |
| operating voltage | max. 375 V |
| temperature range | -55°C / +180°C |
construction
4 x AWG 22
insulation
TPFP
outer sheath
TPFP
sheath colour
white
outer diameter
approx. 3,7 mm
operating voltage
max. 375 V
temperature range
-55°C / +180°C
Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3833-4641-00300 | TPFP | 3000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
