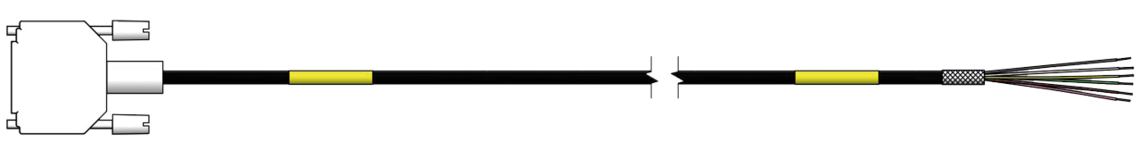

Connection cable
with SUB-D male connector and stripped ends (for strain gauges)
Application
sensor cable for the connection of strain gauges
Additional information
- Further service aspects: Individual marking by shrinkable sleeve as for example internal material number or barcode
- Also possible with TEDS
Connector
| side 1 | SUB-D male connector 15-pin |
|---|---|
| side 2 | 50 mm stripped ends + 5 mm bare |
side 1
SUB-D male connector 15-pin
side 2
50 mm stripped ends + 5 mm bare
Cable data
| construction | 3 x 2 x 0,14 mm² (tinned copper strands) |
|---|---|
| insulation | TPFP |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 4,6 mm |
| operating voltage | max. 375 V |
| temperature range | -50°C / +90°C (+125°C 2500h) |
| wire circuit of strain gauge | whether quarter, half of full bridge application – we respect your requirements. |
construction
3 x 2 x 0,14 mm² (tinned copper strands)
insulation
TPFP
outer sheath
PUR
sheath colour
black
outer diameter
approx. 4,6 mm
operating voltage
max. 375 V
temperature range
-50°C / +90°C (+125°C 2500h)
wire circuit of strain gauge
whether quarter, half of full bridge application – we respect your requirements.

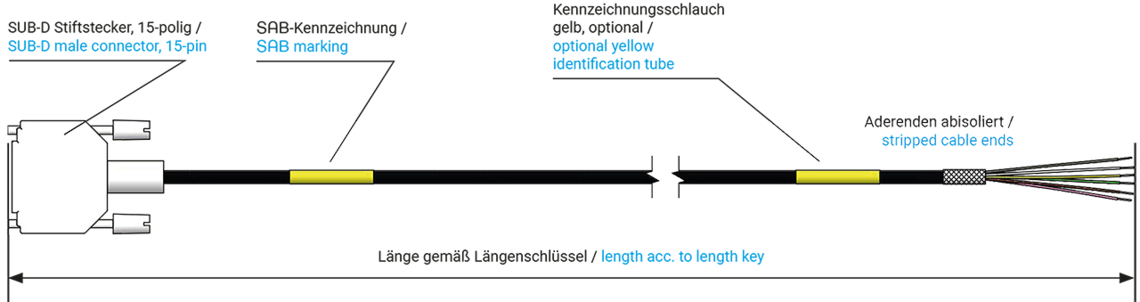

Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3833-4419-00250 | PUR | 2500 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
