Extension cable
with Lemo male connector and female connector, 9-pole, code G
Application
for the extension of a sensor connection cable with Lemo connector 9-pole code G
Outstanding features
- resistent to high temperatures (TPFP)
- mechanically more robust (PUR)
- highest flexibility (Silicone)
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example material number or barcode
Connector
| side 1 | Lemo male connector 9-pin. code G |
|---|---|
| side 2 | Lemo female connector, 9-pole, code G |

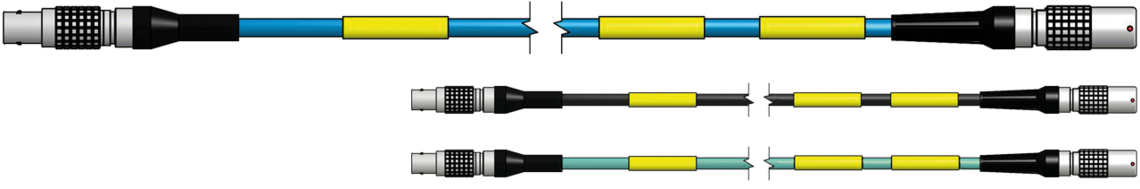

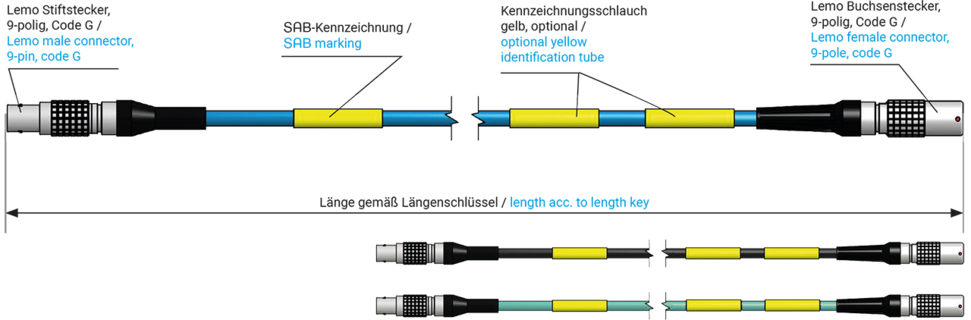

Lemo male connector 9-pin. code G
Lemo female connector, 9-pole, code G
Cable data (TPFP)
| construction | 4 x AWG 34 |
|---|---|
| insulation | TPFP |
| outer sheath | TPFP |
| sheath colour | blue |
| outer diameter | approx. 2,1 mm |
| operating voltage | max. 150 V |
| temperature range | -55°C / +250°C |
4 x AWG 34
TPFP
TPFP
blue
approx. 2,1 mm
max. 150 V
-55°C / +250°C
Cable data (PUR)
| construction | 4 x AWG 34 |
|---|---|
| insulation | TPFP |
| outer sheath | PUR |
| sheath colour | black |
| outer diameter | approx. 2,5 mm |
| operating voltage | max. 150 V |
| temperature range | -40°C / +90°C (+125°C 2500h) |
4 x AWG 34
TPFP
PUR
black
approx. 2,5 mm
max. 150 V
-40°C / +90°C (+125°C 2500h)
Cable data (Silicone)
| construction | 4 x AWG 30 |
|---|---|
| insulation | TPFP |
| outer sheath | Silicone |
| sheath colour | turquoise |
| outer diameter | approx. 2,7 mm |
| operating voltage | max. 150 V |
| temperature range | -25°C / +180°C |
4 x AWG 30
TPFP
Silicone
turquoise
approx. 2,7 mm
max. 150 V
-25°C / +180°C
Configuration examples
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3031-4041-00300 | TPFP | 3000 | Send inquiry |
| S3032-4041-00300 | PUR | 3000 | Send inquiry |
| S3033-4041-00300 | Silicone | 3000 | Send inquiry |
SAB identification: item number, batch number
