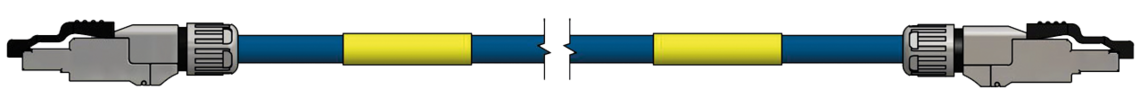

Patch cable CAT6A
with RJ 45 male connectors on both sides
Application
PC connection element
Outstanding features
male connector:
- mechanically robust
- cold resistant up to -55°C
Additional information
Further service aspects:
Individual marking by shrinkable sleeve as for example internal material number or barcode
Connector
| side 1 | RJ 45 male connector, heavy load, CAT6A |
|---|---|
| side 2 | RJ 45 male connector, heavy load, CAT6A |
side 1
RJ 45 male connector, heavy load, CAT6A
side 2
RJ 45 male connector, heavy load, CAT6A
Cable data
| construction | 4 x 2 x AWG26 |
|---|---|
| insulation | TPFP |
| outer sheath | PUR |
| sheath colour | blue |
| outer diameter | approx. 6,1 mm |
| operating voltage | max. 90 V |
| temperature range | -55°C / +125°C (+150°C) |
construction
4 x 2 x AWG26
insulation
TPFP
outer sheath
PUR
sheath colour
blue
outer diameter
approx. 6,1 mm
operating voltage
max. 90 V
temperature range
-55°C / +125°C (+150°C)

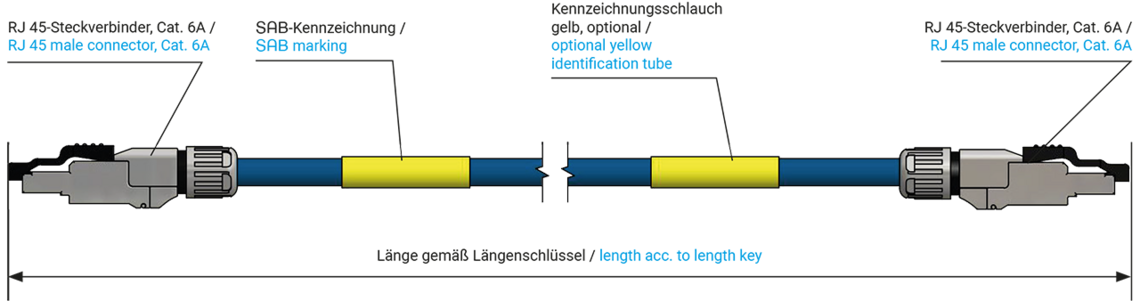

Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S1631-4017-0010 | PUR | 1000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
