Sensor charge cable
with female connector ¼-28 UNF, 4-pole and 3 x Microdot male connector 10-32 UNF
Application
Sensor connection cable for triaxial acceleration sensors with charge outlet
Outstanding features
- chargeable
- resistant to high temperatures up to +250°C
Additional information
- Further service aspects: Individual marking by shrinkable sleeve as for example internal material number or barcode
- also possible with Microdot female connector
Connector
| side 1 | female connector ¼-28 UNF, 4-pole* *please indicate your sensor type! |
|---|---|
| side 2 | 3 x Microdot male connector 10-32 UNF |
side 1
female connector ¼-28 UNF, 4-pole*
*please indicate your sensor type!
side 2
3 x Microdot male connector 10-32 UNF
Cable data
| construction | 3x (1 x 0,20 mm Ø) |
|---|---|
| insulation | TPFP |
| outer sheath | TPFP |
| sheath colour | black |
| outer diameter | approx. 3,2 mm |
| operating voltage | max. 375 V |
| temperature range | -55°C / +250°C |
construction
3x (1 x 0,20 mm Ø)
insulation
TPFP
outer sheath
TPFP
sheath colour
black
outer diameter
approx. 3,2 mm
operating voltage
max. 375 V
temperature range
-55°C / +250°C

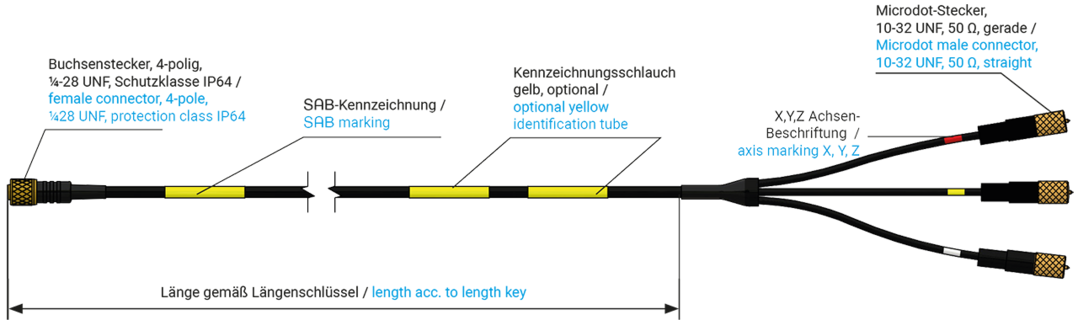

Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3041-1032-00400 | TPFP | 4000 mm | Send inquiry |
item no.
Sheath material
length "L" [mm]
SAB identification: item number, batch number
