8-fold coax multicore cable (low noise)
with 8 x BNC connector on both sides
Application
For NVH measurements with microphones and uniaxial sensors, stable and low-noise signal transmission is essential. The 8-way coax multicore cable (low noise) enables a structured and reliable connection of sensor signals to measurement systems, ensuring clear and organized cabling.
Compared to single-cable solutions, multiple coaxial lines are combined within an integrated multicore structure. This allows efficient acquisition of multiple measurement channels while reducing installation effort.
The low-noise coax cable (50 Ω) is designed for sensitive measurement signals and combines individually shielded conductors with an overall shield, ensuring high EMC performance and stable signal quality.
The PUR inner and outer jacket provides both mechanical robustness and flexibility, making the cable suitable for demanding environments. BNC connectors on both ends enable direct and secure connection to measurement equipment.
Typical applications include test benches, in-vehicle measurements and laboratory environments.
Custom configurations are available, for example regarding cable length, connectors or individual labeling (e.g. heat shrink marking or barcodes).
Outstanding features
- mechanically robust
- flexible and easy to route
- low-noise signal transmission for sensitive NVH measurements
- efficient multi-channel signal acquisition with reduced cabling effort
- customizable configurations and labeling options
Additional information
- Further service aspects: Individual marking by shrinkable sleeve as for example internal material number or barcode
- Also available as 16-fold multicore and with customised plug design
Connector
| side 1 | 8 x BNC male connector* *also available as an insulated version! |
|---|---|
| side 2 | 8 x BNC male connector* *also available as an insulated version! |
8 x BNC male connector*
*also available as an insulated version!
8 x BNC male connector*
*also available as an insulated version!
Cable data
| construction | 8 x (1 x 0,20 mm Ø)C - low noise coax 50 Ω |
|---|---|
| insulation | TPFP |
| inner sheath | PUR |
| outer sheath | PUR |
| sheath colour | dark blue |
| outer diameter | approx. 9,0 mm |
| operating voltage | max. 350 V |
| temperature range | -40°C / +90°C (short-time use +125°C 2500h) |
8 x (1 x 0,20 mm Ø)C - low noise coax 50 Ω
TPFP
PUR
PUR
dark blue
approx. 9,0 mm
max. 350 V
-40°C / +90°C (short-time use +125°C 2500h)

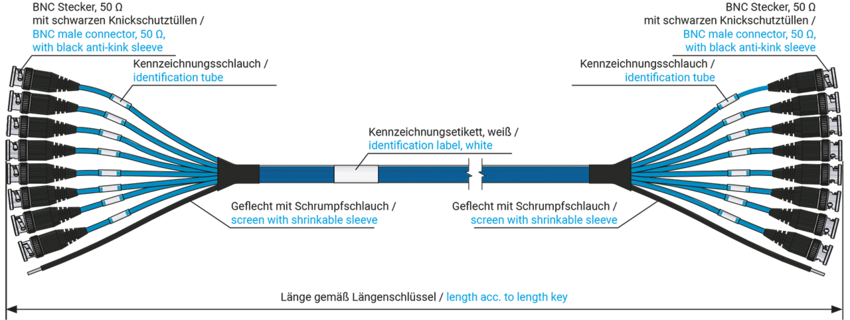

Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3055-3030-00500 | PUR | 5000 mm | Send inquiry |
SAB identification: item number, batch number
