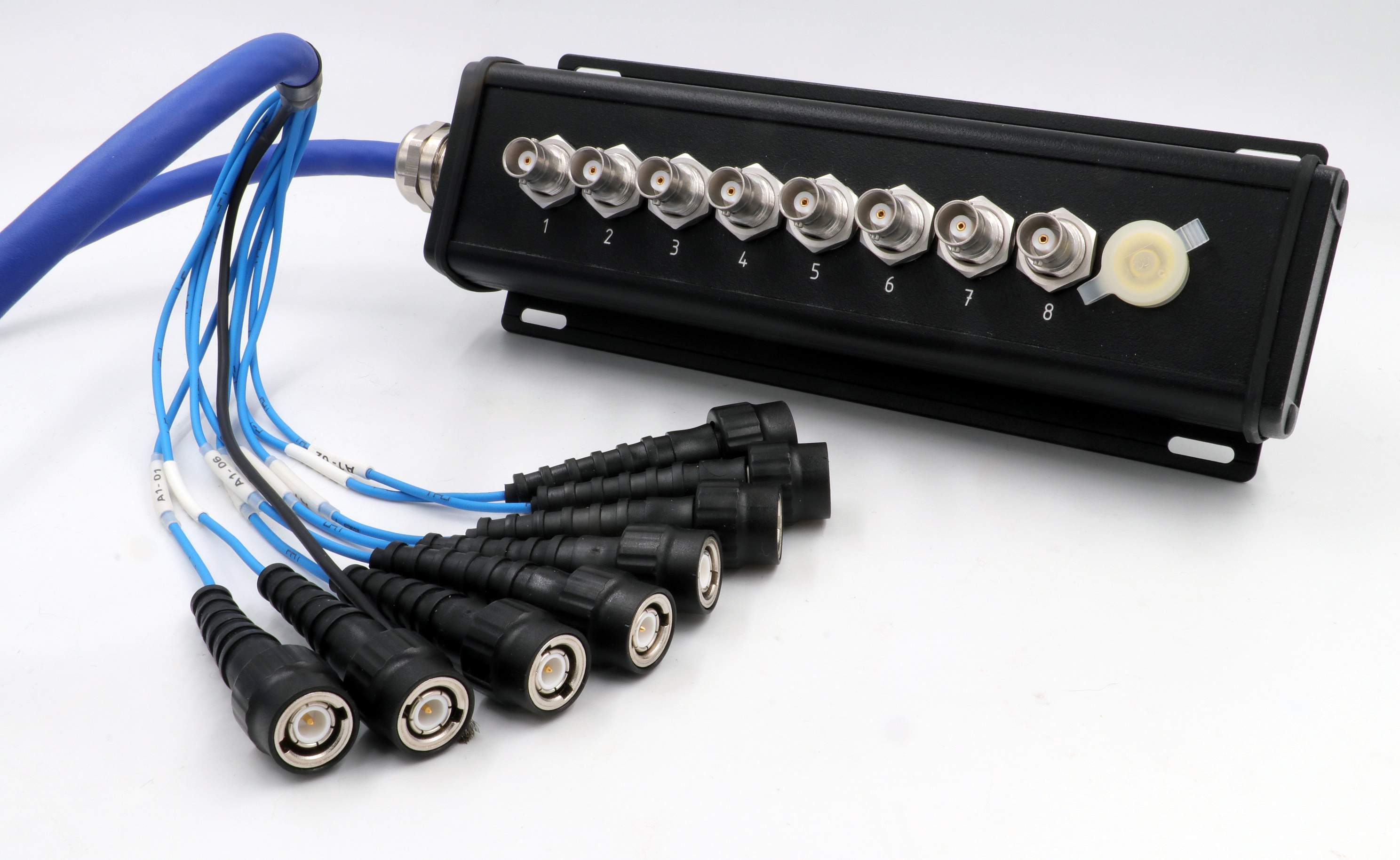

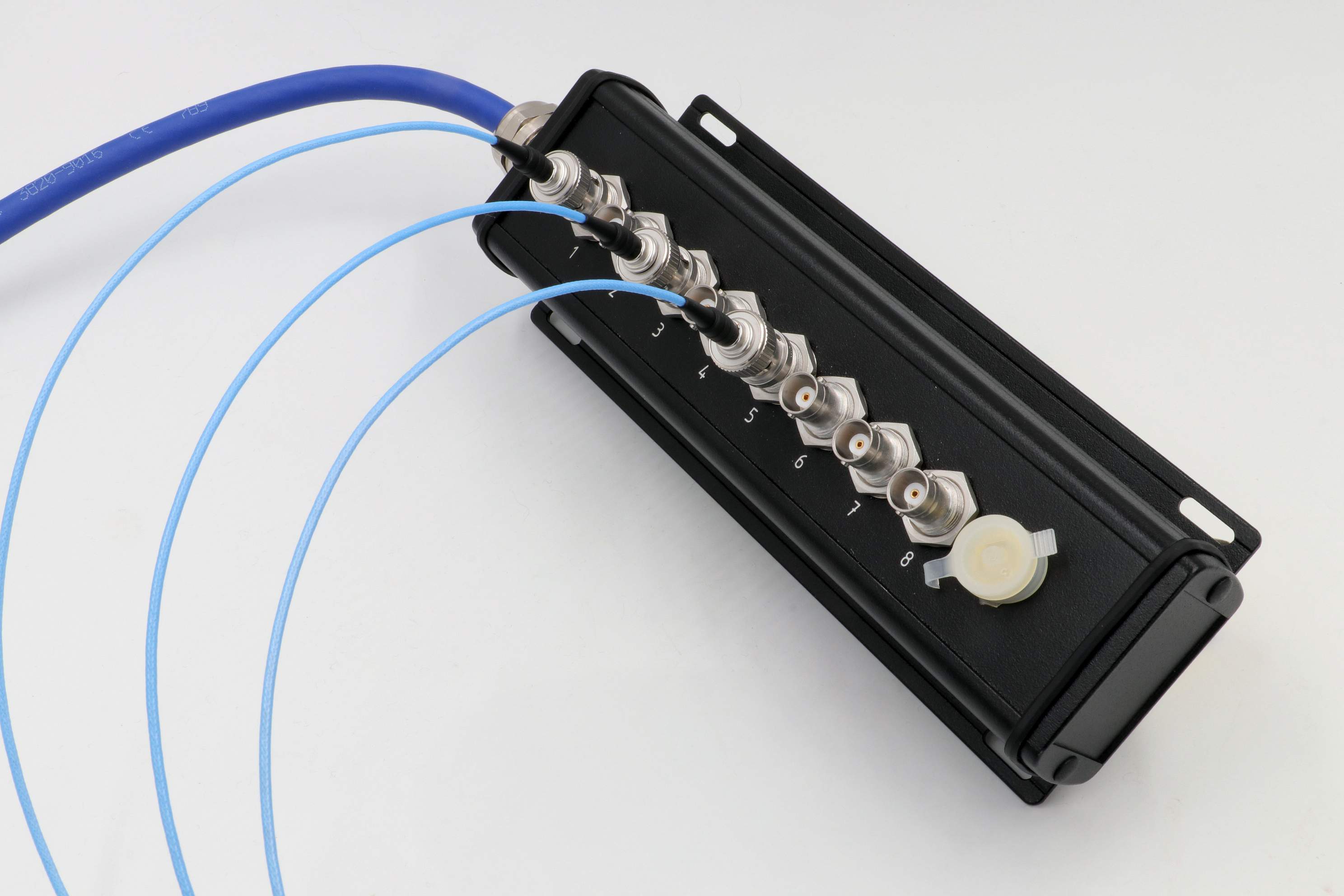

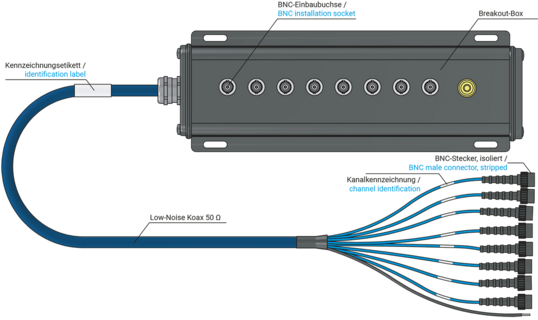

Breakout box with 8-fold coax multicore cable (low-noise)
with 8 x BNC inputs and 8 x BNC connector (stripped)
Application
For low-noise NVH measurements with microphones and uniaxial sensors, stable signal transmission is essential. The BNC breakout box with 8-way coax multicore cable is specifically designed for applications with IEPE sensors and enables a structured and reliable connection of sensor signals to measurement systems.
Unlike conventional solutions using bundled single cables, this design is based on an integrated multicore cable. The low-noise coax cable ensures noise-reduced signal transmission and combines individually shielded coaxial lines with an overall shield to improve EMC performance and mechanical stability.
The cable is highly flexible and easy to route, while the PUR jacket provides resistance to oils and chemicals. This makes the breakout box a suitable connection solution for measurement setups ranging from mobile in-vehicle testing to test benches and control cabinets.
Custom configurations are available, for example in terms of connectors and cable lengths.
Outstanding features
- mechanically robust
- flexible and easy to route
- low-noise signal transmission for NVH measurements
- high EMC performance due to individual and overall shielding
- customizable for specific measurement setups
Additional information
Also available as 4-fold multicore and with customised plug design
Connector
| side 1 | 8 x BNC device mounting sockets (with dust caps) + safety socket, yellow (screen connection) |
|---|---|
| side 2 | 8 x insulated BNC male connector |
8 x BNC device mounting sockets (with dust caps) + safety socket, yellow (screen connection)
8 x insulated BNC male connector
Cable data
| construction | 8 x (1 x 0,20 mm Ø)C - low noise coax 50 Ω |
|---|---|
| insulation | TPFP |
| inner sheath | PUR |
| outer sheath | PUR |
| sheath colour | dark blue |
| outer diameter | approx. 9,0 mm |
| operating voltage | max. 350 V |
| temperature range | -40°C / +90°C (+125°C 2500h) |
8 x (1 x 0,20 mm Ø)C - low noise coax 50 Ω
TPFP
PUR
PUR
dark blue
approx. 9,0 mm
max. 350 V
-40°C / +90°C (+125°C 2500h)
Box data
| housing | aluminium, black powder-coated |
|---|---|
| seal | TPE, black |
| protection class (applies only to the housing, not to the mounting socket) | IP65 / NEMA 3 |
| weight (without connector & cable) | approx. 285 g |
| dimension (W x H x D) | approx. 200 x 57 x 32 mm, with wall bracket: approx. 200 x 76 x 34,8 mm |
aluminium, black powder-coated
TPE, black
IP65 / NEMA 3
approx. 285 g
approx. 200 x 57 x 32 mm, with wall bracket: approx. 200 x 76 x 34,8 mm
Configuration example
| item no. | Sheath material | length "L" [mm] | |
|---|---|---|---|
| S3075-3031-00500 | PUR | 5000 mm | Send inquiry |
SAB identification: item number, batch number
