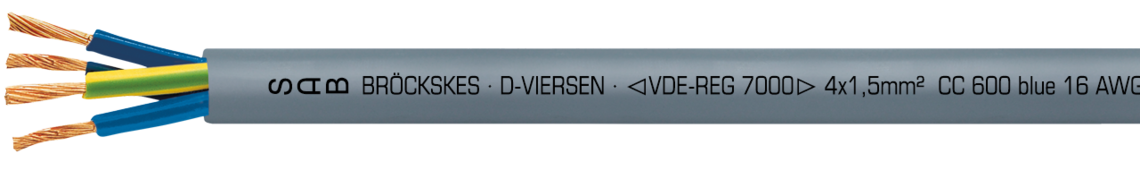

CC 600 blue (AWG 20 - AWG 10)

PVC control cable with numbered blue cores acc. to UL/CSA

Marking for CC 600 blue 02081840: SAB BRÖCKSKES · D-VIERSEN · VDE Reg.-Nr. 7000 40 x 1,0 mm² CC 600 blue 18 AWG/40c 02081840 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Marking for CC 600 blue 02081840: SAB BRÖCKSKES · D-VIERSEN · VDE Reg.-Nr. 7000 40 x 1,0 mm² CC 600 blue 18 AWG/40c 02081840 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Application

CC 600 blue is a PVC control cable with numbered blue cores and AWG 20 - AWG 10, is UL and CSA approved, and a high mechanical loading capacity. It is recommended for use in construction of service cabinets and control devices, electrical technology, installation and packaging techniques, construction of textile machines, wood working machines and machine tools.

Outstanding features

  • UL and CSA approved
  • high mechancal loading capacity
  • oil resistant
  • acc. to VDE-Reg. no. 7000

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special PVC acc. to VDE and UL/CSA

Colour code

blue cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special oil resistant PVC acc. to VDE and UL/CSA

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special PVC acc. to VDE and UL/CSA

Colour code

blue cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Sheath material

special oil resistant PVC acc. to VDE and UL/CSA

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70 °C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 3000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70 °C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1,

Oil 60 °C acc. to UL 758, Fuel Oil acc. to CSA-C 22.2 No. 210

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
020820022 x 20 AWG0,21 mm5,3 mm9,6 kg/km41 kg/km Send inquiry
020820033 x 20 AWG0,21 mm5,6 mm14,4 kg/km48 kg/km Send inquiry
020820044 x 20 AWG0,21 mm6 mm19,2 kg/km57 kg/km Send inquiry
020820055 x 20 AWG0,21 mm6,7 mm24 kg/km70 kg/km Send inquiry
020820077 x 20 AWG0,21 mm7,2 mm33,6 kg/km86 kg/km Send inquiry
020820088 x 20 AWG0,21 mm8,5 mm38,4 kg/km108 kg/km Send inquiry
0208201010 x 20 AWG0,21 mm9,4 mm48 kg/km126 kg/km Send inquiry
0208201212 x 20 AWG0,21 mm9,7 mm57,6 kg/km143 kg/km Send inquiry
0208201414 x 20 AWG0,21 mm10,1 mm67,2 kg/km161 kg/km Send inquiry
0208201616 x 20 AWG0,21 mm10,9 mm76,8 kg/km186 kg/km Send inquiry
0208201818 x 20 AWG0,21 mm11,4 mm86,4 kg/km205 kg/km Send inquiry
0208202525 x 20 AWG0,21 mm13,9 mm120 kg/km282 kg/km Send inquiry
0208203030 x 20 AWG0,21 mm14,3 mm144 kg/km232 kg/km Send inquiry
0208203434 x 20 AWG0,21 mm15,6 mm163,2 kg/km370 kg/km Send inquiry
0208204040 x 20 AWG0,21 mm16,9 mm192 kg/km435 kg/km Send inquiry
0208206161 x 20 AWG0,21 mm19,8 mm292,8 kg/km628 kg/km Send inquiry
020819033 x 19 AWG0,21 mm6,2 mm21,6 kg/km60 kg/km Send inquiry
020819044 x 19 AWG0,21 mm6,7 mm28,8 kg/km71 kg/km Send inquiry
020819055 x 19 AWG0,21 mm7,5 mm36 kg/km89 kg/km Send inquiry
020819077 x 19 AWG0,21 mm8,2 mm50,4 kg/km111 kg/km Send inquiry
020819088 x 19 AWG0,21 mm9,6 mm57,6 kg/km136 kg/km Send inquiry
0208191010 x 19 AWG0,21 mm10,6 mm72 kg/km161 kg/km Send inquiry
0208191212 x 19 AWG0,21 mm10,9 mm86,4 kg/km182 kg/km Send inquiry
0208191414 x 19 AWG0,21 mm11,4 mm100,8 kg/km205 kg/km Send inquiry
0208191616 x 19 AWG0,21 mm12 mm115,2 kg/km228 kg/km Send inquiry
0208191818 x 19 AWG0,21 mm12,9 mm129,6 kg/km261 kg/km Send inquiry
0208192525 x 19 AWG0,21 mm15,6 mm180 kg/km357 kg/km Send inquiry
0208193030 x 19 AWG0,21 mm16,1 mm216 kg/km410 kg/km Send inquiry
0208193434 x 19 AWG0,21 mm17,8 mm244,8 kg/km478 kg/km Send inquiry
0208194040 x 19 AWG0,21 mm19 mm288 kg/km549 kg/km Send inquiry
0208196161 x 19 AWG0,21 mm22,8 mm439,2 kg/km824 kg/km Send inquiry
020818022 x 18 AWG0,21 mm6 mm19,2 kg/km55 kg/km Send inquiry
020818033 x 18 AWG0,21 mm6,4 mm28,8 kg/km68 kg/km Send inquiry
020818044 x 18 AWG0,21 mm7 mm38,4 kg/km82 kg/km Send inquiry
020818055 x 18 AWG0,21 mm7,8 mm48 kg/km102 kg/km Send inquiry
020818077 x 18 AWG0,21 mm8,5 mm67,2 kg/km128 kg/km Send inquiry
020818088 x 18 AWG0,21 mm9,9 mm76,8 kg/km157 kg/km Send inquiry
0208181212 x 18 AWG0,21 mm11,3 mm115,2 kg/km211 kg/km Send inquiry
0208181414 x 18 AWG0,21 mm12,1 mm134,4 kg/km245 kg/km Send inquiry
0208181818 x 18 AWG0,21 mm13,6 mm172,8 kg/km311 kg/km Send inquiry
0208182525 x 18 AWG0,21 mm16,4 mm240 kg/km424 kg/km Send inquiry
0208183030 x 18 AWG0,21 mm17 mm288 kg/km489 kg/km Send inquiry
0208183434 x 18 AWG0,21 mm18,5 mm326,4 kg/km559 kg/km Send inquiry
0208184040 x 18 AWG0,21 mm19,9 mm384 kg/km650 kg/km Send inquiry
0208186161 x 18 AWG0,21 mm23,7 mm585,6 kg/km966 kg/km Send inquiry
020816022 x 16 AWG0,26 mm6,7 mm28,8 kg/km71 kg/km Send inquiry
020816033 x 16 AWG0,26 mm7,1 mm43,2 kg/km87 kg/km Send inquiry
020816044 x 16 AWG0,26 mm7,9 mm57,6 kg/km109 kg/km Send inquiry
020816055 x 16 AWG0,26 mm8,6 mm72 kg/km131 kg/km Send inquiry
020816077 x 16 AWG0,26 mm9,6 mm100,8 kg/km171 kg/km Send inquiry
020816088 x 16 AWG0,26 mm11,2 mm115,2 kg/km208 kg/km Send inquiry
0208161010 x 16 AWG0,26 mm12,4 mm144 kg/km245 kg/km Send inquiry
0208161212 x 16 AWG0,26 mm12,8 mm172,8 kg/km281 kg/km Send inquiry
0208161414 x 16 AWG0,26 mm13,6 mm201,6 kg/km325 kg/km Send inquiry
0208161616 x 16 AWG0,26 mm14,3 mm230,4 kg/km365 kg/km Send inquiry
0208161818 x 16 AWG0,26 mm15,3 mm259,2 kg/km413 kg/km Send inquiry
0208162525 x 16 AWG0,26 mm18,5 mm360 kg/km569 kg/km Send inquiry
0208163030 x 16 AWG0,26 mm19,3 mm432 kg/km667 kg/km Send inquiry
0208163434 x 16 AWG0,26 mm21 mm489,6 kg/km760 kg/km Send inquiry
0208164040 x 16 AWG0,26 mm22,9 mm576 kg/km916 kg/km Send inquiry
0208166161 x 16 AWG0,26 mm26,7 mm878,4 kg/km1309 kg/km Send inquiry
020814022 x 14 AWG0,26 mm8,1 mm48 kg/km108 kg/km Send inquiry
020814033 x 14 AWG0,26 mm8,6 mm72 kg/km132 kg/km Send inquiry
020814044 x 14 AWG0,26 mm9,5 mm96 kg/km166 kg/km Send inquiry
020814055 x 14 AWG0,26 mm10,6 mm120 kg/km208 kg/km Send inquiry
020814077 x 14 AWG0,26 mm11,6 mm168 kg/km263 kg/km Send inquiry
020814088 x 14 AWG0,26 mm13,8 mm192 kg/km322 kg/km Send inquiry
0208141010 x 14 AWG0,26 mm15,2 mm240 kg/km383 kg/km Send inquiry
0208141212 x 14 AWG0,26 mm15,7 mm288 kg/km440 kg/km Send inquiry
0208141818 x 14 AWG0,26 mm18,7 mm432 kg/km643 kg/km Send inquiry
0208142525 x 14 AWG0,26 mm23,1 mm600 kg/km904 kg/km Send inquiry
020812033 x 12 AWG0,31 mm10,2 mm115,2 kg/km196 kg/km Send inquiry
020812044 x 12 AWG0,31 mm11,3 mm153,6 kg/km246 kg/km Send inquiry
020812055 x 12 AWG0,31 mm12,6 mm192 kg/km304 kg/km Send inquiry
020812077 x 12 AWG0,31 mm13,9 mm268,8 kg/km397 kg/km Send inquiry
020810033 x 10 AWG0,31 mm12,1 mm172,8 kg/km284 kg/km Send inquiry
020810044 x 10 AWG0,31 mm13,2 mm230,4 kg/km351 kg/km Send inquiry
020810055 x 10 AWG0,31 mm14,9 mm288 kg/km440 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
