CC 600 CY Lean (AWG 8 - AWG 4)

PVC control cable with numbered cores and overall copper screen acc. to UL/CSA

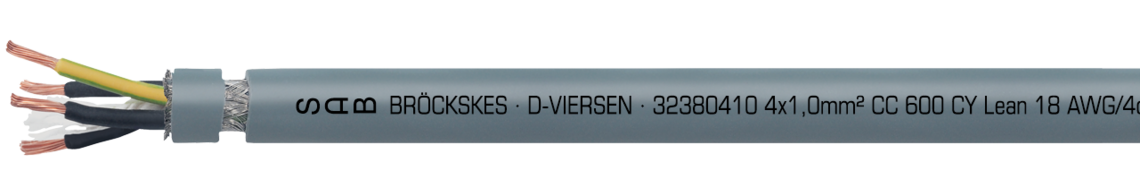

Marking for CC 600 CY Lean 32380804: SAB BRÖCKSKES · D-VIERSEN · CC 600 CY Lean 8 AWG/4c 32380804 VDE-Reg.-r. 7000 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90° 600V FT1 FT2 CE

Marking for CC 600 CY Lean 32380804: SAB BRÖCKSKES · D-VIERSEN · CC 600 CY Lean 8 AWG/4c 32380804 VDE-Reg.-r. 7000 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90° 600V FT1 FT2 CE

Application

CC 600 CY Lean is a PVC control cable with numbered cores and overall copper screen as well as AWG 8 - AWG 4. It is recommended for use in car manufacturing industry, automation technologies, press and form engineering, machine tools, textile, printing and paper machine construction, iron and steel industries.

Outstanding features

  • UL and CSA approved
  • good EMV characteristics
  • reduced outer diameter
  • small bending radius
  • high mechanical loading capacity
  • oil resistant

Construction

Conductor

bare copper strands acc. to UL/CSA

Insulation

special PVC acc. to VDE and UL/CSA

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Screen

tinned copper braiding

Sheath material

special oil resistant PVC acc. to VDE and UL/CSA

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to UL/CSA

Insulation

special PVC acc. to VDE and UL/CSA

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Screen

tinned copper braiding

Sheath material

special oil resistant PVC acc. to VDE and UL/CSA

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70 °C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70 °C

DIN VDE flexible application: +5/+70 °C

UL/CSA fixed laying: up to +90°C

UL/CSA flexible application: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Dimensions

item no.

no. of cores x
cross section

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

323808044 x 8 AWG0,41 mm18,6 mm508,9 kg/km648 kg/km Send inquiry
323806044 x 6 AWG0,41 mm22,8 mm753,8 kg/km946 kg/km Send inquiry
323804044 x 4 AWG0,41 mm27,6 mm1133,3 kg/km1462 kg/km Send inquiry
item no.
no. of cores x
cross section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
32380804
4 x 8 AWG
0,41 mm
18,6 mm
508,9 kg/km
648 kg/km
32380604
4 x 6 AWG
0,41 mm
22,8 mm
753,8 kg/km
946 kg/km
32380404
4 x 4 AWG
0,41 mm
27,6 mm
1133,3 kg/km
1462 kg/km

Other dimensions and colours are possible on request.
