SAB Kabel

CC 600 DS T

PVC control cable with numbered cores, extended temperature range and double screen acc. to UL/CSA

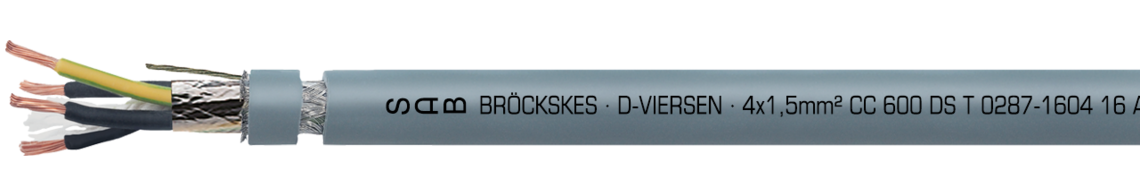

Marking for CC 600 DS T 02871425: SAB BRÖCKSKES · D-VIERSEN · 25 x 2,5 mm² CC 600 DS T 02871425 14 AWG/25c UL AWM Style 2586 105°C 600V CSA AWM I/II A/B 105°C 600V FT1 FT2 CE

Marking for CC 600 DS T 02871425: SAB BRÖCKSKES · D-VIERSEN · 25 x 2,5 mm² CC 600 DS T 02871425 14 AWG/25c UL AWM Style 2586 105°C 600V CSA AWM I/II A/B 105°C 600V FT1 FT2 CE

Application

CC 600 DS T is an UL and CSA approved PVC control cable with a double screen, extended temperature range, and numbered cores. Additionally, it has very good EMC characteristics. This cable is recommended for use in machine tool and packaging machine construction, material handling and automation technologies, car manufacturing industry, CNC-machines.

Outstanding features

  • UL and CSA approved
  • Temperature range up to + 105°C
  • very good EMV characteristics

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special heat resistant PVC

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Screen

alu foil with a drain wire and tinned copper braiding

Sheath material

special heat resistant PVC

Sheath colour

grey (RAL 7000)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special heat resistant PVC

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Screen

alu foil with a drain wire and tinned copper braiding

Sheath material

special heat resistant PVC

Sheath colour

grey (RAL 7000)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: +5/+90 °C

DIN VDE short-time use: +105°C

UL/CSA fixed laying: up to +105°C

UL/CSA flexible application: up to +105°C

Fire performance

flame retardant and self-extinguishing acc. IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

DIN VDE fixed laying: -40/+90 °C

DIN VDE flexible application: +5/+90 °C

DIN VDE short-time use: +105°C

UL/CSA fixed laying: up to +105°C

UL/CSA flexible application: up to +105°C

Fire performance

flame retardant and self-extinguishing acc. IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Dimensions

item no.

no. of cores x
cross section

drain wire

largest single
wire-ø

outer-ø ± 5%

copper figure

cable weight ca.

028720022 x 20 AWG20 AWG0,21 mm6,3 mm27 kg/km54 kg/km Send inquiry
028720033 x 20 AWG20 AWG0,21 mm6,7 mm32,5 kg/km64 kg/km Send inquiry
028720044 x 20 AWG20 AWG0,21 mm7,1 mm49,7 kg/km74 kg/km Send inquiry
028720077 x 20 AWG20 AWG0,21 mm8,4 mm69,4 kg/km108 kg/km Send inquiry
028720099 x 20 AWG20 AWG0,21 mm10,1 mm100 kg/km145 kg/km Send inquiry
0287201212 x 20 AWG20 AWG0,21 mm11,2 mm113 kg/km190 kg/km Send inquiry
0287201515 x 20 AWG20 AWG0,21 mm12,3 mm130 kg/km225 kg/km Send inquiry
0287202525 x 20 AWG20 AWG0,21 mm15,3 mm198,7 kg/km335 kg/km Send inquiry
028718022 x 18 AWG18 AWG0,21 mm7,5 mm49,4 kg/km76 kg/km Send inquiry
028718033 x 18 AWG18 AWG0,21 mm7,8 mm59,2 kg/km91 kg/km Send inquiry
028718044 x 18 AWG18 AWG0,21 mm8,4 mm71,8 kg/km106 kg/km Send inquiry
028718055 x 18 AWG18 AWG0,21 mm9,2 mm87,7 kg/km128 kg/km Send inquiry
028718077 x 18 AWG18 AWG0,21 mm9,9 mm107,1 kg/km156 kg/km Send inquiry
028718099 x 18 AWG18 AWG0,21 mm12,1 mm130 kg/km200 kg/km Send inquiry
0287181212 x 18 AWG18 AWG0,21 mm13,1 mm169,1 kg/km265 kg/km Send inquiry
0287181515 x 18 AWG18 AWG0,21 mm14,3 mm207,1 kg/km319 kg/km Send inquiry
0287181818 x 18 AWG18 AWG0,21 mm15,2 mm243,3 kg/km366 kg/km Send inquiry
0287182525 x 18 AWG18 AWG0,21 mm18,2 mm346,7 kg/km508 kg/km Send inquiry
0287185050 x 18 AWG18 AWG0,21 mm24 mm621,5 kg/km919 kg/km Send inquiry
028716022 x 16 AWG16 AWG0,26 mm7,9 mm68,3 kg/km90 kg/km Send inquiry
028716033 x 16 AWG16 AWG0,26 mm8,6 mm85,3 kg/km112 kg/km Send inquiry
028716044 x 16 AWG16 AWG0,26 mm9,4 mm105,3 kg/km135 kg/km Send inquiry
028716055 x 16 AWG16 AWG0,26 mm10,3 mm121,5 kg/km165 kg/km Send inquiry
028716077 x 16 AWG16 AWG0,26 mm11,3 mm162,5 kg/km217 kg/km Send inquiry
028716099 x 16 AWG16 AWG0,26 mm13,7 mm203,8 kg/km285 kg/km Send inquiry
0287161212 x 16 AWG16 AWG0,26 mm14,7 mm244,2 kg/km345 kg/km Send inquiry
0287161515 x 16 AWG16 AWG0,26 mm16,2 mm299,3 kg/km420 kg/km Send inquiry
0287161818 x 16 AWG16 AWG0,26 mm17,4 mm345,1 kg/km505 kg/km Send inquiry
0287162525 x 16 AWG16 AWG0,26 mm20,6 mm492,2 kg/km674 kg/km Send inquiry
0287165050 x 16 AWG16 AWG0,26 mm26,9 mm900,4 kg/km1221 kg/km Send inquiry
028714033 x 14 AWG14 AWG0,26 mm10,5 mm150,5 kg/km171 kg/km Send inquiry
028714044 x 14 AWG14 AWG0,26 mm11,4 mm185,8 kg/km220 kg/km Send inquiry
028714055 x 14 AWG14 AWG0,26 mm12,6 mm210,8 kg/km265 kg/km Send inquiry
028714077 x 14 AWG14 AWG0,26 mm13,7 mm262,4 kg/km324 kg/km Send inquiry
028714099 x 14 AWG14 AWG0,26 mm16,8 mm332 kg/km475 kg/km Send inquiry
0287141212 x 14 AWG14 AWG0,26 mm18 mm414,7 kg/km538 kg/km Send inquiry
0287141818 x 14 AWG14 AWG0,26 mm21 mm608,8 kg/km750 kg/km Send inquiry
0287142525 x 14 AWG14 AWG0,26 mm25,1 mm814 kg/km1024 kg/km Send inquiry
028712033 x 12 AWG14 AWG0,31 mm12,1 mm205,8 kg/km237 kg/km Send inquiry
028712044 x 12 AWG14 AWG0,31 mm13,3 mm245,3 kg/km295 kg/km Send inquiry
028712055 x 12 AWG14 AWG0,31 mm14,4 mm289,9 kg/km354 kg/km Send inquiry
028712077 x 12 AWG14 AWG0,31 mm16,2 mm377,3 kg/km465 kg/km Send inquiry
028710033 x 10 AWG14 AWG0,31 mm13,9 mm272,8 kg/km325 kg/km Send inquiry
028710044 x 10 AWG14 AWG0,31 mm15,1 mm338 kg/km399 kg/km Send inquiry
028710055 x 10 AWG14 AWG0,31 mm16,6 mm398,3 kg/km485 kg/km Send inquiry
028708044 x 8 AWG14 AWG0,41 mm19,8 mm523,7 kg/km650 kg/km Send inquiry
item no.
no. of cores x
cross section
drain wire
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
02872002
2 x 20 AWG
20 AWG
0,21 mm
6,3 mm
27 kg/km
54 kg/km
02872003
3 x 20 AWG
20 AWG
0,21 mm
6,7 mm
32,5 kg/km
64 kg/km
02872004
4 x 20 AWG
20 AWG
0,21 mm
7,1 mm
49,7 kg/km
74 kg/km
02872007
7 x 20 AWG
20 AWG
0,21 mm
8,4 mm
69,4 kg/km
108 kg/km
02872009
9 x 20 AWG
20 AWG
0,21 mm
10,1 mm
100 kg/km
145 kg/km
02872012
12 x 20 AWG
20 AWG
0,21 mm
11,2 mm
113 kg/km
190 kg/km
02872015
15 x 20 AWG
20 AWG
0,21 mm
12,3 mm
130 kg/km
225 kg/km
02872025
25 x 20 AWG
20 AWG
0,21 mm
15,3 mm
198,7 kg/km
335 kg/km
02871802
2 x 18 AWG
18 AWG
0,21 mm
7,5 mm
49,4 kg/km
76 kg/km
02871803
3 x 18 AWG
18 AWG
0,21 mm
7,8 mm
59,2 kg/km
91 kg/km
02871804
4 x 18 AWG
18 AWG
0,21 mm
8,4 mm
71,8 kg/km
106 kg/km
02871805
5 x 18 AWG
18 AWG
0,21 mm
9,2 mm
87,7 kg/km
128 kg/km
02871807
7 x 18 AWG
18 AWG
0,21 mm
9,9 mm
107,1 kg/km
156 kg/km
02871809
9 x 18 AWG
18 AWG
0,21 mm
12,1 mm
130 kg/km
200 kg/km
02871812
12 x 18 AWG
18 AWG
0,21 mm
13,1 mm
169,1 kg/km
265 kg/km
02871815
15 x 18 AWG
18 AWG
0,21 mm
14,3 mm
207,1 kg/km
319 kg/km
02871818
18 x 18 AWG
18 AWG
0,21 mm
15,2 mm
243,3 kg/km
366 kg/km
02871825
25 x 18 AWG
18 AWG
0,21 mm
18,2 mm
346,7 kg/km
508 kg/km
02871850
50 x 18 AWG
18 AWG
0,21 mm
24 mm
621,5 kg/km
919 kg/km
02871602
2 x 16 AWG
16 AWG
0,26 mm
7,9 mm
68,3 kg/km
90 kg/km
02871603
3 x 16 AWG
16 AWG
0,26 mm
8,6 mm
85,3 kg/km
112 kg/km
02871604
4 x 16 AWG
16 AWG
0,26 mm
9,4 mm
105,3 kg/km
135 kg/km
02871605
5 x 16 AWG
16 AWG
0,26 mm
10,3 mm
121,5 kg/km
165 kg/km
02871607
7 x 16 AWG
16 AWG
0,26 mm
11,3 mm
162,5 kg/km
217 kg/km
02871609
9 x 16 AWG
16 AWG
0,26 mm
13,7 mm
203,8 kg/km
285 kg/km
02871612
12 x 16 AWG
16 AWG
0,26 mm
14,7 mm
244,2 kg/km
345 kg/km
02871615
15 x 16 AWG
16 AWG
0,26 mm
16,2 mm
299,3 kg/km
420 kg/km
02871618
18 x 16 AWG
16 AWG
0,26 mm
17,4 mm
345,1 kg/km
505 kg/km
02871625
25 x 16 AWG
16 AWG
0,26 mm
20,6 mm
492,2 kg/km
674 kg/km
02871650
50 x 16 AWG
16 AWG
0,26 mm
26,9 mm
900,4 kg/km
1221 kg/km
02871403
3 x 14 AWG
14 AWG
0,26 mm
10,5 mm
150,5 kg/km
171 kg/km
02871404
4 x 14 AWG
14 AWG
0,26 mm
11,4 mm
185,8 kg/km
220 kg/km
02871405
5 x 14 AWG
14 AWG
0,26 mm
12,6 mm
210,8 kg/km
265 kg/km
02871407
7 x 14 AWG
14 AWG
0,26 mm
13,7 mm
262,4 kg/km
324 kg/km
02871409
9 x 14 AWG
14 AWG
0,26 mm
16,8 mm
332 kg/km
475 kg/km
02871412
12 x 14 AWG
14 AWG
0,26 mm
18 mm
414,7 kg/km
538 kg/km
02871418
18 x 14 AWG
14 AWG
0,26 mm
21 mm
608,8 kg/km
750 kg/km
02871425
25 x 14 AWG
14 AWG
0,26 mm
25,1 mm
814 kg/km
1024 kg/km
02871203
3 x 12 AWG
14 AWG
0,31 mm
12,1 mm
205,8 kg/km
237 kg/km
02871204
4 x 12 AWG
14 AWG
0,31 mm
13,3 mm
245,3 kg/km
295 kg/km
02871205
5 x 12 AWG
14 AWG
0,31 mm
14,4 mm
289,9 kg/km
354 kg/km
02871207
7 x 12 AWG
14 AWG
0,31 mm
16,2 mm
377,3 kg/km
465 kg/km
02871003
3 x 10 AWG
14 AWG
0,31 mm
13,9 mm
272,8 kg/km
325 kg/km
02871004
4 x 10 AWG
14 AWG
0,31 mm
15,1 mm
338 kg/km
399 kg/km
02871005
5 x 10 AWG
14 AWG
0,31 mm
16,6 mm
398,3 kg/km
485 kg/km
02870804
4 x 8 AWG
14 AWG
0,41 mm
19,8 mm
523,7 kg/km
650 kg/km

Other dimensions and colours are possible on request.
