H05V-K/MTW/TEW

PVC insulated wiring cable acc. to NFPA 79 for industrial machinery acc. to HAR/VDE/CSA/UL

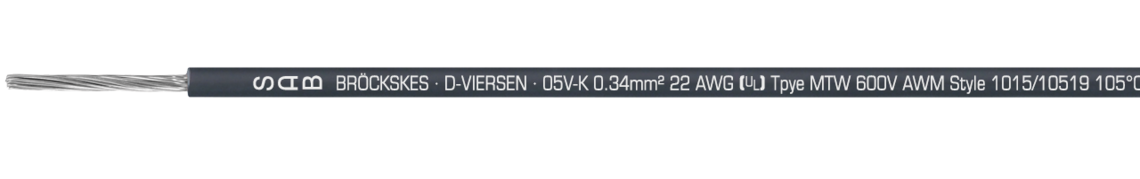

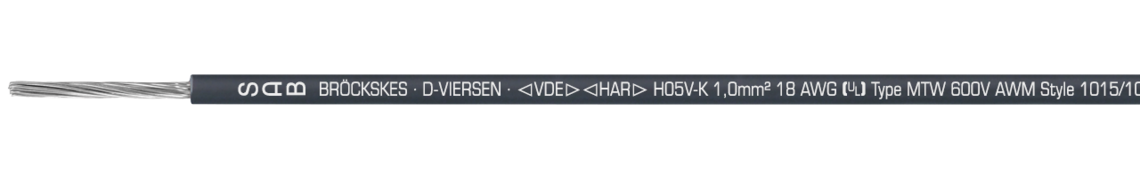

Marking for H05V-K/MTW/TEW 31660180: SAB BRÖCKSKES · D-VIERSEN · < VDE > < HAR > H05V-K 1,0 mm² 18 AWG (UL) Type MTW 600V AWM Style 1015/10519 105°C 600V VW1 CSA Type TEW 105°C 600V FT1 CE

Marking for H05V-K/MTW/TEW 31660180: SAB BRÖCKSKES · D-VIERSEN · < VDE > < HAR > H05V-K 1,0 mm² 18 AWG (UL) Type MTW 600V AWM Style 1015/10519 105°C 600V VW1 CSA Type TEW 105°C 600V FT1 CE

Application

H05V-K/MTW/TEW is a PVC insulated wiring cable that has a NFPA 79 certification. It is recommendes for use in construction of control cabinets, appliances and devices for communication technologies, household appliances, generator, transformer and machine construction.

Outstanding features

  • 300/500 V
  • flexible conductor
  • harmonised acc. to European standards
  • MTW (Machine Tool Wire)
  • TEW (Thermoplastic Equipment Wire)
  • NFPA 79 for industrial machinery

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI1 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

PVC, TI1 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

2000 V

Min. bending radius

4 x d

Temperature range

UL-AWM/CSA: up to +105 °C

(UL) MTW: up to +90 °C



DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

DIN VDE: Uo/U 300/500 V

UL/CSA: 600 V

Testing voltage

2000 V

Min. bending radius

4 x d

Temperature range

UL-AWM/CSA: up to +105 °C

(UL) MTW: up to +90 °C



DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1

Dimensions

item no.

nominal cross
section

largest single
wire-ø

approx. outer-ø

copper figure

cable weight ca.

316601500,50 mm²0,21 mm2,5 mm5,1 kg/km11 kg/km Send inquiry
316601750,75 mm²0,21 mm2,7 mm7,2 kg/km14 kg/km Send inquiry
316601801,00 mm²0,21 mm2,8 mm9,6 kg/km16 kg/km Send inquiry
item no.
nominal cross
section
largest single
wire-ø
approx. outer-ø
copper figure
cable weight ca.
31660150
0,50 mm²
0,21 mm
2,5 mm
5,1 kg/km
11 kg/km
31660175
0,75 mm²
0,21 mm
2,7 mm
7,2 kg/km
14 kg/km
31660180
1,00 mm²
0,21 mm
2,8 mm
9,6 kg/km
16 kg/km

Other dimensions and colours are possible on request.
