07V-K/H07V-K/MTW/TEW
PVC insulated single conductor acc. to NFPA 79 for industrial machinery acc. to HAR/CSA/UL

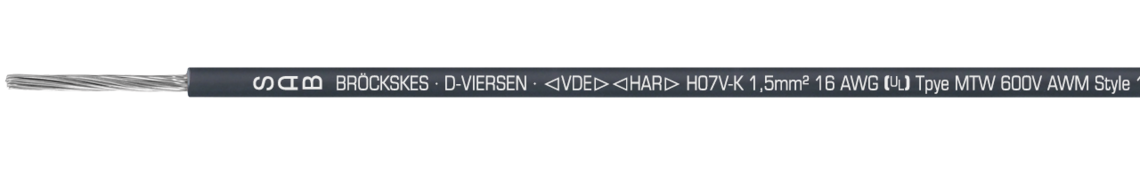

Marking for H07V-K/MTW/TEW 31670182: SAB BRÖCKSKES · D-VIERSEN · <VDE> <HAR> H07V-K 1,5mm² 16 AWG (UL) Type MTW 600V AWM Style 1015/10519 105°C 600V VW-1 CSA Type TEW 105°C 600V FT1 CE
Application
07V-K/H07V-K/MTW/TEW is a PVC insulated single conductor that has a NFPA 79 certification. It is recommends for use in construction of control cabinets, appliances and devices for communication technologies, household appliances, generator, transformer and machine construction.
Outstanding features
- 450/750 V
- UL recognized, (UL) listed, CSA approved
- HAR standardized, for several dimensions
- harmonised acc. to European standards, for several dimensions
- flexible conductor
- MTW (Machine Tool Wire)
- TEW (Thermoplastic Equipment Wire)
- NFPA 79 for industrial machinery
- with reference to BS 6231 Type BK
Additional information
Cross sections with HAR are not allowed in plain green or plain yellow.
If required, those colours would be marked without HAR.
Construction
| Conductor | acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
| Sheath colour | black (RAL 9005) |
acc. to IEC 60228, VDE 0295, class 5
PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 450/750 V |
|---|---|
| Voltage UL/CSA | 600 V |
| Testing voltage | 2500 V |
| Min. bending radius | 4 x d |
| Temperature range | UL-AWM/CSA: up to +105 °C (UL) MTW: up to +90 °C
DIN VDE fixed laying: -40/+70°C DIN VDE flexible application: +5/+70°C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 450/750 V
600 V
2500 V
4 x d
UL-AWM/CSA: up to +105 °C
(UL) MTW: up to +90 °C
DIN VDE fixed laying: -40/+70°C
DIN VDE flexible application: +5/+70°C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1, CSA FT1
acc. to RoHS directive of the European Union
Dimensions
| item no. | Type |
Nominal cross section |
Largest single wire-ø | Approx. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|---|
| L31670182 | H07V-K | 1,50 mm² | 0,26 mm | 3,1 mm | 14,4 kg/km | 20 kg/km | Send inquiry |
| L31670184 | H07V-K | 2,50 mm² | 0,26 mm | 3,6 mm | 24,0 kg/km | 30 kg/km | Send inquiry |
| L31670186 | H07V-K | 4,00 mm² | 0,31 mm | 4,2 mm | 38,4 kg/km | 45 kg/km | Send inquiry |
| L31670187 | H07V-K | 6,00 mm² | 0,31 mm | 4,7 mm | 57,6 kg/km | 63 kg/km | Send inquiry |
| L31670188 | H07V-K | 10,00 mm² | 0,41 mm | 6,6 mm | 96,0 kg/km | 113 kg/km | Send inquiry |
| L31670189 | 07V-K | 16,00 mm² | 0,41 mm | 8,4 mm | 153,6 kg/km | 187 kg/km | Send inquiry |
| L31670190 | 07V-K | 25,00 mm² | 0,41 mm | 10,1 mm | 240,0 kg/km | 270 kg/km | Send inquiry |
| L31670191 | 07V-K | 35,00 mm² | 0,41 mm | 11,5 mm | 336,0 kg/km | 373 kg/km | Send inquiry |
| L31670192 | 07V-K | 50,00 mm² | 0,41 mm | 13,8 mm | 480,0 kg/km | 552 kg/km | Send inquiry |
| L31670193 | 07V-K | 70,00 mm² | 0,41 mm | 16,1 mm | 672,0 kg/km | 735 kg/km | Send inquiry |
| L31670194 | 07V-K | 95,00 mm² | 0,51 mm | 18,2 mm | 912,0 kg/km | 981 kg/km | Send inquiry |
| L31670195 | 07V-K | 120,00 mm² | 0,51 mm | 20,1 mm | 1152,0 kg/km | 1202 kg/km | Send inquiry |
section
wire-ø
Other dimensions and colours are possible on request.
