SAB Kabel

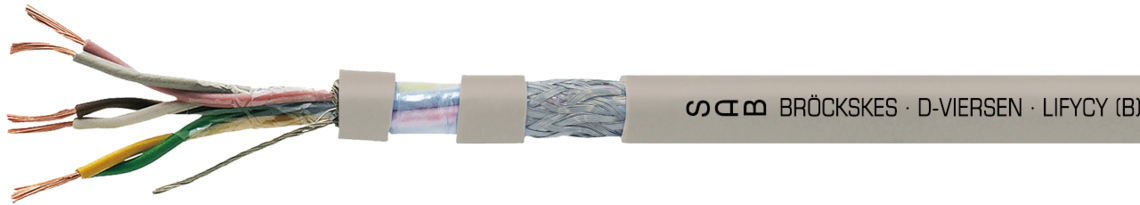

LiFYCY (B) TP

PVC data cable, twisted pairs with overall copper screen

Marking for LiFYCY (B) TP 03030320:
SAB BRÖCKSKES · D-VIERSEN · LIFYCY (B) TP  3x2x0,2mm² CE

Marking for LiFYCY (B) TP 03030320: SAB BRÖCKSKES · D-VIERSEN · LIFYCY (B) TP 3x2x0,2mm² CE

Application

LiFY-CY (B) TP is a twisted pair and screened PVC data cable with a good handling. This PVC cable is used in measuring, control, and voice signals, e.g. in low-voltage switchboard plants, scales and appliance engineering, in communication technologies, in control and measuring technologies, and in office and computing machines.

Outstanding features

  • good EMV characteristic
  • highly flexible
  • good handling
  • small bending radius

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs twisted in layers

Wrapping

PETP foil

Screen

tinned copper braidung with a tinned copper drain wire (0,25 mm²)

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs twisted in layers

Wrapping

PETP foil

Screen

tinned copper braidung with a tinned copper drain wire (0,25 mm²)

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see page N/8

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see Technical Data

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see page N/8

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

Dimensions

item no.

no. of pairs x
cross section

nominal wire-ø

outer-ø ± 10%

copper figure

cable weight ca.

030302202 x 2 x 0,20 mm²0,05 mm5,4 mm22,1 kg/km38 kg/km Send inquiry
030303203 x 2 x 0,20 mm²0,05 mm6,1 mm27,6 kg/km50 kg/km Send inquiry
030304204 x 2 x 0,20 mm²0,05 mm6,9 mm33 kg/km58 kg/km Send inquiry
030306206 x 2 x 0,20 mm²0,05 mm7,5 mm42,4 kg/km76 kg/km Send inquiry
030308208 x 2 x 0,20 mm²0,05 mm9 mm53,7 kg/km103 kg/km Send inquiry
0303122012 x 2 x 0,20 mm²0,05 mm10,3 mm73,6 kg/km133 kg/km Send inquiry
0303182018 x 2 x 0,20 mm²0,05 mm11,8 mm118,3 kg/km191 kg/km Send inquiry
0303242024 x 2 x 0,20 mm²0,05 mm13,6 mm146,2 kg/km243 kg/km Send inquiry
0303322032 x 2 x 0,20 mm²0,05 mm15,1 mm182,9 kg/km305 kg/km Send inquiry
item no.
no. of pairs x
cross section
nominal wire-ø
outer-ø ± 10%
copper figure
cable weight ca.
03030220
2 x 2 x 0,20 mm²
0,05 mm
5,4 mm
22,1 kg/km
38 kg/km
03030320
3 x 2 x 0,20 mm²
0,05 mm
6,1 mm
27,6 kg/km
50 kg/km
03030420
4 x 2 x 0,20 mm²
0,05 mm
6,9 mm
33 kg/km
58 kg/km
03030620
6 x 2 x 0,20 mm²
0,05 mm
7,5 mm
42,4 kg/km
76 kg/km
03030820
8 x 2 x 0,20 mm²
0,05 mm
9 mm
53,7 kg/km
103 kg/km
03031220
12 x 2 x 0,20 mm²
0,05 mm
10,3 mm
73,6 kg/km
133 kg/km
03031820
18 x 2 x 0,20 mm²
0,05 mm
11,8 mm
118,3 kg/km
191 kg/km
03032420
24 x 2 x 0,20 mm²
0,05 mm
13,6 mm
146,2 kg/km
243 kg/km
03033220
32 x 2 x 0,20 mm²
0,05 mm
15,1 mm
182,9 kg/km
305 kg/km

Other dimensions and colours are possible on request.
