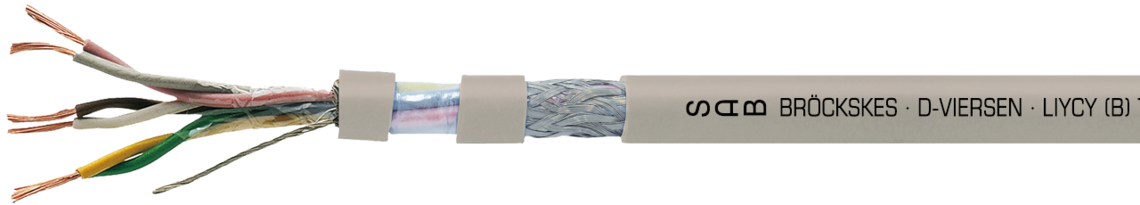

LiYCY (B) TP

PVC data cable twisted pairs with overall copper screen

Marking for LiYCY (B) TP 03450325:
SAB BRÖCKSKES · D-VIERSEN · LIYCY (B) TP  3x2x0,25mm²  CE

Marking for LiYCY (B) TP 03450325: SAB BRÖCKSKES · D-VIERSEN · LIYCY (B) TP 3x2x0,25mm² CE

Application

LiYCY TP cable is a paired and screened PVC data cable with small outer diameter. This cable is applied in measuring, control, and voice signals, e.g. in low-voltage switchboard plants, scales and appliance engineering, in communication technologies, in control and measuring technologies, and in office and computing machines.

Outstanding features

  • screened, good EMV characteristic
  • flexible
  • small outer diameter
  • small bending radius

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs in layers

Wrapping

PETP foil

Screen

tinned copper braiding with a tinned copper drain wire (0,34 mm²)

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs in layers

Wrapping

PETP foil

Screen

tinned copper braiding with a tinned copper drain wire (0,34 mm²)

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x
cross section
Outer-ø ± 10% Copper figure Cable weight ≈
L034502142 x 2 x 0,14 mm²5,2 mm19,1 kg/km34 kg/km Send inquiry
L034503143 x 2 x 0,14 mm²5,7 mm23,4 kg/km41 kg/km Send inquiry
L034504144 x 2 x 0,14 mm²6,5 mm27,8 kg/km53 kg/km Send inquiry
L034505145 x 2 x 0,14 mm²7 mm31,9 kg/km60 kg/km Send inquiry
L034506146 x 2 x 0,14 mm²7,2 mm36,2 kg/km68 kg/km Send inquiry
L034508148 x 2 x 0,14 mm²7,8 mm43,4 kg/km80 kg/km Send inquiry
L0345101410 x 2 x 0,14 mm²8,9 mm50,6 kg/km100 kg/km Send inquiry
L0345121412 x 2 x 0,14 mm²9,7 mm58,2 kg/km111 kg/km Send inquiry
L0345161416 x 2 x 0,14 mm²10,5 mm71,4 kg/km136 kg/km Send inquiry
L0345181418 x 2 x 0,14 mm²11,1 mm92,8 kg/km159 kg/km Send inquiry
L0345201420 x 2 x 0,14 mm²11,1 mm98,1 kg/km164 kg/km Send inquiry
L0345241424 x 2 x 0,14 mm²12,8 mm114,8 kg/km203 kg/km Send inquiry
L0345251425 x 2 x 0,14 mm²12,8 mm117,5 kg/km207 kg/km Send inquiry
L0345281428 x 2 x 0,14 mm²13,1 mm125,7 kg/km221 kg/km Send inquiry
L0345301430 x 2 x 0,14 mm²13,8 mm135,6 kg/km237 kg/km Send inquiry
L0345361436 x 2 x 0,14 mm²14,6 mm157,3 kg/km275 kg/km Send inquiry
L0345401440 x 2 x 0,14 mm²14,9 mm168,2 kg/km296 kg/km Send inquiry
L0345441444 x 2 x 0,14 mm²16,3 mm205,9 kg/km348 kg/km Send inquiry
L0345521452 x 2 x 0,14 mm²17 mm228,1 kg/km388 kg/km Send inquiry
L0345611461 x 2 x 0,14 mm²18,3 mm263,2 kg/km443 kg/km Send inquiry
L034502252 x 2 x 0,25 mm²5,7 mm24,9 kg/km42 kg/km Send inquiry
L034503253 x 2 x 0,25 mm²6,4 mm31,4 kg/km55 kg/km Send inquiry
L034506256 x 2 x 0,25 mm²7,9 mm50,7 kg/km85 kg/km Send inquiry
L034508258 x 2 x 0,25 mm²9 mm62,1 kg/km109 kg/km Send inquiry
L0345102510 x 2 x 0,25 mm²9,8 mm73,9 kg/km132 kg/km Send inquiry
L0345122512 x 2 x 0,25 mm²10,9 mm101,9 kg/km160 kg/km Send inquiry
L0345162516 x 2 x 0,25 mm²11,9 mm126,8 kg/km195 kg/km Send inquiry
L0345182518 x 2 x 0,25 mm²12,7 mm136,6 kg/km222 kg/km Send inquiry
L0345242524 x 2 x 0,25 mm²14,2 mm170,3 kg/km270 kg/km Send inquiry
L034502342 x 2 x 0,34 mm²6,8 mm31,5 kg/km57 kg/km Send inquiry
L034503343 x 2 x 0,34 mm²7,4 mm39,7 kg/km72 kg/km Send inquiry
L034504344 x 2 x 0,34 mm²8,8 mm49,8 kg/km99 kg/km Send inquiry
L034505345 x 2 x 0,34 mm²9,5 mm58,5 kg/km116 kg/km Send inquiry
L034506346 x 2 x 0,34 mm²9,7 mm65,1 kg/km128 kg/km Send inquiry
L034508348 x 2 x 0,34 mm²10,6 mm80,7 kg/km144 kg/km Send inquiry
L0345123412 x 2 x 0,34 mm²13,4 mm133,1 kg/km225 kg/km Send inquiry
L0345163416 x 2 x 0,34 mm²14,6 mm165 kg/km280 kg/km Send inquiry
L0345183418 x 2 x 0,34 mm²15,1 mm178,3 kg/km306 kg/km Send inquiry
L0345243424 x 2 x 0,34 mm²17,6 mm255,1 kg/km415 kg/km Send inquiry
L034502502 x 2 x 0,50 mm²7,2 mm39,3 kg/km66 kg/km Send inquiry
L034503503 x 2 x 0,50 mm²7,9 mm50,1 kg/km84 kg/km Send inquiry
L034506506 x 2 x 0,50 mm²10,4 mm86 kg/km146 kg/km Send inquiry
L034508508 x 2 x 0,50 mm²10,9 mm111,5 kg/km166 kg/km Send inquiry
L0345105010 x 2 x 0,50 mm²13,2 mm146,5 kg/km229 kg/km Send inquiry
L0345125012 x 2 x 0,50 mm²14,4 mm175,7 kg/km268 kg/km Send inquiry
L0345165016 x 2 x 0,50 mm²16,3 mm241,3 kg/km368 kg/km Send inquiry
L0345185018 x 2 x 0,50 mm²16,9 mm261 kg/km399 kg/km Send inquiry
L0345205020 x 2 x 0,50 mm²16,9 mm280,2 kg/km418 kg/km Send inquiry
L0345245024 x 2 x 0,50 mm²19 mm330,4 kg/km491 kg/km Send inquiry
L034502752 x 2 x 0,75 mm²8,5 mm52,4 kg/km92 kg/km Send inquiry
L034503753 x 2 x 0,75 mm²9,4 mm69,4 kg/km112 kg/km Send inquiry
L034506756 x 2 x 0,75 mm²12,5 mm136,5 kg/km218 kg/km Send inquiry
L0345127512 x 2 x 0,75 mm²17,1 mm261,2 kg/km385 kg/km Send inquiry
L0345167516 x 2 x 0,75 mm²18,6 mm329,9 kg/km482 kg/km Send inquiry
L0345187518 x 2 x 0,75 mm²19,3 mm369,3 kg/km535 kg/km Send inquiry
L0345247524 x 2 x 0,75 mm²21,8 mm469,2 kg/km661 kg/km Send inquiry
item no.
No. of pairs x
cross section
Outer-ø ± 10%
Copper figure
Cable weight ≈
L03450214
2 x 2 x 0,14 mm²
5,2 mm
19,1 kg/km
34 kg/km
L03450314
3 x 2 x 0,14 mm²
5,7 mm
23,4 kg/km
41 kg/km
L03450414
4 x 2 x 0,14 mm²
6,5 mm
27,8 kg/km
53 kg/km
L03450514
5 x 2 x 0,14 mm²
7 mm
31,9 kg/km
60 kg/km
L03450614
6 x 2 x 0,14 mm²
7,2 mm
36,2 kg/km
68 kg/km
L03450814
8 x 2 x 0,14 mm²
7,8 mm
43,4 kg/km
80 kg/km
L03451014
10 x 2 x 0,14 mm²
8,9 mm
50,6 kg/km
100 kg/km
L03451214
12 x 2 x 0,14 mm²
9,7 mm
58,2 kg/km
111 kg/km
L03451614
16 x 2 x 0,14 mm²
10,5 mm
71,4 kg/km
136 kg/km
L03451814
18 x 2 x 0,14 mm²
11,1 mm
92,8 kg/km
159 kg/km
L03452014
20 x 2 x 0,14 mm²
11,1 mm
98,1 kg/km
164 kg/km
L03452414
24 x 2 x 0,14 mm²
12,8 mm
114,8 kg/km
203 kg/km
L03452514
25 x 2 x 0,14 mm²
12,8 mm
117,5 kg/km
207 kg/km
L03452814
28 x 2 x 0,14 mm²
13,1 mm
125,7 kg/km
221 kg/km
L03453014
30 x 2 x 0,14 mm²
13,8 mm
135,6 kg/km
237 kg/km
L03453614
36 x 2 x 0,14 mm²
14,6 mm
157,3 kg/km
275 kg/km
L03454014
40 x 2 x 0,14 mm²
14,9 mm
168,2 kg/km
296 kg/km
L03454414
44 x 2 x 0,14 mm²
16,3 mm
205,9 kg/km
348 kg/km
L03455214
52 x 2 x 0,14 mm²
17 mm
228,1 kg/km
388 kg/km
L03456114
61 x 2 x 0,14 mm²
18,3 mm
263,2 kg/km
443 kg/km
L03450225
2 x 2 x 0,25 mm²
5,7 mm
24,9 kg/km
42 kg/km
L03450325
3 x 2 x 0,25 mm²
6,4 mm
31,4 kg/km
55 kg/km
L03450625
6 x 2 x 0,25 mm²
7,9 mm
50,7 kg/km
85 kg/km
L03450825
8 x 2 x 0,25 mm²
9 mm
62,1 kg/km
109 kg/km
L03451025
10 x 2 x 0,25 mm²
9,8 mm
73,9 kg/km
132 kg/km
L03451225
12 x 2 x 0,25 mm²
10,9 mm
101,9 kg/km
160 kg/km
L03451625
16 x 2 x 0,25 mm²
11,9 mm
126,8 kg/km
195 kg/km
L03451825
18 x 2 x 0,25 mm²
12,7 mm
136,6 kg/km
222 kg/km
L03452425
24 x 2 x 0,25 mm²
14,2 mm
170,3 kg/km
270 kg/km
L03450234
2 x 2 x 0,34 mm²
6,8 mm
31,5 kg/km
57 kg/km
L03450334
3 x 2 x 0,34 mm²
7,4 mm
39,7 kg/km
72 kg/km
L03450434
4 x 2 x 0,34 mm²
8,8 mm
49,8 kg/km
99 kg/km
L03450534
5 x 2 x 0,34 mm²
9,5 mm
58,5 kg/km
116 kg/km
L03450634
6 x 2 x 0,34 mm²
9,7 mm
65,1 kg/km
128 kg/km
L03450834
8 x 2 x 0,34 mm²
10,6 mm
80,7 kg/km
144 kg/km
L03451234
12 x 2 x 0,34 mm²
13,4 mm
133,1 kg/km
225 kg/km
L03451634
16 x 2 x 0,34 mm²
14,6 mm
165 kg/km
280 kg/km
L03451834
18 x 2 x 0,34 mm²
15,1 mm
178,3 kg/km
306 kg/km
L03452434
24 x 2 x 0,34 mm²
17,6 mm
255,1 kg/km
415 kg/km
L03450250
2 x 2 x 0,50 mm²
7,2 mm
39,3 kg/km
66 kg/km
L03450350
3 x 2 x 0,50 mm²
7,9 mm
50,1 kg/km
84 kg/km
L03450650
6 x 2 x 0,50 mm²
10,4 mm
86 kg/km
146 kg/km
L03450850
8 x 2 x 0,50 mm²
10,9 mm
111,5 kg/km
166 kg/km
L03451050
10 x 2 x 0,50 mm²
13,2 mm
146,5 kg/km
229 kg/km
L03451250
12 x 2 x 0,50 mm²
14,4 mm
175,7 kg/km
268 kg/km
L03451650
16 x 2 x 0,50 mm²
16,3 mm
241,3 kg/km
368 kg/km
L03451850
18 x 2 x 0,50 mm²
16,9 mm
261 kg/km
399 kg/km
L03452050
20 x 2 x 0,50 mm²
16,9 mm
280,2 kg/km
418 kg/km
L03452450
24 x 2 x 0,50 mm²
19 mm
330,4 kg/km
491 kg/km
L03450275
2 x 2 x 0,75 mm²
8,5 mm
52,4 kg/km
92 kg/km
L03450375
3 x 2 x 0,75 mm²
9,4 mm
69,4 kg/km
112 kg/km
L03450675
6 x 2 x 0,75 mm²
12,5 mm
136,5 kg/km
218 kg/km
L03451275
12 x 2 x 0,75 mm²
17,1 mm
261,2 kg/km
385 kg/km
L03451675
16 x 2 x 0,75 mm²
18,6 mm
329,9 kg/km
482 kg/km
L03451875
18 x 2 x 0,75 mm²
19,3 mm
369,3 kg/km
535 kg/km
L03452475
24 x 2 x 0,75 mm²
21,8 mm
469,2 kg/km
661 kg/km

Other dimensions and colours are possible on request.
