LiYCY

PVC data cable with overall copper screen LiYCY with reference to DIN 47100

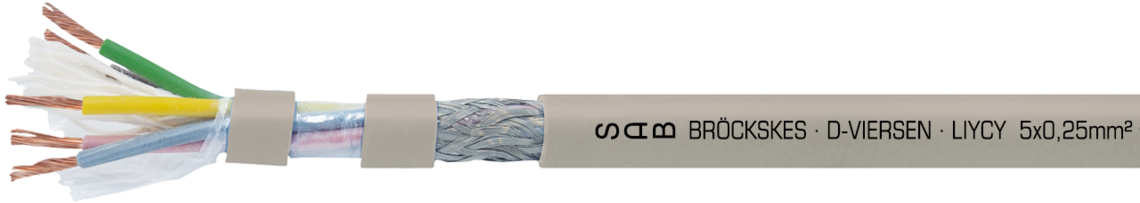

Marking for LiYCY 03150525: SAB BRÖCKSKES · D-VIERSEN · LIYCY 5x0,25mm² CE

Marking for LiYCY 03150525: SAB BRÖCKSKES · D-VIERSEN · LIYCY 5x0,25mm² CE

Download data sheet for LiYCY
Questions about our products?

Application

LiYCY cable with good EMC characteristics. This screened data cable with colour code acc. to DIN 47100 is used in scales, construction of appliances and control panels, construction of low-voltage switchboard plants, communication technologies, and construction of appliances for electric installations, test, and control techniques.

Outstanding features

  • screened, good EMV characteristic
  • flexible
  • small outer diameter
  • small bending radius

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Outer-ø ± 5% Copper figure Cable weight ≈
L031502142 x 0,14 mm²3,6 mm12,6 kg/km18 kg/km Send inquiry
L031503143 x 0,14 mm²3,8 mm14,1 kg/km21 kg/km Send inquiry
L031504144 x 0,14 mm²4 mm15,9 kg/km24 kg/km Send inquiry
L0315182518 x 0,25 mm²7,8 mm80 kg/km102 kg/km Send inquiry
L031507347 x 0,34 mm²6,4 mm42 kg/km65 kg/km Send inquiry
L0315202520 x 0,25 mm²8,5 mm96 kg/km117 kg/km Send inquiry
L031506346 x 0,34 mm²6,4 mm37 kg/km64 kg/km Send inquiry
L031505145 x 0,14 mm²4,3 mm19,5 kg/km29 kg/km Send inquiry
L031505345 x 0,34 mm²5,7 mm30 kg/km52 kg/km Send inquiry
L031506146 x 0,14 mm²4,6 mm22 kg/km33 kg/km Send inquiry
L0315212521 x 0,25 mm²8,8 mm105 kg/km125 kg/km Send inquiry
L031504344 x 0,34 mm²5,3 mm25 kg/km43 kg/km Send inquiry
L0315242524 x 0,25 mm²9,3 mm115 kg/km133 kg/km Send inquiry
L031507147 x 0,14 mm²4,6 mm24 kg/km33 kg/km Send inquiry
L031503343 x 0,34 mm²4,9 mm21 kg/km35 kg/km Send inquiry
L031508148 x 0,14 mm²5,4 mm26 kg/km44 kg/km Send inquiry
L0315252525 x 0,25 mm²9,5 mm117 kg/km139 kg/km Send inquiry
L0315101410 x 0,14 mm²5,8 mm29 kg/km47 kg/km Send inquiry
L0315272527 x 0,25 mm²9,5 mm120 kg/km145 kg/km Send inquiry
L031502342 x 0,34 mm²4,5 mm17 kg/km29 kg/km Send inquiry
L0315302530 x 0,25 mm²9,8 mm132 kg/km157 kg/km Send inquiry
L0315612561 x 0,25 mm²13,4 mm287 kg/km306 kg/km Send inquiry
L0315121412 x 0,14 mm²6,2 mm32 kg/km55 kg/km Send inquiry
L0315141414 x 0,14 mm²6,4 mm35 kg/km61 kg/km Send inquiry
L0315562556 x 0,25 mm²13 mm259 kg/km288 kg/km Send inquiry
L0315322532 x 0,25 mm²10,1 mm138 kg/km166 kg/km Send inquiry
L0315362536 x 0,25 mm²10,7 mm152 kg/km195 kg/km Send inquiry
L0315522552 x 0,25 mm²12,7 mm234 kg/km269 kg/km Send inquiry
L0315161416 x 0,14 mm²6,7 mm49 kg/km69 kg/km Send inquiry
L0315402540 x 0,25 mm²11,3 mm164 kg/km217 kg/km Send inquiry
L0315502550 x 0,25 mm²12,7 mm222 kg/km262 kg/km Send inquiry
L0315181418 x 0,14 mm²7 mm54 kg/km75 kg/km Send inquiry
L0315482548 x 0,25 mm²12,4 mm209 kg/km254 kg/km Send inquiry
L0315201420 x 0,14 mm²7,3 mm58 kg/km82 kg/km Send inquiry
L0315442544 x 0,25 mm²11,8 mm180 kg/km229 kg/km Send inquiry
L0315211421 x 0,14 mm²7,6 mm60 kg/km87 kg/km Send inquiry
L0315241424 x 0,14 mm²8 mm74 kg/km92 kg/km Send inquiry
L0315251425 x 0,14 mm²8,6 mm78 kg/km102 kg/km Send inquiry
L0315271427 x 0,14 mm²8,6 mm85 kg/km106 kg/km Send inquiry
L0315301430 x 0,14 mm²8,8 mm98 kg/km116 kg/km Send inquiry
L0315321432 x 0,14 mm²9,1 mm108 kg/km122 kg/km Send inquiry
L0315361436 x 0,14 mm²9,4 mm117 kg/km133 kg/km Send inquiry
L0315401440 x 0,14 mm²10 mm126 kg/km148 kg/km Send inquiry
L0315441444 x 0,14 mm²10,6 mm138 kg/km168 kg/km Send inquiry
L0315481448 x 0,14 mm²10,8 mm145 kg/km177 kg/km Send inquiry
L0315501450 x 0,14 mm²11 mm150 kg/km183 kg/km Send inquiry
L0315521452 x 0,14 mm²11 mm155 kg/km187 kg/km Send inquiry
L0315162516 x 0,25 mm²7,4 mm71 kg/km91 kg/km Send inquiry
L0315561456 x 0,14 mm²11,3 mm166 kg/km202 kg/km Send inquiry
L0315152515 x 0,25 mm²7,4 mm68 kg/km90 kg/km Send inquiry
L0315611461 x 0,14 mm²11,6 mm176 kg/km213 kg/km Send inquiry
L0315142514 x 0,25 mm²7,1 mm64 kg/km81 kg/km Send inquiry
L031501251 x 0,25 mm²2,7 mm8 kg/km13 kg/km Send inquiry
L0315122512 x 0,25 mm²6,8 mm50 kg/km73 kg/km Send inquiry
L0315102510 x 0,25 mm²6,6 mm42 kg/km65 kg/km Send inquiry
L031502252 x 0,25 mm²3,9 mm15 kg/km23 kg/km Send inquiry
L031503253 x 0,25 mm²4,1 mm18 kg/km26 kg/km Send inquiry
L031509259 x 0,25 mm²6,5 mm39 kg/km67 kg/km Send inquiry
L031504254 x 0,25 mm²4,4 mm22 kg/km31 kg/km Send inquiry
L031508258 x 0,25 mm²6,1 mm35 kg/km59 kg/km Send inquiry
L031507257 x 0,25 mm²5,3 mm32 kg/km46 kg/km Send inquiry
L031505255 x 0,25 mm²4,9 mm25 kg/km38 kg/km Send inquiry
L031506256 x 0,25 mm²5,3 mm30 kg/km45 kg/km Send inquiry
L031508348 x 0,34 mm²7,2 mm45 kg/km81 kg/km Send inquiry
L0315103410 x 0,34 mm²7,8 mm63 kg/km89 kg/km Send inquiry
L0315123412 x 0,34 mm²8 mm70 kg/km100 kg/km Send inquiry
L0315143414 x 0,34 mm²8,8 mm78 kg/km121 kg/km Send inquiry
L0315163416 x 0,34 mm²9,2 mm87 kg/km134 kg/km Send inquiry
L0315183418 x 0,34 mm²9,7 mm108 kg/km150 kg/km Send inquiry
L0315203420 x 0,34 mm²10,1 mm124 kg/km163 kg/km Send inquiry
L0315213421 x 0,34 mm²10,7 mm127 kg/km185 kg/km Send inquiry
L0315243424 x 0,34 mm²11,3 mm140 kg/km200 kg/km Send inquiry
L0315273427 x 0,34 mm²11,5 mm151 kg/km216 kg/km Send inquiry
L0315303430 x 0,34 mm²11,9 mm162 kg/km233 kg/km Send inquiry
L0315323432 x 0,34 mm²12,7 mm171 kg/km257 kg/km Send inquiry
L0315363436 x 0,34 mm²13,2 mm188 kg/km285 kg/km Send inquiry
L0315403440 x 0,34 mm²14 mm208 kg/km316 kg/km Send inquiry
L0315423442 x 0,34 mm²14 mm215 kg/km326 kg/km Send inquiry
L0315443444 x 0,34 mm²14,6 mm223 kg/km334 kg/km Send inquiry
L0315483448 x 0,34 mm²14,8 mm243 kg/km355 kg/km Send inquiry
L0315503450 x 0,34 mm²15,8 mm248 kg/km402 kg/km Send inquiry
L0315523452 x 0,34 mm²15,8 mm273 kg/km412 kg/km Send inquiry
L0315563456 x 0,34 mm²16,2 mm292 kg/km437 kg/km Send inquiry
L0315613461 x 0,34 mm²16,7 mm316 kg/km464 kg/km Send inquiry
L031501501 x 0,50 mm²3,2 mm13,3 kg/km19 kg/km Send inquiry
L031502502 x 0,50 mm²5 mm23,5 kg/km36 kg/km Send inquiry
L031503503 x 0,50 mm²5,2 mm28,4 kg/km42 kg/km Send inquiry
L031504504 x 0,50 mm²5,6 mm35,1 kg/km51 kg/km Send inquiry
L031505505 x 0,50 mm²6,3 mm41,6 kg/km64 kg/km Send inquiry
L031506506 x 0,50 mm²6,8 mm48,3 kg/km75 kg/km Send inquiry
L031507507 x 0,50 mm²6,8 mm53,1 kg/km78 kg/km Send inquiry
L031508508 x 0,50 mm²7,8 mm62 kg/km99 kg/km Send inquiry
L0315105010 x 0,50 mm²8,8 mm74,5 kg/km115 kg/km Send inquiry
L0315125012 x 0,50 mm²9 mm84,2 kg/km128 kg/km Send inquiry
L0315145014 x 0,50 mm²9,4 mm93,5 kg/km143 kg/km Send inquiry
L0315165016 x 0,50 mm²9,9 mm105,9 kg/km162 kg/km Send inquiry
L0315185018 x 0,50 mm²10,6 mm133,9 kg/km191 kg/km Send inquiry
L0315205020 x 0,50 mm²11,1 mm143,8 kg/km208 kg/km Send inquiry
L0315215021 x 0,50 mm²11,6 mm154,9 kg/km224 kg/km Send inquiry
L0315245024 x 0,50 mm²12,6 mm169,7 kg/km248 kg/km Send inquiry
L0315255025 x 0,50 mm²12,8 mm174,6 kg/km256 kg/km Send inquiry
L0315275027 x 0,50 mm²12,8 mm184,2 kg/km269 kg/km Send inquiry
L0315305030 x 0,50 mm²13,2 mm203,6 kg/km293 kg/km Send inquiry
L0315325032 x 0,50 mm²13,7 mm213,5 kg/km311 kg/km Send inquiry
L0315365036 x 0,50 mm²14,2 mm239 kg/km344 kg/km Send inquiry
L0315405040 x 0,50 mm²15,8 mm289,4 kg/km416 kg/km Send inquiry
L0315425042 x 0,50 mm²15,8 mm299 kg/km429 kg/km Send inquiry
L0315505050 x 0,50 mm²17 mm349,7 kg/km487 kg/km Send inquiry
L0315525052 x 0,50 mm²17 mm359,3 kg/km500 kg/km Send inquiry
L0315615061 x 0,50 mm²18 mm403,7 kg/km565 kg/km Send inquiry
L031501751 x 0,75 mm²3,5 mm15,7 kg/km22 kg/km Send inquiry
L031502752 x 0,75 mm²5,6 mm30,3 kg/km45 kg/km Send inquiry
L031503753 x 0,75 mm²6,1 mm37,6 kg/km56 kg/km Send inquiry
L031504754 x 0,75 mm²6,6 mm46,5 kg/km68 kg/km Send inquiry
L031505755 x 0,75 mm²7,1 mm55,7 kg/km83 kg/km Send inquiry
L031506756 x 0,75 mm²7,7 mm66,8 kg/km99 kg/km Send inquiry
L031507757 x 0,75 mm²7,7 mm74 kg/km103 kg/km Send inquiry
L031508758 x 0,75 mm²9,2 mm83,8 kg/km136 kg/km Send inquiry
L0315107510 x 0,75 mm²10 mm101,1 kg/km150 kg/km Send inquiry
L0315127512 x 0,75 mm²10,5 mm133,9 kg/km183 kg/km Send inquiry
L0315147514 x 0,75 mm²11 mm148,5 kg/km203 kg/km Send inquiry
L0315167516 x 0,75 mm²11,5 mm169,2 kg/km231 kg/km Send inquiry
L0315187518 x 0,75 mm²12,4 mm184 kg/km264 kg/km Send inquiry
L0315217521 x 0,75 mm²13,6 mm211 kg/km307 kg/km Send inquiry
L0315247524 x 0,75 mm²14,4 mm239,1 kg/km333 kg/km Send inquiry
L0315277527 x 0,75 mm²14,7 mm260,9 kg/km363 kg/km Send inquiry
L0315307530 x 0,75 mm²15,8 mm313,4 kg/km428 kg/km Send inquiry
L0315327532 x 0,75 mm²16,3 mm328,3 kg/km453 kg/km Send inquiry
L0315367536 x 0,75 mm²16,9 mm357,8 kg/km496 kg/km Send inquiry
L031501801 x 1,00 mm²3,6 mm18,2 kg/km25 kg/km Send inquiry
L031502802 x 1,00 mm²5,8 mm35,2 kg/km50 kg/km Send inquiry
L031503803 x 1,00 mm²6,3 mm46,4 kg/km64 kg/km Send inquiry
L031504804 x 1,00 mm²6,8 mm57,9 kg/km79 kg/km Send inquiry
L031505805 x 1,00 mm²7,4 mm69,6 kg/km96 kg/km Send inquiry
L031506806 x 1,00 mm²8 mm81,3 kg/km113 kg/km Send inquiry
L031507807 x 1,00 mm²8 mm90,9 kg/km120 kg/km Send inquiry
L031501851 x 1,50 mm²3,8 mm24,7 kg/km31 kg/km Send inquiry
L031502852 x 1,50 mm²6,5 mm46,5 kg/km68 kg/km Send inquiry
L031503853 x 1,50 mm²6,8 mm62,7 kg/km79 kg/km Send inquiry
L031504854 x 1,50 mm²7,4 mm79,2 kg/km98 kg/km Send inquiry
L031505855 x 1,50 mm²8,6 mm95,8 kg/km131 kg/km Send inquiry
L031506856 x 1,50 mm²9,3 mm112,7 kg/km155 kg/km Send inquiry
L031507857 x 1,50 mm²9,3 mm127,1 kg/km164 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø ± 5%
Copper figure
Cable weight ≈
L03150214
2 x 0,14 mm²
3,6 mm
12,6 kg/km
18 kg/km
L03150314
3 x 0,14 mm²
3,8 mm
14,1 kg/km
21 kg/km
L03150414
4 x 0,14 mm²
4 mm
15,9 kg/km
24 kg/km
L03151825
18 x 0,25 mm²
7,8 mm
80 kg/km
102 kg/km
L03150734
7 x 0,34 mm²
6,4 mm
42 kg/km
65 kg/km
L03152025
20 x 0,25 mm²
8,5 mm
96 kg/km
117 kg/km
L03150634
6 x 0,34 mm²
6,4 mm
37 kg/km
64 kg/km
L03150514
5 x 0,14 mm²
4,3 mm
19,5 kg/km
29 kg/km
L03150534
5 x 0,34 mm²
5,7 mm
30 kg/km
52 kg/km
L03150614
6 x 0,14 mm²
4,6 mm
22 kg/km
33 kg/km
L03152125
21 x 0,25 mm²
8,8 mm
105 kg/km
125 kg/km
L03150434
4 x 0,34 mm²
5,3 mm
25 kg/km
43 kg/km
L03152425
24 x 0,25 mm²
9,3 mm
115 kg/km
133 kg/km
L03150714
7 x 0,14 mm²
4,6 mm
24 kg/km
33 kg/km
L03150334
3 x 0,34 mm²
4,9 mm
21 kg/km
35 kg/km
L03150814
8 x 0,14 mm²
5,4 mm
26 kg/km
44 kg/km
L03152525
25 x 0,25 mm²
9,5 mm
117 kg/km
139 kg/km
L03151014
10 x 0,14 mm²
5,8 mm
29 kg/km
47 kg/km
L03152725
27 x 0,25 mm²
9,5 mm
120 kg/km
145 kg/km
L03150234
2 x 0,34 mm²
4,5 mm
17 kg/km
29 kg/km
L03153025
30 x 0,25 mm²
9,8 mm
132 kg/km
157 kg/km
L03156125
61 x 0,25 mm²
13,4 mm
287 kg/km
306 kg/km
L03151214
12 x 0,14 mm²
6,2 mm
32 kg/km
55 kg/km
L03151414
14 x 0,14 mm²
6,4 mm
35 kg/km
61 kg/km
L03155625
56 x 0,25 mm²
13 mm
259 kg/km
288 kg/km
L03153225
32 x 0,25 mm²
10,1 mm
138 kg/km
166 kg/km
L03153625
36 x 0,25 mm²
10,7 mm
152 kg/km
195 kg/km
L03155225
52 x 0,25 mm²
12,7 mm
234 kg/km
269 kg/km
L03151614
16 x 0,14 mm²
6,7 mm
49 kg/km
69 kg/km
L03154025
40 x 0,25 mm²
11,3 mm
164 kg/km
217 kg/km
L03155025
50 x 0,25 mm²
12,7 mm
222 kg/km
262 kg/km
L03151814
18 x 0,14 mm²
7 mm
54 kg/km
75 kg/km
L03154825
48 x 0,25 mm²
12,4 mm
209 kg/km
254 kg/km
L03152014
20 x 0,14 mm²
7,3 mm
58 kg/km
82 kg/km
L03154425
44 x 0,25 mm²
11,8 mm
180 kg/km
229 kg/km
L03152114
21 x 0,14 mm²
7,6 mm
60 kg/km
87 kg/km
L03152414
24 x 0,14 mm²
8 mm
74 kg/km
92 kg/km
L03152514
25 x 0,14 mm²
8,6 mm
78 kg/km
102 kg/km
L03152714
27 x 0,14 mm²
8,6 mm
85 kg/km
106 kg/km
L03153014
30 x 0,14 mm²
8,8 mm
98 kg/km
116 kg/km
L03153214
32 x 0,14 mm²
9,1 mm
108 kg/km
122 kg/km
L03153614
36 x 0,14 mm²
9,4 mm
117 kg/km
133 kg/km
L03154014
40 x 0,14 mm²
10 mm
126 kg/km
148 kg/km
L03154414
44 x 0,14 mm²
10,6 mm
138 kg/km
168 kg/km
L03154814
48 x 0,14 mm²
10,8 mm
145 kg/km
177 kg/km
L03155014
50 x 0,14 mm²
11 mm
150 kg/km
183 kg/km
L03155214
52 x 0,14 mm²
11 mm
155 kg/km
187 kg/km
L03151625
16 x 0,25 mm²
7,4 mm
71 kg/km
91 kg/km
L03155614
56 x 0,14 mm²
11,3 mm
166 kg/km
202 kg/km
L03151525
15 x 0,25 mm²
7,4 mm
68 kg/km
90 kg/km
L03156114
61 x 0,14 mm²
11,6 mm
176 kg/km
213 kg/km
L03151425
14 x 0,25 mm²
7,1 mm
64 kg/km
81 kg/km
L03150125
1 x 0,25 mm²
2,7 mm
8 kg/km
13 kg/km
L03151225
12 x 0,25 mm²
6,8 mm
50 kg/km
73 kg/km
L03151025
10 x 0,25 mm²
6,6 mm
42 kg/km
65 kg/km
L03150225
2 x 0,25 mm²
3,9 mm
15 kg/km
23 kg/km
L03150325
3 x 0,25 mm²
4,1 mm
18 kg/km
26 kg/km
L03150925
9 x 0,25 mm²
6,5 mm
39 kg/km
67 kg/km
L03150425
4 x 0,25 mm²
4,4 mm
22 kg/km
31 kg/km
L03150825
8 x 0,25 mm²
6,1 mm
35 kg/km
59 kg/km
L03150725
7 x 0,25 mm²
5,3 mm
32 kg/km
46 kg/km
L03150525
5 x 0,25 mm²
4,9 mm
25 kg/km
38 kg/km
L03150625
6 x 0,25 mm²
5,3 mm
30 kg/km
45 kg/km
L03150834
8 x 0,34 mm²
7,2 mm
45 kg/km
81 kg/km
L03151034
10 x 0,34 mm²
7,8 mm
63 kg/km
89 kg/km
L03151234
12 x 0,34 mm²
8 mm
70 kg/km
100 kg/km
L03151434
14 x 0,34 mm²
8,8 mm
78 kg/km
121 kg/km
L03151634
16 x 0,34 mm²
9,2 mm
87 kg/km
134 kg/km
L03151834
18 x 0,34 mm²
9,7 mm
108 kg/km
150 kg/km
L03152034
20 x 0,34 mm²
10,1 mm
124 kg/km
163 kg/km
L03152134
21 x 0,34 mm²
10,7 mm
127 kg/km
185 kg/km
L03152434
24 x 0,34 mm²
11,3 mm
140 kg/km
200 kg/km
L03152734
27 x 0,34 mm²
11,5 mm
151 kg/km
216 kg/km
L03153034
30 x 0,34 mm²
11,9 mm
162 kg/km
233 kg/km
L03153234
32 x 0,34 mm²
12,7 mm
171 kg/km
257 kg/km
L03153634
36 x 0,34 mm²
13,2 mm
188 kg/km
285 kg/km
L03154034
40 x 0,34 mm²
14 mm
208 kg/km
316 kg/km
L03154234
42 x 0,34 mm²
14 mm
215 kg/km
326 kg/km
L03154434
44 x 0,34 mm²
14,6 mm
223 kg/km
334 kg/km
L03154834
48 x 0,34 mm²
14,8 mm
243 kg/km
355 kg/km
L03155034
50 x 0,34 mm²
15,8 mm
248 kg/km
402 kg/km
L03155234
52 x 0,34 mm²
15,8 mm
273 kg/km
412 kg/km
L03155634
56 x 0,34 mm²
16,2 mm
292 kg/km
437 kg/km
L03156134
61 x 0,34 mm²
16,7 mm
316 kg/km
464 kg/km
L03150150
1 x 0,50 mm²
3,2 mm
13,3 kg/km
19 kg/km
L03150250
2 x 0,50 mm²
5 mm
23,5 kg/km
36 kg/km
L03150350
3 x 0,50 mm²
5,2 mm
28,4 kg/km
42 kg/km
L03150450
4 x 0,50 mm²
5,6 mm
35,1 kg/km
51 kg/km
L03150550
5 x 0,50 mm²
6,3 mm
41,6 kg/km
64 kg/km
L03150650
6 x 0,50 mm²
6,8 mm
48,3 kg/km
75 kg/km
L03150750
7 x 0,50 mm²
6,8 mm
53,1 kg/km
78 kg/km
L03150850
8 x 0,50 mm²
7,8 mm
62 kg/km
99 kg/km
L03151050
10 x 0,50 mm²
8,8 mm
74,5 kg/km
115 kg/km
L03151250
12 x 0,50 mm²
9 mm
84,2 kg/km
128 kg/km
L03151450
14 x 0,50 mm²
9,4 mm
93,5 kg/km
143 kg/km
L03151650
16 x 0,50 mm²
9,9 mm
105,9 kg/km
162 kg/km
L03151850
18 x 0,50 mm²
10,6 mm
133,9 kg/km
191 kg/km
L03152050
20 x 0,50 mm²
11,1 mm
143,8 kg/km
208 kg/km
L03152150
21 x 0,50 mm²
11,6 mm
154,9 kg/km
224 kg/km
L03152450
24 x 0,50 mm²
12,6 mm
169,7 kg/km
248 kg/km
L03152550
25 x 0,50 mm²
12,8 mm
174,6 kg/km
256 kg/km
L03152750
27 x 0,50 mm²
12,8 mm
184,2 kg/km
269 kg/km
L03153050
30 x 0,50 mm²
13,2 mm
203,6 kg/km
293 kg/km
L03153250
32 x 0,50 mm²
13,7 mm
213,5 kg/km
311 kg/km
L03153650
36 x 0,50 mm²
14,2 mm
239 kg/km
344 kg/km
L03154050
40 x 0,50 mm²
15,8 mm
289,4 kg/km
416 kg/km
L03154250
42 x 0,50 mm²
15,8 mm
299 kg/km
429 kg/km
L03155050
50 x 0,50 mm²
17 mm
349,7 kg/km
487 kg/km
L03155250
52 x 0,50 mm²
17 mm
359,3 kg/km
500 kg/km
L03156150
61 x 0,50 mm²
18 mm
403,7 kg/km
565 kg/km
L03150175
1 x 0,75 mm²
3,5 mm
15,7 kg/km
22 kg/km
L03150275
2 x 0,75 mm²
5,6 mm
30,3 kg/km
45 kg/km
L03150375
3 x 0,75 mm²
6,1 mm
37,6 kg/km
56 kg/km
L03150475
4 x 0,75 mm²
6,6 mm
46,5 kg/km
68 kg/km
L03150575
5 x 0,75 mm²
7,1 mm
55,7 kg/km
83 kg/km
L03150675
6 x 0,75 mm²
7,7 mm
66,8 kg/km
99 kg/km
L03150775
7 x 0,75 mm²
7,7 mm
74 kg/km
103 kg/km
L03150875
8 x 0,75 mm²
9,2 mm
83,8 kg/km
136 kg/km
L03151075
10 x 0,75 mm²
10 mm
101,1 kg/km
150 kg/km
L03151275
12 x 0,75 mm²
10,5 mm
133,9 kg/km
183 kg/km
L03151475
14 x 0,75 mm²
11 mm
148,5 kg/km
203 kg/km
L03151675
16 x 0,75 mm²
11,5 mm
169,2 kg/km
231 kg/km
L03151875
18 x 0,75 mm²
12,4 mm
184 kg/km
264 kg/km
L03152175
21 x 0,75 mm²
13,6 mm
211 kg/km
307 kg/km
L03152475
24 x 0,75 mm²
14,4 mm
239,1 kg/km
333 kg/km
L03152775
27 x 0,75 mm²
14,7 mm
260,9 kg/km
363 kg/km
L03153075
30 x 0,75 mm²
15,8 mm
313,4 kg/km
428 kg/km
L03153275
32 x 0,75 mm²
16,3 mm
328,3 kg/km
453 kg/km
L03153675
36 x 0,75 mm²
16,9 mm
357,8 kg/km
496 kg/km
L03150180
1 x 1,00 mm²
3,6 mm
18,2 kg/km
25 kg/km
L03150280
2 x 1,00 mm²
5,8 mm
35,2 kg/km
50 kg/km
L03150380
3 x 1,00 mm²
6,3 mm
46,4 kg/km
64 kg/km
L03150480
4 x 1,00 mm²
6,8 mm
57,9 kg/km
79 kg/km
L03150580
5 x 1,00 mm²
7,4 mm
69,6 kg/km
96 kg/km
L03150680
6 x 1,00 mm²
8 mm
81,3 kg/km
113 kg/km
L03150780
7 x 1,00 mm²
8 mm
90,9 kg/km
120 kg/km
L03150185
1 x 1,50 mm²
3,8 mm
24,7 kg/km
31 kg/km
L03150285
2 x 1,50 mm²
6,5 mm
46,5 kg/km
68 kg/km
L03150385
3 x 1,50 mm²
6,8 mm
62,7 kg/km
79 kg/km
L03150485
4 x 1,50 mm²
7,4 mm
79,2 kg/km
98 kg/km
L03150585
5 x 1,50 mm²
8,6 mm
95,8 kg/km
131 kg/km
L03150685
6 x 1,50 mm²
9,3 mm
112,7 kg/km
155 kg/km
L03150785
7 x 1,50 mm²
9,3 mm
127,1 kg/km
164 kg/km

Other dimensions and colours are possible on request.

More products in PVC data cables

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
+49 (0)2162 898-0
Monday to Thursday, 7.30–16.30
Friday, 07.30–15.00
