LiYDY-CY TP

PVC data cable, twisted pairs with pair-wise and overall copper screen

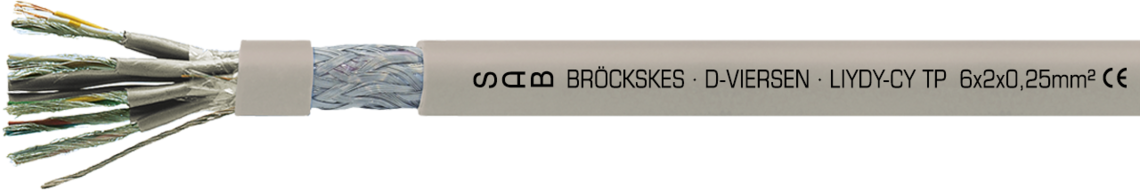

Marking for LiYDY-CY TP 03410625: SAB BRÖCKSKES · D-VIERSEN · LIYDY-CY TP 6x2x0,25mm² CE

Application

LiYDY-CY TP is a paired PVC data cable with pair-wise and overall copper screen. Applications are in measuring, control, and voice signals, e.g. in scales and low-voltage switchboard plant engineering,for interference-prone operation controls, in control and measuring technologies, and in high-sensitive data-processing systems.

Outstanding features

very good EMV characteristic
flexible

Construction

Conductor	bare copper strands with reference to VDE 0812
Insulation	PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
Colour code	with reference to DIN 47100
Stranding	2 cores twisted to pairs
Screen	wrapped pair-wise with tinned copper wires
Sheath	pair-wise PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Stranding	pairs in concentric layers
Wrapping	PETP foil
Screen	tinned copper braiding with a tinned copper drain wire (equal to conductor section)
Sheath material	PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
Sheath colour	grey (RAL 7032)

Conductor

bare copper strands with reference to VDE 0812

Insulation

PVC, TI2

acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

2 cores twisted to pairs

Screen

wrapped pair-wise with tinned copper wires

Sheath

pair-wise PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Stranding

pairs in concentric layers

Wrapping

PETP foil

Screen

tinned copper braiding with a tinned copper drain wire (equal to conductor section)

Sheath material

PVC, TM2

acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage	< 0,25 mm² = max. 350 V ≥ 0,25 mm² = max. 500 V
Testing voltage	core/core 1500 V core/screen 1200 V
Min. bending radius	fixed laying: 5 x d flexible application: 10 x d
Capacitance	see "Technical Data" - Capacitance
Radiation resistance	8 x 10^7 cJ/kg
Temperature range	fixed laying: -30/+70 °C flexible application: -5/+70 °C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
Oil resistance	acc. to internal standard
Chem. resistance	see "Technical Data" - Chemical resistance
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

≥ 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Capacitance

see "Technical Data" - Capacitance

Radiation resistance

8 x 10^7 cJ/kg

Temperature range

fixed laying: -30/+70 °C

flexible application: -5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Oil resistance

acc. to internal standard

Chem. resistance

see "Technical Data" - Chemical resistance

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of pairs x cross section	Outer-ø ± 10%	Copper figure	Cable weight ≈
L03410214	2 x 2 x 0,14 mm²	8,1 mm	35,6 kg/km	82 kg/km	Send inquiry
L03410314	3 x 2 x 0,14 mm²	9,2 mm	45,4 kg/km	111 kg/km	Send inquiry
L03410414	4 x 2 x 0,14 mm²	9,9 mm	55,4 kg/km	127 kg/km	Send inquiry
L03410614	6 x 2 x 0,14 mm²	11,8 mm	95 kg/km	187 kg/km	Send inquiry
L03410814	8 x 2 x 0,14 mm²	13,8 mm	115,6 kg/km	245 kg/km	Send inquiry
L03411014	10 x 2 x 0,14 mm²	14,8 mm	153,9 kg/km	297 kg/km	Send inquiry
L03411214	12 x 2 x 0,14 mm²	15,6 mm	179,5 kg/km	331 kg/km	Send inquiry
L03411414	14 x 2 x 0,14 mm²	15,7 mm	189,7 kg/km	352 kg/km	Send inquiry
L03411614	16 x 2 x 0,14 mm²	17,3 mm	221,7 kg/km	415 kg/km	Send inquiry
L03412414	24 x 2 x 0,14 mm²	20,4 mm	297,4 kg/km	571 kg/km	Send inquiry
L03410225	2 x 2 x 0,25 mm²	8,4 mm	41,2 kg/km	92 kg/km	Send inquiry
L03410325	3 x 2 x 0,25 mm²	9,4 mm	53,2 kg/km	122 kg/km	Send inquiry
L03410425	4 x 2 x 0,25 mm²	11,6 mm	89,2 kg/km	176 kg/km	Send inquiry
L03410625	6 x 2 x 0,25 mm²	13,9 mm	114,5 kg/km	241 kg/km	Send inquiry
L03410825	8 x 2 x 0,25 mm²	15,1 mm	157,2 kg/km	313 kg/km	Send inquiry
L03411025	10 x 2 x 0,25 mm²	16,5 mm	187,7 kg/km	354 kg/km	Send inquiry
L03411225	12 x 2 x 0,25 mm²	16,9 mm	208,1 kg/km	389 kg/km	Send inquiry
L03411425	14 x 2 x 0,25 mm²	17,4 mm	238,2 kg/km	426 kg/km	Send inquiry
L03411625	16 x 2 x 0,25 mm²	18,7 mm	259,7 kg/km	480 kg/km	Send inquiry
L03412425	24 x 2 x 0,25 mm²	23,7 mm	365,9 kg/km	709 kg/km	Send inquiry
L03410234	2 x 2 x 0,34 mm²	10,6 mm	57,4 kg/km	133 kg/km	Send inquiry
L03410334	3 x 2 x 0,34 mm²	11,2 mm	70,9 kg/km	152 kg/km	Send inquiry
L03410434	4 x 2 x 0,34 mm²	12,2 mm	99,9 kg/km	198 kg/km	Send inquiry
L03410634	6 x 2 x 0,34 mm²	14,6 mm	142 kg/km	280 kg/km	Send inquiry
L03410834	8 x 2 x 0,34 mm²	17,1 mm	201,3 kg/km	382 kg/km	Send inquiry
L03411034	10 x 2 x 0,34 mm²	18,4 mm	223,9 kg/km	429 kg/km	Send inquiry
L03411234	12 x 2 x 0,34 mm²	18,8 mm	249,2 kg/km	474 kg/km	Send inquiry
L03411434	14 x 2 x 0,34 mm²	20,6 mm	316,6 kg/km	574 kg/km	Send inquiry
L03411634	16 x 2 x 0,34 mm²	20,9 mm	343,2 kg/km	626 kg/km	Send inquiry
L03412434	24 x 2 x 0,34 mm²	24,8 mm	446,5 kg/km	851 kg/km	Send inquiry
L03410250	2 x 2 x 0,50 mm²	10,8 mm	61,8 kg/km	142 kg/km	Send inquiry
L03410350	3 x 2 x 0,50 mm²	11,2 mm	77,8 kg/km	167 kg/km	Send inquiry
L03410450	4 x 2 x 0,50 mm²	13,4 mm	115,6 kg/km	233 kg/km	Send inquiry
L03410650	6 x 2 x 0,50 mm²	15 mm	174,3 kg/km	322 kg/km	Send inquiry
L03410850	8 x 2 x 0,50 mm²	18,2 mm	227,8 kg/km	433 kg/km	Send inquiry
L03411050	10 x 2 x 0,50 mm²	19,9 mm	270,8 kg/km	505 kg/km	Send inquiry
L03411250	12 x 2 x 0,50 mm²	20,8 mm	303,7 kg/km	555 kg/km	Send inquiry
L03411450	14 x 2 x 0,50 mm²	21,4 mm	336,2 kg/km	607 kg/km	Send inquiry
L03411650	16 x 2 x 0,50 mm²	23,1 mm	393,7 kg/km	696 kg/km	Send inquiry
L03412450	24 x 2 x 0,50 mm²	26,5 mm	533,9 kg/km	960 kg/km	Send inquiry
