CATLine CAT 6A R flex

halogen-free, continuously flexible CAT 6A Industrial Ethernet Cables for Railway Technology

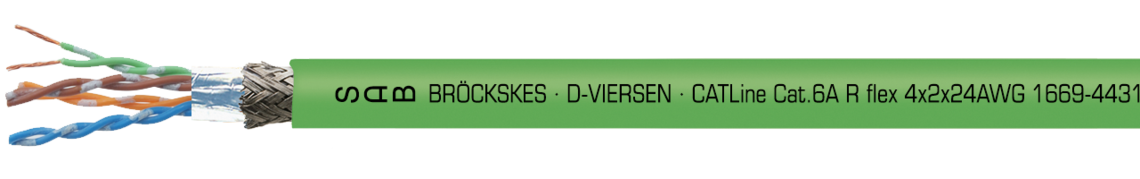

Marking for CATLine CAT 6A R flex 16694631:
SAB BRÖCKSKES · D-VIERSEN · Cat. 6A R flex 4x2x26AWG 1669-4631 CE

Marking for CATLine CAT 6A R flex 16694631: SAB BRÖCKSKES · D-VIERSEN · Cat. 6A R flex 4x2x26AWG 1669-4631 CE

Application

This flexible CAT 6A industrial ethernet cable is especially for use in rail vehicles and protected installation in the interior for door control or in protecting tubes for outdoor laying at the bogie. The category 6A cable is appropriate for light and medium mechanical stress.

Outstanding features

  • continuously flexible
  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • good oil and fuel resistance
  • good ozone, UV and weather resistance
  • good acid and alkalines resistance
  • good against aggressive chemicals
  • suitable for outdoor installation
  • fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-3
  • flame retardant acc. to UN/ECE R118

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

1669-4431: 4 x 2 x 24 AWG

1669-4631: 4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special SABIX®

Colour code

white-blue/blue, white-orange/orange,

white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

special SABIX®

Sheath colour

green (similar RAL 6018)

Dimension

1669-4431: 4 x 2 x 24 AWG

1669-4631: 4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special SABIX®

Colour code

white-blue/blue, white-orange/orange,

white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

foil

Screen

alu foil and tinned copper braiding

Sheath material

special SABIX®

Sheath colour

green (similar RAL 6018)

Technical data

Item number

1669-4431

1669-4631

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

continuously flexible: 15 x d

Temperature range VDE

fixed laying: - 50°C / + 90°C

flexible application: - 40°C / + 90°C

Halogen-free

acc. to DIN EN 50306-1 + DIN EN 50264-1.

Development of HCl is ≤ 0,5% acc. to DIN EN 50267-2-1.

pH-value is ≥ 4,3 acc. to DIN EN 50267-2-2.

Conductivity is ≤ 10,0 μS/mm acc. to DIN EN 50267-2-2.

Fluoric content ≤ 0,1% acc. to DIN EN 60684-2

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Flame retardant acc. to ISO 6722 (UN/ECE R118)

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Characteristic impedance

100Ω ± 10Ω with reference to

EN 50288-10-2 / CAT 6A

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Item number

1669-4431

1669-4631

Peak operating voltage

max. 90 V

Testing voltage

core/core 750 V

core/screen 750 V

Min. bending radius

fixed laying: 5 x d

flexible application: 12 x d

continuously flexible: 15 x d

Temperature range VDE

fixed laying: - 50°C / + 90°C

flexible application: - 40°C / + 90°C

Halogen-free

acc. to DIN EN 50306-1 + DIN EN 50264-1.

Development of HCl is ≤ 0,5% acc. to DIN EN 50267-2-1.

pH-value is ≥ 4,3 acc. to DIN EN 50267-2-2.

Conductivity is ≤ 10,0 μS/mm acc. to DIN EN 50267-2-2.

Fluoric content ≤ 0,1% acc. to DIN EN 60684-2

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Flame retardant acc. to ISO 6722 (UN/ECE R118)

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to EN 50305 + VDE 0260-305

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Characteristic impedance

100Ω ± 10Ω with reference to

EN 50288-10-2 / CAT 6A

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø Copper figure Cable weight ≈
166944314 x 2 x 24 AWG1,29 mm7,9 mm42,2 kg/km80 kg/km Send inquiry
166946314 x 2 x 26 AWG0,99 mm6,5 mm29,7 kg/km56 kg/km Send inquiry
item no.
Dimension
max. core-ø
Outer-ø
Copper figure
Cable weight ≈
16694431
4 x 2 x 24 AWG
1,29 mm
7,9 mm
42,2 kg/km
80 kg/km
16694631
4 x 2 x 26 AWG
0,99 mm
6,5 mm
29,7 kg/km
56 kg/km

Other dimensions and colours are possible on request.
