CATLine CAT 5e R
halogen-free Industrial Ethernet Cables for Railway Technology

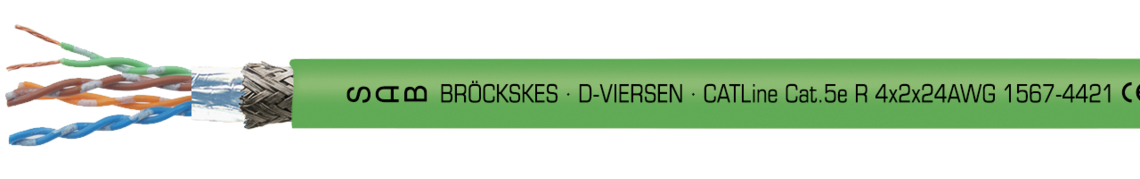

Marking example: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.5e R 4x2x24AWG 1567-4421 CE
Application
The CAT 5e data cable according to EN 45545-2 is especially suitable for use in rail vehicles. The halogen-free cable meets the fire protection requirements R15 (EL1A) according to EN 45545-2 for the hazard levels HL1-3.
Especially for use in rail vehicles.
Outstanding features
- halogen-free
- no flame propagation
- flame retardant and self-extinguishing
- good against aggressive chemicals
- fulfils fire protection requirements R15 (EL1A) acc. to EN 45545-2 for hazard levels HL1-3
- flame retardant acc. to UN/ECE R118
- PFAS-free
Additional information
also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 2 x 2 x 24 AWG 2 x 2 x 22 AWG 4 x 2 x 24 AWG 2 x 2 x 26 AWG |
|---|---|
| Conductor | bare copper strands, fine wires |
| Insulation | PE |
| Colour code | 2 x 2 x 24 AWG and 2 x 2 x 22 AWG: blue, yellow, white, orange
4 x 2 x 24 AWG: white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | 2 x 2 x 24 AWG and 2 x 2 x 22 AWG: star quad 4 x 2 x 24 AWG: cores twisted to pairs, pairs together |
| Wrapping | foil |
| Screen | alu foil and tinned copper braiding |
| Sheath material | Special SABIX® |
| Sheath colour | green (similar RAL 6018) |
2 x 2 x 24 AWG
2 x 2 x 22 AWG
4 x 2 x 24 AWG
2 x 2 x 26 AWG
bare copper strands, fine wires
PE
2 x 2 x 24 AWG and 2 x 2 x 22 AWG:
blue, yellow, white, orange
4 x 2 x 24 AWG:
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
2 x 2 x 24 AWG and 2 x 2 x 22 AWG: star quad
4 x 2 x 24 AWG: cores twisted to pairs, pairs together
foil
alu foil and tinned copper braiding
Special SABIX®
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Testing voltage | core/core 7500 V core/screen 750 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 12 x d |
| Temperature range | fixed laying: -40/+70°C flexible application: -30/+70°C |
| Halogen-free | acc. to EN 50306-1 + EN 50264-1. Development of HCl is ≤ 0,5% acc. to IEC 60754-1. pH-value is ≥ 4,3 acc. to IEC 60754-2. Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2. Fluoric content ≤ 0,1% acc. to IEC 60684-2 |
| Flame propagation | no flame propagation |
| Flame retardant | acc. to ISO 6722 (UN/ECE R118) |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Toxicity | acc. to EN 50305 + VDE 0260-305 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-2-2 / CAT 5 |
| Flexibility | good |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
core/core 7500 V
core/screen 750 V
fixed laying: 5 x d
flexible application: 12 x d
fixed laying: -40/+70°C
flexible application: -30/+70°C
acc. to EN 50306-1 + EN 50264-1.
Development of HCl is ≤ 0,5% acc. to IEC 60754-1.
pH-value is ≥ 4,3 acc. to IEC 60754-2.
Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.
Fluoric content ≤ 0,1% acc. to IEC 60684-2
no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.
acc. to ISO 6722 (UN/ECE R118)
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to IEC 61034 + VDE 0482-1034
acc. to EN 50305 + VDE 0260-305
100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency
with reference to EN 50288-2-2 / CAT 5
good
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L15672625 | 2 x 2 x 26 AWG | 1,05 mm | 4,0 mm | 16,4 kg/km | 25 kg/km | Send inquiry |
| L15679002 | 2 x 2 x 24 AWG | 1,30 mm | 5,2 mm | 22,7 kg/km | 41 kg/km | Send inquiry |
| L15679004 | 2 x 2 x 22 AWG | 1,60 mm | 5,9 mm | 29,1 kg/km | 52 kg/km | Send inquiry |
| L15674421 | 4 x 2 x 24 AWG | 1,30 mm | 8,0 mm | 41,2 kg/km | 70 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
