CATLine CAT 5e BL

CAT 5e halogen-free Ethernet cable with ABS Type Approval and UL recognitionfor maritime use

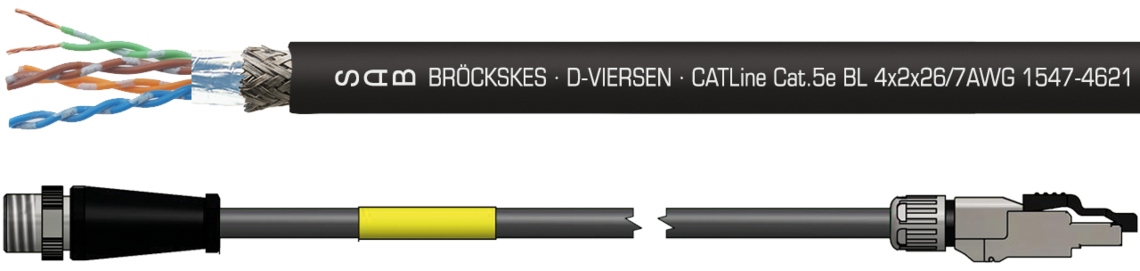

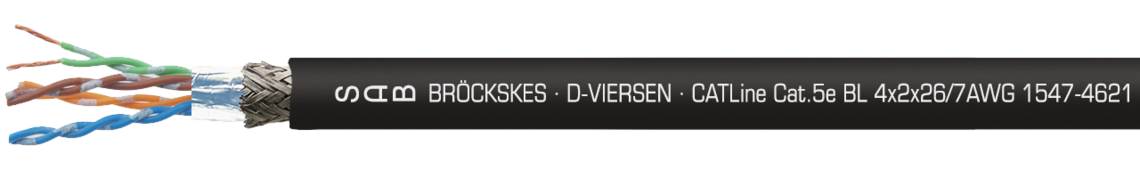

Marking for CATLine CAT 5e BL 15474621:
SAB BRÖCKSKES · D-VIERSEN · Cat.5e BL 4x2x26 AWG 1747-4421 UL AWM Style 21080 75°C 300V CE

Marking for CATLine CAT 5e BL 15474621: SAB BRÖCKSKES · D-VIERSEN · Cat.5e BL 4x2x26 AWG 1747-4421 UL AWM Style 21080 75°C 300V CE

Application

This CAT 5e halogen-free Ethernet cable with ABS Type Approval and UL recognition is especially for use in shipbuilding industry.

Outstanding features

  • ABS Type Approval
  • TR IEC 60092-370
  • halogen-free
  • asbestos-free
  • flame retardant and self-extinguishing
  • no flame propagation
  • UL recognized
  • EAC approval

Cable construction

Dimension

2 x 2 x 24 AWG

2 x 2 x 22 AWG

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

2 x 2 x 24 AWG and 2 x 2 x 22 AWG:

blue, yellow, white, orange



4 x 2 x 26 AWG:

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

star quad

Wrapping

alu foil

Screen

tinned copper braiding

Sheath material

special SABIX

Sheath colour

black

Technical data

Item number

1547-9001

1547-9002

1547-4621

Peak operating voltage

max. 90 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Temperature range VDE

fixed laying: - 40°C / + 70 °C

flexible application: - 30°C / + 70 °C

UL: up to + 75°C

Min. bending radius

fixed laying: 5 x d

fixed laying: 10 x d

Characteristic impedance

1547-9001 and 1547-9002:

100Ω ± 5Ω, accomplishes the electrical and transmission requirements with high frequency with reference to

EN 50288-2-2 / CAT 5



1547-4621:

100Ω ± 10Ω, accomplishes the electrical and transmission requirements with high frequency with reference to

EN 50288-2-2 / CAT 5

Halogen-free

acc. to IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2, no flame propagation acc. to IEC 60332-3-22 cat. A, UL Horizontal Flame Test FT2, UL AWM Style 21080

Corrosiveness of conflagration gases

IEC 60754-2 - no development of corrosive conflagration gases

Smoke density

acc. to DIN EN 61034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.no. of corescross sectionouter-ø ± 5%copper figurecable weight ca.
15479001424/7 AWG5,7 mm22,7 kg/km48 kg/km
15479002422/7 AWG6,4 mm29,7 kg/km61 kg/km
15474621826/7 AWG7,3 mm31,9 kg/km64 kg/km
