CATLine CAT 6A BL

CAT 6A halogen-free Ethernet cable with ABS Type Approval and UL recognition for maritime use

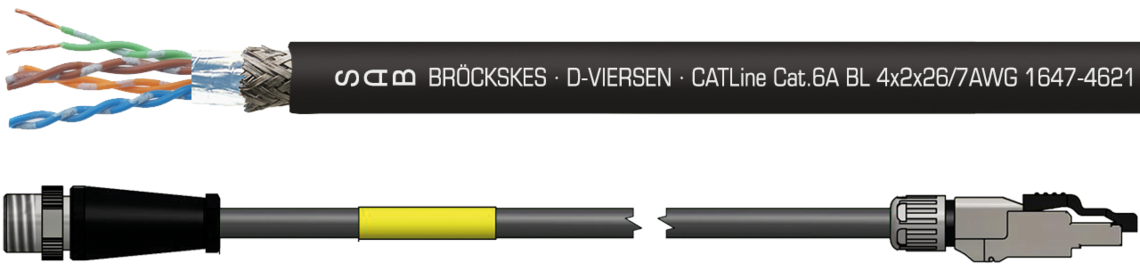

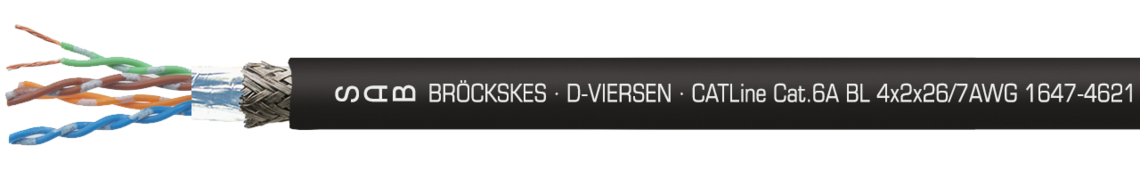

Marking for CATLine CATLine CAT 6A BL 16474621:
SAB BRÖCKSKES · D-VIERSEN · Cat.6A BL 4x2x26AWG 1747-4421 UL AWM Style 21080 75°C 300V CE

Marking for CATLine CATLine CAT 6A BL 16474621: SAB BRÖCKSKES · D-VIERSEN · Cat.6A BL 4x2x26AWG 1747-4421 UL AWM Style 21080 75°C 300V CE

Application

CAT 6A halogen-free Ethernet cable with ABS Type Approval and UL recognition for maritime use.

Outstanding features

  • ABS Type Approval
  • TR IEC 60092-370
  • halogen-free
  • asbestos-free
  • flame retardant and self-extinguishing
  • no flame propagation
  • UL recognized
  • EAC approval

Cable construction

Dimension

4 x 2 x 24 AWG

4 x 2 x 26 AWG

Conductor

bare copper strands, fine wires

Insulation

special polymer

Colour code

white-blue/blue, white-orange/orange, white-green/green, white-brown/brown

Stranding

cores twisted to pairs, pairs together

Wrapping

alu foil

Screen

tinned copper braiding

Sheath material

special SABIX

Sheath colour

black

Technical data

Item number

1647-4621 + 1647-4421

Peak operating voltage

max. 90 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Temperature range VDE

fixes laying : - 40°C / + 70 °C

flexible application: - 30°C / + 70 °C

UL: up to + 75°C

Min. bending radius

fixed laying: 5 x d

flexible application (only 7 wires): 10 x d

Characteristic impedance

100Ω ± 10Ω, accomplishes the electrical and transmission requirements with high frequency with reference to

EN 50288-10-2 / CAT 6A

Halogen-free

acc. to IEC 60754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2, no flame propagation acc. to IEC 60332-3-22 cat. A, UL Horizontal Flame Test FT2, UL AWM Style 21080

Corrosiveness of conflagration gases

IEC 60754-2 - no development of corrosive conflagration gases

Smoke density

acc. to DIN EN 61034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.no. of corescross sectionouter-ø ± 5%copper figurecable weight ca.
16474621826/7 AWG7,3 mm31,9 kg/km64 kg/km
16474421824/7 AWG8,3 mm41,1 kg/km81 kg/km
