PN 654 UL

PVC Profinet cable type A for fixed installation with UL recognition

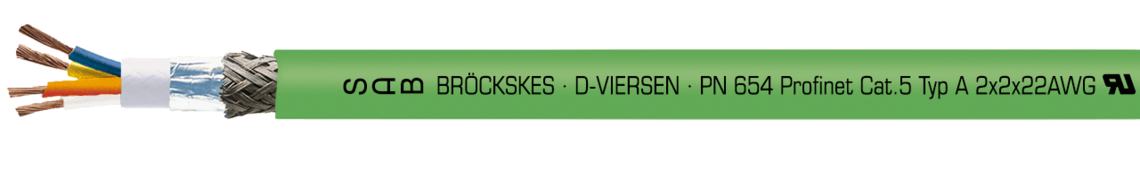

Marking for PN 654 UL Profinet Type A 06549002: SAB BRÖCKSKES · D-VIERSEN · PN 654 UL Profinet CAT 5 Typ A 2x2x22AWG UL AWM Style 2464 80°C 300V CE

Marking for PN 654 UL Profinet Type A 06549002: SAB BRÖCKSKES · D-VIERSEN · PN 654 UL Profinet CAT 5 Typ A 2x2x22AWG UL AWM Style 2464 80°C 300V CE

Application

Profinet CAT 5 cable type A with UL approval for fixed installation with a minimum bending radius of 5 x d. The temperature range is -30°C/+70°C (according to VDE) in the fixed position, -5°C/+70°C (according to VDE) in the moving position and up to +80°C according to UL.

Outstanding features

  • UL recognition
  • short assembling time by „Fast Connect” construction

Additional information

also possible as harnessed cable with M12 or RJ 45 plug

Construction

Dimension

2 x 2 x 22 AWG

Conductor

bare copper wire

Insulation

SABIX

Colour code

blue, yellow, white, orange

Stranding

star quad

Wrapping

PETP-foil

Inner sheath

PVC

Screen

alu foil and tinned copper braiding

Sheath material

PVC

Sheath colour

green (similar RAL 6018)

Dimension

2 x 2 x 22 AWG

Conductor

bare copper wire

Insulation

SABIX

Colour code

blue, yellow, white, orange

Stranding

star quad

Wrapping

PETP-foil

Inner sheath

PVC

Screen

alu foil and tinned copper braiding

Sheath material

PVC

Sheath colour

green (similar RAL 6018)

Technical data

Peak operating voltage

max 350 V

Voltage UL

300 V

Testing voltage

core/core: 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 5 x d

Temperature range

VDE fixed laying: -30/+70 °C

VDE flexible application: -5/+70 °C

UL: up to +80°C

Oil resistance

acc. to internal standard

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

2464

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max 350 V

Voltage UL

300 V

Testing voltage

core/core: 2000 V

core/screen: 2000 V

Min. bending radius

fixed laying: 5 x d

Temperature range

VDE fixed laying: -30/+70 °C

VDE flexible application: -5/+70 °C

UL: up to +80°C

Characteristic impedance

100Ω ± 5Ω, fulfils the electrical and transmission requirements with high frequency

acc. to EN 50288-2-2 + VDE 0819-2-2 (CAT 5 acc. to EN 50173-1)

UL Style

2464

Application

suitable for EtherCAT and EtherNET/IP applications

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension max. core-ø Outer-ø Copper figure Cable weight ≈ Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
L065490022 x 2 x 22 AWG1,55 mm6,5 mm ± 0,2 mm32,2 kg/km66 kg/km54.1 Send inquiry
item no.
Dimension
max. core-ø
Outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C acc. to VDE 0812
max. Ω/km
L06549002
2 x 2 x 22 AWG
1,55 mm
6,5 mm ± 0,2 mm
32,2 kg/km
66 kg/km
54.1

Other dimensions and colours are possible on request.
