SABclean CATLine CAT 6A S
Industrial Ethernet CAT 6A Cable, suitable for cable tracks

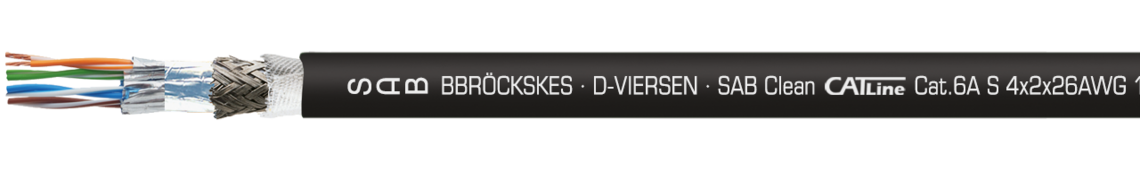

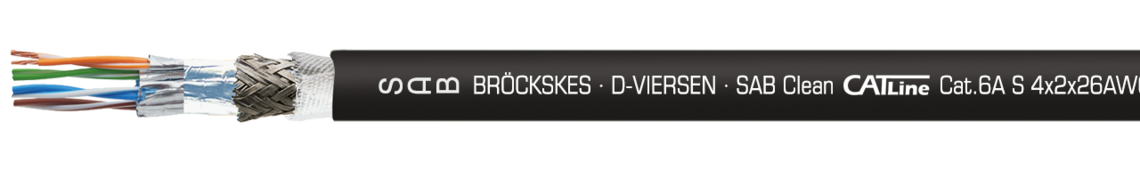

Marking for SABClean CATLine CAT 6A S: SAB BRÖCKSKES · D-VIERSEN · SABClean Cat.6A S 4x2x26AWG 1677-9006 UL AWM Style 20549 80°C 300V CE RoHS and current meter marking
Application
Industrial Ethernet cable CAT 6A suitable for drag chains for use in clean room applications. This highly flexible drag chain cable with UL AWM Style 20549 80°C can be used for temperatures up to +80 °C. In addition to the good flexibility, the CAT 6A cable is oil-resistant (Oil 60 °C according to UL 758).
Additional information
Cleanroom classification
DIN EN ISO 14644-1 air cleanliness class 1
Also possible as harnessed cable with M12 or RJ 45 plug!
Construction
| Dimension | 4 x 2 x 26 AWG |
|---|---|
| Conductor | bare copper strands, fine wire |
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs together |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | TPE |
| Sheath colour | black (RAL 9005) |
4 x 2 x 26 AWG
bare copper strands, fine wire
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted to pairs, pairs together
alu foil and tinned copper braiding
non-woven tape
TPE
black (RAL 9005)
Technical data
| Item number | 1677-9006 |
|---|---|
| Peak operating voltage | max. 90 V |
| Voltage UL | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | UL: up to +80 °C fixed laying: -40/+70 °C flexible application: -30/+70 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 UL Horizontal Flame Test FT2 |
| Characteristic impedance | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 / CAT 6A |
| Oil resistance | very good - Oil 60 °C acc. to UL 758 |
| Flexibility | very good |
| Air cleanliness class 1 | acc. to DIN EN ISO 14644-1 |
| UL Style | 20549 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
1677-9006
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
UL: up to +80 °C
fixed laying: -40/+70 °C
flexible application: -30/+70 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
UL Horizontal Flame Test FT2
100Ω ± 10Ω,
fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-10-2 / CAT 6A
very good - Oil 60 °C acc. to UL 758
very good
acc. to DIN EN ISO 14644-1
20549
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L16779006 | 4 x 2 x 26 AWG | 6,9 mm | 31,8 kg/km | 56 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
