A 9 - L

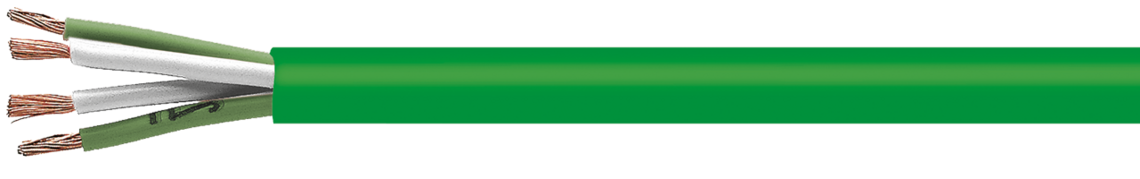

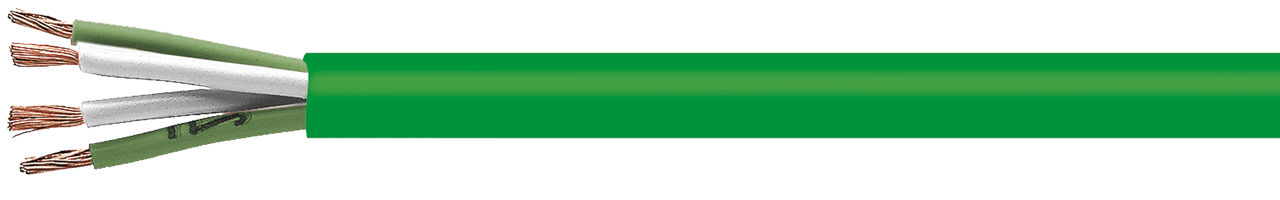

Multi-pair PVC insulated cable
Application
Multi-core PVC-insulated compensating cable or thermocouple cable with PVC sheath. The flame-retardant and self-extinguishing cable can be assembled with the required thermocouple according to customer specifications.
Please specify the required thermcouple! Example: Type A 9 - 16 L for thermocouple type R/S to DIN 43713 = order no. 04421696
The types of multi-paired compensating cables can also be delivered pair-wise twisted and pairs totally twisted for additional charge.
Additional information
Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!
The type A 9-L can also be manufactured with solid conductors 1,38 mm ø.
The type identification for solid types is: type A 9 - D (item group 0463…).
Construction
| Insulation | PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
|---|---|
| Core marking | from 4 cores pair-wise numbered |
| Stranding | cores together in layers |
| Sheath material | PVC, YM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1 |
| Shape | round |
| Conductor construction | strand |
| Conductor cross section | 1,5 mm² |
PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
from 4 cores pair-wise numbered
cores together in layers
PVC, YM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
round
strand
1,5 mm²
Technical data
| Min. bending radius | 7,5 x d |
|---|---|
| Radiation resistance | 8 x 10^7 cJ/kg |
| Temperature range of insulation | fixed laying: -40/+70°C flexible application: +5/+70°C |
| Insulation resistance | > 1 M Ω x km |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
7,5 x d
8 x 10^7 cJ/kg
fixed laying: -40/+70°C
flexible application: +5/+70°C
> 1 M Ω x km
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. | Cable type | no. of cores | For thermocouple | Approx. outer-ø | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| 044289… | A 9 - L | 2 | 1 | 6,1 mm | 6,4 kg/100m | Send inquiry |
| 044204… | A9-4 L | 4 | 2 | 7,1 mm | 9,8 kg/100m | Send inquiry |
| 044206… | A9-6 L | 6 | 3 | 8,7 mm | 14,1 kg/100m | Send inquiry |
| 044212… | A9-12L | 12 | 6 | 11,9 mm | 25,5 kg/100m | Send inquiry |
| 044216… | A9-16L | 16 | 8 | 13,2 mm | 33,2 kg/100m | Send inquiry |
| 044220… | A9-20L | 20 | 10 | 15,0 mm | 42,2 kg/100m | Send inquiry |
| 044224… | A9-24L | 24 | 12 | 16,7 mm | 49,2 kg/100m | Send inquiry |
| 044232… | A9-32L | 32 | 16 | 18,8 mm | 65,4 kg/100m | Send inquiry |
| 044236… | A9-36L | 36 | 18 | 19,5 mm | 72,6 kg/100m | Send inquiry |
| 044240… | A9-40L | 40 | 20 | 20,9 mm | 80,6 kg/100m | Send inquiry |
Other dimensions and colours are possible on request.
