A 1 L single

PVC-insulated cores, single

Application

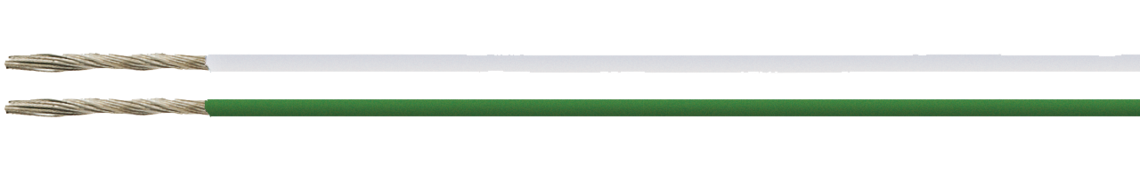

A 1 L single consists of two separate cores with a round shape. It is suitable for temperature ranges up to +70 °C. Moreover, it has a small minimum bending radius of 7.5 x d. This cable type is available as compensating and extension cable.

Additional information

Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!



DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

2 cores seperately

Shape

round

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 2,4 mm

Weight/100m

approx. 3,2 kg

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

2 cores seperately

Shape

round

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 2,4 mm

Weight/100m

approx. 3,2 kg

Technical data

Min. bending radius

7,5 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+70 °C

flexible application: +5/+70°C

Insulation resistance

> 1 M Ω x km

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

7,5 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+70 °C

flexible application: +5/+70°C

Insulation resistance

> 1 M Ω x km

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04028958IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04028952IEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04028995IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04028999IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04028954IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04028953IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04028997IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04028991IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04028992DIN 43710 / 43719Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04028994DIN 43710 / 43720Type KKCA4,10 mV Send inquiry
04028996DIN 43710 / 43721Type R/SR/SCB0,65 mV Send inquiry
04028998DIN 43710 / 43722Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04028901DIN 43710 / 43723Type B*BC-1000,00 mV Send inquiry
04028902DIN 43710 / 43724Type B*BC-2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04028958
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04028952
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04028995
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04028999
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04028954
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04028953
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04028997
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04028991
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04028992
DIN 43710 / 43719
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04028994
DIN 43710 / 43720
Type K
KCA
4,10 mV
04028996
DIN 43710 / 43721
Type R/S
R/SCB
0,65 mV
04028998
DIN 43710 / 43722
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04028901
DIN 43710 / 43723
Type B*
BC-100
0,00 mV
04028902
DIN 43710 / 43724
Type B*
BC-200
0,033 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
