A 12 L

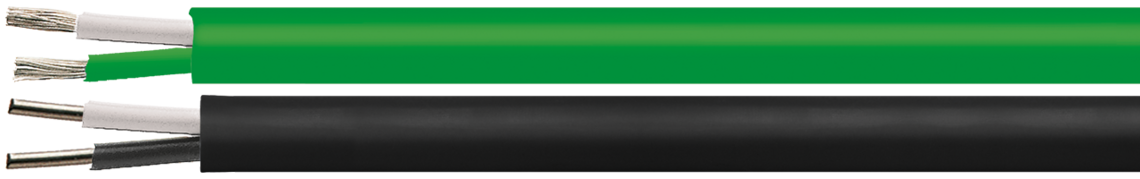

PVC insulated cables A 12 L · A 12 D

Application

This PVC insulated cable is vailable with strand or wire as compensating cable or thermocable for all thermocouples such as type K or type J.

A 12 L: Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!

Outstanding features

  • flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Additional information

Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!

Construction

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

2 cores parallel

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Shape

round

Conductor construction

strand resp. wire

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

2 cores parallel

Sheath material

PVC, TM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Shape

round

Conductor construction

strand resp. wire

Technical data

Min. bending radius

A 12 L: 7,5 x d

A 12 D: 12 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+70°C

flexible application: +5/+70°C

Insulation resistance

> 1 M Ω x km

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

A 12 L: 7,5 x d

A 12 D: 12 x d

Radiation resistance

8 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+70°C

flexible application: +5/+70°C

Insulation resistance

> 1 M Ω x km

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Dimensions

item no. type colour code for thermocouple cable type EMF at 100 °C
04448958A 12 LDIN IEC 584Typ TCu - CuNiTXbraun/weiß (braun)4,28 mV Send inquiry
04448952A 12 LDIN IEC 584Typ JFe - CuNiJXschwarz/weiß (schwarz)5,27 mV Send inquiry
04448995A 12 LDIN IEC 584Typ KNiCr - NiKCAgrün/weiß (grün4,10 mV Send inquiry
04448999A 12 LDIN IEC 584Typ KNiCr - NiKCBgrün/weiß (grün4,10 mV Send inquiry
04448954A 12 LDIN IEC 584Typ KNiCr - NiKXgrün/weiß (grün4,10 mV Send inquiry
04448953A 12 LDIN IEC 584Typ ENiCr - CuNiEXviolett/weiß (violett)6,32 mV Send inquiry
04448997A 12 LDIN IEC 584Typ R/SPtRh13 - PT PtRh10 - PTR/SCBorange/weiß (orange)0,65 mV Send inquiry
04448991A 12 LDIN IEC 584Typ NNiCrSi - NiSiNCrosa/weiß (rosa)2,77 mV Send inquiry
04448992A 12 LDIN 43710 / 43714 (nicht gültig für *Typ B)Typ LFe CuNiLXrot - blau (blau)5,37 mV Send inquiry
04448998A 12 LDIN 43710 / 43714 (nicht gültig für *Typ B)Typ UCu - CuNiUXrot - braun (braun)4,25 mV Send inquiry
04458988A 12 DDIN IEC 584Typ TCu - CuNiTXbraun/weiß (braun)4,28 mV Send inquiry
04458982A 12 DDIN IEC 584Typ JFe - CuNiJXschwarz/weiß (schwarz)5,27 mV Send inquiry
04458915A 12 DDIN IEC 584Typ KNiCr - NiKCAgrün/weiß (grün4,10 mV Send inquiry
04458919A 12 DDIN IEC 584Typ KNiCr - NiKCBgrün/weiß (grün4,10 mV Send inquiry
04458984A 12 DDIN IEC 584Typ KNiCr - NiKXgrün/weiß (grün4,10 mV Send inquiry
04458983A 12 DDIN IEC 584Typ ENiCr - CuNiEXviolett/weiß (violett)6,32 mV Send inquiry
04458917A 12 DDIN IEC 584Typ R/SPtRh13 - PT PtRh10 - PTR/SCBorange/weiß (orange)0,65 mV Send inquiry
04458911A 12 DDIN IEC 584Typ NNiCrSi - NiSiNCrosa/weiß (rosa)2,77 mV Send inquiry
04458912A 12 DDIN 43710 / 43714 (nicht gültig für *Typ B)Typ LFe CuNiLXrot - blau (blau)5,37 mV Send inquiry
04458918A 12 DDIN 43710 / 43714 (nicht gültig für *Typ B)Typ UCu - CuNiUXrot - braun (braun)4,25 mV Send inquiry
item no.
type
colour code
for thermocouple
cable type
EMF at 100 °C
04448958
A 12 L
DIN IEC 584
Typ T
Cu - CuNi
TX
braun/weiß (braun)
4,28 mV
04448952
A 12 L
DIN IEC 584
Typ J
Fe - CuNi
JX
schwarz/weiß (schwarz)
5,27 mV
04448995
A 12 L
DIN IEC 584
Typ K
NiCr - Ni
KCA
grün/weiß (grün
4,10 mV
04448999
A 12 L
DIN IEC 584
Typ K
NiCr - Ni
KCB
grün/weiß (grün
4,10 mV
04448954
A 12 L
DIN IEC 584
Typ K
NiCr - Ni
KX
grün/weiß (grün
4,10 mV
04448953
A 12 L
DIN IEC 584
Typ E
NiCr - CuNi
EX
violett/weiß (violett)
6,32 mV
04448997
A 12 L
DIN IEC 584
Typ R/S
PtRh13 - PT PtRh10 - PT
R/SCB
orange/weiß (orange)
0,65 mV
04448991
A 12 L
DIN IEC 584
Typ N
NiCrSi - NiSi
NC
rosa/weiß (rosa)
2,77 mV
04448992
A 12 L
DIN 43710 / 43714 (nicht gültig für *Typ B)
Typ L
Fe CuNi
LX
rot - blau (blau)
5,37 mV
04448998
A 12 L
DIN 43710 / 43714 (nicht gültig für *Typ B)
Typ U
Cu - CuNi
UX
rot - braun (braun)
4,25 mV
04458988
A 12 D
DIN IEC 584
Typ T
Cu - CuNi
TX
braun/weiß (braun)
4,28 mV
04458982
A 12 D
DIN IEC 584
Typ J
Fe - CuNi
JX
schwarz/weiß (schwarz)
5,27 mV
04458915
A 12 D
DIN IEC 584
Typ K
NiCr - Ni
KCA
grün/weiß (grün
4,10 mV
04458919
A 12 D
DIN IEC 584
Typ K
NiCr - Ni
KCB
grün/weiß (grün
4,10 mV
04458984
A 12 D
DIN IEC 584
Typ K
NiCr - Ni
KX
grün/weiß (grün
4,10 mV
04458983
A 12 D
DIN IEC 584
Typ E
NiCr - CuNi
EX
violett/weiß (violett)
6,32 mV
04458917
A 12 D
DIN IEC 584
Typ R/S
PtRh13 - PT PtRh10 - PT
R/SCB
orange/weiß (orange)
0,65 mV
04458911
A 12 D
DIN IEC 584
Typ N
NiCrSi - NiSi
NC
rosa/weiß (rosa)
2,77 mV
04458912
A 12 D
DIN 43710 / 43714 (nicht gültig für *Typ B)
Typ L
Fe CuNi
LX
rot - blau (blau)
5,37 mV
04458918
A 12 D
DIN 43710 / 43714 (nicht gültig für *Typ B)
Typ U
Cu - CuNi
UX
rot - braun (braun)
4,25 mV

Other dimensions and colours are possible on request.
