A 15-022

Fibre-glass insulated cores with silicone (Besilen®) outer sheath

Application

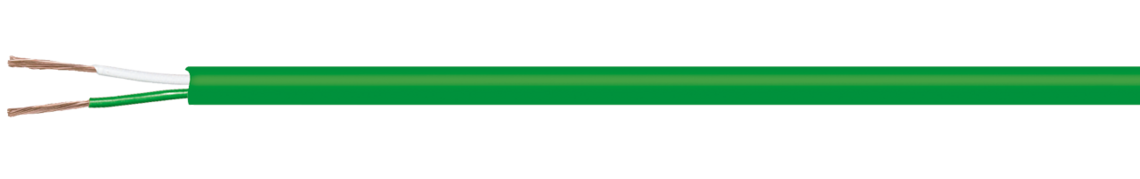

Type K Thermocouple Extenstion Wire - Colour green/white - The fibre-glass insulated cable withstands a temperature range in flexible applications of - 25 °C up to + 180 °C. Thus, this cable is flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2.

Additional information

DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

fibre-glass

Stranding

2 cores together

Sheath material

Besilen ® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Shape

round

Conductor construction

strand

Conductor cross section

0,22 mm²

Outer diameter

approx. 2,9 mm

Weight/100m

approx. 1,1 kg

Insulation

fibre-glass

Stranding

2 cores together

Sheath material

Besilen ® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Shape

round

Conductor construction

strand

Conductor cross section

0,22 mm²

Outer diameter

approx. 2,9 mm

Weight/100m

approx. 1,1 kg

Technical data

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

7,5 x d

Temperature range

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04511958IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04511952IEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04511995IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04511999IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04511954IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04511953IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04511997IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04511991IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04511992DIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04511994DIN 43710 / 43715Type KKCA4,10 mV Send inquiry
04511996DIN 43710 / 43716Type R/SR/SCB0,65 mV Send inquiry
04511998DIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04511901DIN 43710 / 43718Type B*BC-1000,00 mV Send inquiry
04511902DIN 43710 / 43719Type B*BC-2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04511958
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04511952
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04511995
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04511999
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04511954
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04511953
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04511997
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04511991
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04511992
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04511994
DIN 43710 / 43715
Type K
KCA
4,10 mV
04511996
DIN 43710 / 43716
Type R/S
R/SCB
0,65 mV
04511998
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04511901
DIN 43710 / 43718
Type B*
BC-100
0,00 mV
04511902
DIN 43710 / 43719
Type B*
BC-200
0,033 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
