SAB Kabel

A 15 LC

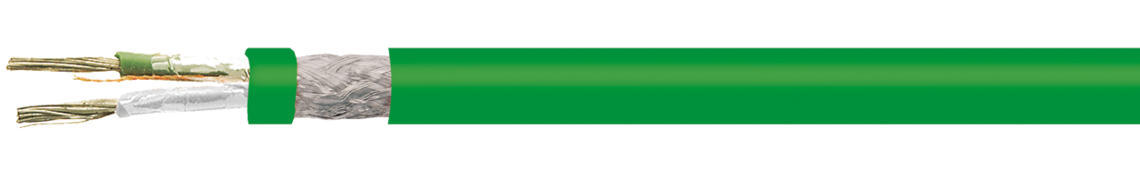

Silicone (Besilen®) insulated cable with overall copper screen, A 15 LC · A 15-075 LC · A 15-050 LC · A 15-022 LC

Application

This cable is suitable for various thermocouples like, for instance, type T, type K, type U, and type B. Moreover, it has an overall tinned copper braiding as screen. It is available as compensating and extension cable.

Additional information

Type:A 15 LCA 15-075 LCA 15-050 LCA 15-022 LC
Conductor cross section:1,5 mm²  0,75 mm²0,50 mm²0,22 mm²
Outer diameter:approx. 6,8 mmapprox. 5,7 mmapprox. 5,2 mmapprox. 4,3 mm
Weight/100mapprox. 7,0 kgapprox. 4,6 kgapprox. 3,9 kgapprox. 2,5 kg

DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables



Construction

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 cores together

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Shape

round

Conductor construction

strand

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Stranding

2 cores together

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

Besilen® EM9 acc. to EN 50363-2-1 + VDE 0207-363-2-1

Shape

round

Conductor construction

strand

Technical data

Min. bending radius

12 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Radiation resistance

2 x 10^7 cJ/kg

Temperature range of insulation

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Insulation resistance

> 1 M Ω x km

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Dimensions

item no.

type

colour code

for thermocouple

cable type

EMF at 100 °C

04308958A 15 LCDIN IEC 584Typ TCu - CuNiTXbraun/weiß (braun)4,28 mV Send inquiry
04308952A 15 LCDIN IEC 584Typ JFe - CuNiJXschwarz/weiß (schwarz)5,27 mV Send inquiry
04308995A 15 LCDIN IEC 584Typ KNiCr - NiKCAgrün/weiß (grün)4,10 mV Send inquiry
04308999A 15 LCDIN IEC 584Typ KNiCr - NiKCBgrün/weiß (grün)4,10 mV Send inquiry
04308954A 15 LCDIN IEC 584Typ KNiCr - NiKXgrün/weiß (grün)4,10 mV Send inquiry
04308953A 15 LCDIN IEC 584Typ ENiCr - CuNiEXviolett/weiß (violett)6,32 mV Send inquiry
04308997A 15 LCDIN IEC 584Typ R/SPtRh13 - PT
PtRh10 - PT
R/SCBorange/weiß (orange)0,65 mV Send inquiry
04308991A 15 LCDIN IEC 584Typ NNiCrSi - NiSiNCrosa/weiß (rosa)2,77 mV Send inquiry
04308992A 15 LCDIN 43710 / 43714Typ LFe CuNiLXrot - blau (blau)5,37 mV Send inquiry
04308998A 15 LCDIN 43710 / 43714Typ UCu - CuNiUXrot - braun (braun)4,25 mV Send inquiry
04305958A 15-075 LCDIN IEC 584Typ TCu - CuNiTXbraun/weiß (braun)4,28 mV Send inquiry
04305952A 15-075 LCDIN IEC 584Typ JFe - CuNiJXschwarz/weiß (schwarz)5,27 mV Send inquiry
04305995A 15-075 LCDIN IEC 584Typ KNiCr - NiKCAgrün/weiß (grün)4,10 mV Send inquiry
04305999A 15-075 LCDIN IEC 584Typ KNiCr - NiKCBgrün/weiß (grün)4,10 mV Send inquiry
04305954A 15-075 LCDIN IEC 584Typ KNiCr - NiKXgrün/weiß (grün)4,10 mV Send inquiry
04305953A 15-075 LCDIN IEC 584Typ ENiCr - CuNiEXviolett/weiß (violett)6,32 mV Send inquiry
04305997A 15-075 LCDIN IEC 584Typ R/SPtRh13 - PT
PtRh10 - PT
R/SCBorange/weiß (orange)0,65 mV Send inquiry
04305991A 15-075 LCDIN IEC 584Typ NNiCrSi - NiSiNCrosa/weiß (rosa)2,77 mV Send inquiry
04305992A 15-075 LCDIN 43710 / 43714Typ LFe CuNiLXrot - blau (blau)5,37 mV Send inquiry
04305998A 15-075 LCDIN 43710 / 43714Typ UCu - CuNiUXrot - braun (braun)4,25 mV Send inquiry
04303958A 15-050 LCDIN IEC 584Typ TCu - CuNiTXbraun/weiß (braun)4,28 mV Send inquiry
04303952A 15-050 LCDIN IEC 584Typ JFe - CuNiJXschwarz/weiß (schwarz)5,27 mV Send inquiry
04303995A 15-050 LCDIN IEC 584Typ KNiCr - NiKCAgrün/weiß (grün)4,10 mV Send inquiry
04303999A 15-050 LCDIN IEC 584Typ KNiCr - NiKCBgrün/weiß (grün)4,10 mV Send inquiry
04303954A 15-050 LCDIN IEC 584Typ KNiCr - NiKXgrün/weiß (grün)4,10 mV Send inquiry
04303953A 15-050 LCDIN IEC 584Typ ENiCr - CuNiEXviolett/weiß (violett)6,32 mV Send inquiry
04303997A 15-050 LCDIN IEC 584Typ R/SPtRh13 - PT
PtRh10 - PT
R/SCBorange/weiß (orange)0,65 mV Send inquiry
04303991A 15-050 LCDIN IEC 584Typ NNiCrSi - NiSiNCrosa/weiß (rosa)2,77 mV Send inquiry
04303992A 15-050 LCDIN 43710 / 43714Typ LFe CuNiLXrot - blau (blau)5,37 mV Send inquiry
04303998A 15-050 LCDIN 43710 / 43714Typ UCu - CuNiUXrot - braun (braun)4,25 mV Send inquiry
04301958A 15-022 LCDIN IEC 584Typ TCu - CuNiTXbraun/weiß (braun)4,28 mV Send inquiry
04301952A 15-022 LCDIN IEC 584Typ JFe - CuNiJXschwarz/weiß (schwarz)5,27 mV Send inquiry
04301995A 15-022 LCDIN IEC 584Typ KNiCr - NiKCAgrün/weiß (grün)4,10 mV Send inquiry
04301999A 15-022 LCDIN IEC 584Typ KNiCr - NiKCBgrün/weiß (grün)4,10 mV Send inquiry
04301954A 15-022 LCDIN IEC 584Typ KNiCr - NiKXgrün/weiß (grün)4,10 mV Send inquiry
04301953A 15-022 LCDIN IEC 584Typ ENiCr - CuNiEXviolett/weiß (violett)6,32 mV Send inquiry
04301997A 15-022 LCDIN IEC 584Typ R/SPtRh13 - PT
PtRh10 - PT
R/SCBorange/weiß (orange)0,65 mV Send inquiry
04301991A 15-022 LCDIN IEC 584Typ NNiCrSi - NiSiNCrosa/weiß (rosa)2,77 mV Send inquiry
04301992A 15-022 LCDIN 43710 / 43714Typ LFe CuNiLXrot - blau (blau)5,37 mV Send inquiry
04301998A 15-022 LCDIN 43710 / 43714Typ UCu - CuNiUXrot - braun (braun)4,25 mV Send inquiry
item no.
type
colour code
for thermocouple
cable type
EMF at 100 °C
04308958
A 15 LC
DIN IEC 584
Typ T
Cu - CuNi
TX
braun/weiß (braun)
4,28 mV
04308952
A 15 LC
DIN IEC 584
Typ J
Fe - CuNi
JX
schwarz/weiß (schwarz)
5,27 mV
04308995
A 15 LC
DIN IEC 584
Typ K
NiCr - Ni
KCA
grün/weiß (grün)
4,10 mV
04308999
A 15 LC
DIN IEC 584
Typ K
NiCr - Ni
KCB
grün/weiß (grün)
4,10 mV
04308954
A 15 LC
DIN IEC 584
Typ K
NiCr - Ni
KX
grün/weiß (grün)
4,10 mV
04308953
A 15 LC
DIN IEC 584
Typ E
NiCr - CuNi
EX
violett/weiß (violett)
6,32 mV
04308997
A 15 LC
DIN IEC 584
Typ R/S
PtRh13 - PT
PtRh10 - PT
R/SCB
orange/weiß (orange)
0,65 mV
04308991
A 15 LC
DIN IEC 584
Typ N
NiCrSi - NiSi
NC
rosa/weiß (rosa)
2,77 mV
04308992
A 15 LC
DIN 43710 / 43714
Typ L
Fe CuNi
LX
rot - blau (blau)
5,37 mV
04308998
A 15 LC
DIN 43710 / 43714
Typ U
Cu - CuNi
UX
rot - braun (braun)
4,25 mV
04305958
A 15-075 LC
DIN IEC 584
Typ T
Cu - CuNi
TX
braun/weiß (braun)
4,28 mV
04305952
A 15-075 LC
DIN IEC 584
Typ J
Fe - CuNi
JX
schwarz/weiß (schwarz)
5,27 mV
04305995
A 15-075 LC
DIN IEC 584
Typ K
NiCr - Ni
KCA
grün/weiß (grün)
4,10 mV
04305999
A 15-075 LC
DIN IEC 584
Typ K
NiCr - Ni
KCB
grün/weiß (grün)
4,10 mV
04305954
A 15-075 LC
DIN IEC 584
Typ K
NiCr - Ni
KX
grün/weiß (grün)
4,10 mV
04305953
A 15-075 LC
DIN IEC 584
Typ E
NiCr - CuNi
EX
violett/weiß (violett)
6,32 mV
04305997
A 15-075 LC
DIN IEC 584
Typ R/S
PtRh13 - PT
PtRh10 - PT
R/SCB
orange/weiß (orange)
0,65 mV
04305991
A 15-075 LC
DIN IEC 584
Typ N
NiCrSi - NiSi
NC
rosa/weiß (rosa)
2,77 mV
04305992
A 15-075 LC
DIN 43710 / 43714
Typ L
Fe CuNi
LX
rot - blau (blau)
5,37 mV
04305998
A 15-075 LC
DIN 43710 / 43714
Typ U
Cu - CuNi
UX
rot - braun (braun)
4,25 mV
04303958
A 15-050 LC
DIN IEC 584
Typ T
Cu - CuNi
TX
braun/weiß (braun)
4,28 mV
04303952
A 15-050 LC
DIN IEC 584
Typ J
Fe - CuNi
JX
schwarz/weiß (schwarz)
5,27 mV
04303995
A 15-050 LC
DIN IEC 584
Typ K
NiCr - Ni
KCA
grün/weiß (grün)
4,10 mV
04303999
A 15-050 LC
DIN IEC 584
Typ K
NiCr - Ni
KCB
grün/weiß (grün)
4,10 mV
04303954
A 15-050 LC
DIN IEC 584
Typ K
NiCr - Ni
KX
grün/weiß (grün)
4,10 mV
04303953
A 15-050 LC
DIN IEC 584
Typ E
NiCr - CuNi
EX
violett/weiß (violett)
6,32 mV
04303997
A 15-050 LC
DIN IEC 584
Typ R/S
PtRh13 - PT
PtRh10 - PT
R/SCB
orange/weiß (orange)
0,65 mV
04303991
A 15-050 LC
DIN IEC 584
Typ N
NiCrSi - NiSi
NC
rosa/weiß (rosa)
2,77 mV
04303992
A 15-050 LC
DIN 43710 / 43714
Typ L
Fe CuNi
LX
rot - blau (blau)
5,37 mV
04303998
A 15-050 LC
DIN 43710 / 43714
Typ U
Cu - CuNi
UX
rot - braun (braun)
4,25 mV
04301958
A 15-022 LC
DIN IEC 584
Typ T
Cu - CuNi
TX
braun/weiß (braun)
4,28 mV
04301952
A 15-022 LC
DIN IEC 584
Typ J
Fe - CuNi
JX
schwarz/weiß (schwarz)
5,27 mV
04301995
A 15-022 LC
DIN IEC 584
Typ K
NiCr - Ni
KCA
grün/weiß (grün)
4,10 mV
04301999
A 15-022 LC
DIN IEC 584
Typ K
NiCr - Ni
KCB
grün/weiß (grün)
4,10 mV
04301954
A 15-022 LC
DIN IEC 584
Typ K
NiCr - Ni
KX
grün/weiß (grün)
4,10 mV
04301953
A 15-022 LC
DIN IEC 584
Typ E
NiCr - CuNi
EX
violett/weiß (violett)
6,32 mV
04301997
A 15-022 LC
DIN IEC 584
Typ R/S
PtRh13 - PT
PtRh10 - PT
R/SCB
orange/weiß (orange)
0,65 mV
04301991
A 15-022 LC
DIN IEC 584
Typ N
NiCrSi - NiSi
NC
rosa/weiß (rosa)
2,77 mV
04301992
A 15-022 LC
DIN 43710 / 43714
Typ L
Fe CuNi
LX
rot - blau (blau)
5,37 mV
04301998
A 15-022 LC
DIN 43710 / 43714
Typ U
Cu - CuNi
UX
rot - braun (braun)
4,25 mV

Other dimensions and colours are possible on request.
