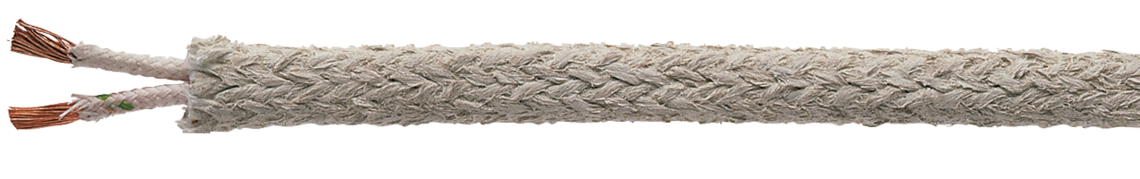

A 3 L

Fibre-glass insulated cores with SABtex braiding

Application

High Temperature Resistant Compensating Cable & Thermocouple Extenstion Wire. In flexible application, the cable withstands a temperature range of: fixed laying: -40/+180°C, flexible application: -25/+180°C, short-time use: +250°C.

Additional information

With SABtex braiding!



DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

fibre-glass

Stranding

2 cores parallel

Braiding

SABtex with tracer

Shape

oval

Conductor construction

strand

For thermocouples

■ 1 x type T     ■ 1 x type J      ■ 1 x type K

■ 1 x type E     ■ 1 x type R/S     ■ 1 x type N

■ 1 x type L     ■ 1 x type U      ■ 1 x type B

Conductor cross section

1,5 mm²

Outer diameter

approx. 4,6 x 6,8 mm

Weight/100m

approx. 5,4 kg

Insulation

fibre-glass

Stranding

2 cores parallel

Braiding

SABtex with tracer

Shape

oval

Conductor construction

strand

For thermocouples

■ 1 x type T     ■ 1 x type J      ■ 1 x type K

■ 1 x type E     ■ 1 x type R/S     ■ 1 x type N

■ 1 x type L     ■ 1 x type U      ■ 1 x type B

Conductor cross section

1,5 mm²

Outer diameter

approx. 4,6 x 6,8 mm

Weight/100m

approx. 5,4 kg

Technical data

Min. bending radius

10 x d

Temperature range of insulation

fixed laying: -50/+200°C

flexible application: -50/+200°C

short-time use: +300°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

low (low smoke emission)

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

10 x d

Temperature range of insulation

fixed laying: -50/+200°C

flexible application: -50/+200°C

short-time use: +300°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

low (low smoke emission)

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04128958IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04128952IEC 60584Type JFe - CuNiJXblack/white (schwarz)5,27 mV Send inquiry
04128995IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04128999IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04128954IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04128953IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04128997IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04128991IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04128992DIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04128994DIN 43710 / 43715Type KKCA4,10 mV Send inquiry
04128996DIN 43710 / 43716Type R/SR/SCB0,65 mV Send inquiry
04128998DIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04128901DIN 43710 / 43718Type B*BC-1000,00 mV Send inquiry
04128902DIN 43710 / 43719Type B*BC-2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04128958
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04128952
IEC 60584
Type J
Fe - CuNi
JX
black/white (schwarz)
5,27 mV
04128995
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04128999
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04128954
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04128953
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04128997
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04128991
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04128992
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04128994
DIN 43710 / 43715
Type K
KCA
4,10 mV
04128996
DIN 43710 / 43716
Type R/S
R/SCB
0,65 mV
04128998
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04128901
DIN 43710 / 43718
Type B*
BC-100
0,00 mV
04128902
DIN 43710 / 43719
Type B*
BC-200
0,033 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
