A 4 L

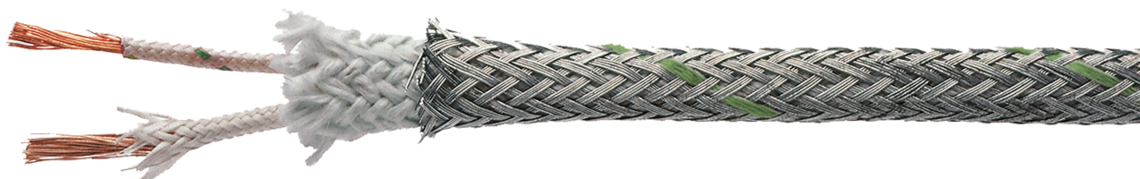

Fibre-glass insulated cores with SABtex braiding and steel wire armouring

Application

Fibre-glass insulated cores with SABtex braiding and steel wire armouring has a minimum bending radius of 12 x d. Moreover, it has a low smoke emission and an outer dimension of approx. 5,4 x 7,6 mm. This cable is obtainable as compensating and extension cable. Temperature resistant up to:

fixed laying: -40/+180°C

flexible application: -25/+180°C

short-time use: +250°C

Additional information

With SABtex braiding!



DIN 43710 / 43714 (not valid for type B*)
* Not standardized compensating cable for thermocouples type B with application temperatures up to 100 °C resp. 200 °C.
C = compensating cables · X = extension cables

Construction

Insulation

fibre-glass

Stranding

2 cores parallel

Braiding

SABtex with tracer

Armouring

galvanized steel wire armouring with tracer

Shape

oval

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 4,8 x 7,0 mm

Weight/100m

approx. 7,4 kg

Insulation

fibre-glass

Stranding

2 cores parallel

Braiding

SABtex with tracer

Armouring

galvanized steel wire armouring with tracer

Shape

oval

Conductor construction

strand

Conductor cross section

1,5 mm²

Outer diameter

approx. 4,8 x 7,0 mm

Weight/100m

approx. 7,4 kg

Technical data

Min. bending radius

12 x d

Temperature range of insulation

fixed laying: -50/+200°C

flexible application: -50/+200°C

short-time use: +300°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

low (low smoke emission)

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Temperature range of insulation

fixed laying: -50/+200°C

flexible application: -50/+200°C

short-time use: +300°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

low (low smoke emission)

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Colour code For thermocouple Thermocouple
material +Pol/-Pol
Cable type Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04158958IEC 60584Type TCu - CuNiTXbrown/white (brown)4,28 mV Send inquiry
04158952IEC 60584Type JFe - CuNiJXblack/white (black)5,27 mV Send inquiry
04158995IEC 60584Type KNiCr - NiKCAgreen/white (green)4,10 mV Send inquiry
04158999IEC 60584Type KNiCr - NiKCBgreen/white (green)4,10 mV Send inquiry
04158954IEC 60584Type KNiCr - NiKXgreen/white (green)4,10 mV Send inquiry
04158953IEC 60584Type ENiCr - CuNiEXpurple/white (purple)6,32 mV Send inquiry
04158997IEC 60584Type R/SPtRh13 - PTPtRh10 - PTR/SCBorange/white (orange)0,65 mV Send inquiry
04158991IEC 60584Type NNiCrSi - NiSiNCpink/white (pink)2,77 mV Send inquiry
04158992DIN 43710 / 43714Type LFe CuNiLXred/blue (blue)5,37 mV Send inquiry
04138994DIN 43710 / 43715Type KKCA4,10 mV Send inquiry
04138996DIN 43710 / 43716Type R/SR/SCB0,65 mV Send inquiry
04158998DIN 43710 / 43717Type UCu - CuNiUXred/brown (brown)4,25 mV Send inquiry
04138901DIN 43710 / 43718Type B*BC-1000,00 mV Send inquiry
04138902DIN 43710 / 43719Type B*BC-2000,033 mV Send inquiry
item no.
Colour code
For thermocouple
Thermocouple
material +Pol/-Pol
Cable type
Colour code
core insulation
+Pol/-Pol (Sheath)
EMF at 100 °C
04158958
IEC 60584
Type T
Cu - CuNi
TX
brown/white (brown)
4,28 mV
04158952
IEC 60584
Type J
Fe - CuNi
JX
black/white (black)
5,27 mV
04158995
IEC 60584
Type K
NiCr - Ni
KCA
green/white (green)
4,10 mV
04158999
IEC 60584
Type K
NiCr - Ni
KCB
green/white (green)
4,10 mV
04158954
IEC 60584
Type K
NiCr - Ni
KX
green/white (green)
4,10 mV
04158953
IEC 60584
Type E
NiCr - CuNi
EX
purple/white (purple)
6,32 mV
04158997
IEC 60584
Type R/S
PtRh13 - PTPtRh10 - PT
R/SCB
orange/white (orange)
0,65 mV
04158991
IEC 60584
Type N
NiCrSi - NiSi
NC
pink/white (pink)
2,77 mV
04158992
DIN 43710 / 43714
Type L
Fe CuNi
LX
red/blue (blue)
5,37 mV
04138994
DIN 43710 / 43715
Type K
KCA
4,10 mV
04138996
DIN 43710 / 43716
Type R/S
R/SCB
0,65 mV
04158998
DIN 43710 / 43717
Type U
Cu - CuNi
UX
red/brown (brown)
4,25 mV
04138901
DIN 43710 / 43718
Type B*
BC-100
0,00 mV
04138902
DIN 43710 / 43719
Type B*
BC-200
0,033 mV

We continue to manufacture compensating and extension cables with colour code acc. to DIN 43714 and the basic values of DIN 43710.
