A 9 - LSY

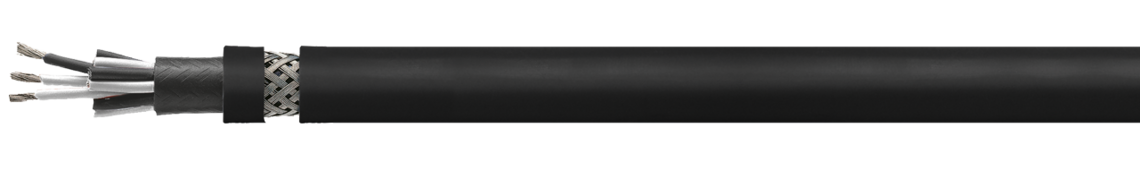

Multi-pair PVC insulated cable with steel wire armouring
Application
Additional information
Multi-paired!
Also available with cross-sections 1,0 mm², 0,75 mm², 0,5 mm² and 0,22 mm²!
Construction
| Insulation | PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
|---|---|
| Core marking | from 4 cores pair-wise numbered |
| Stranding | cores together in layers |
| Sheath material | PVC, YM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1 |
| Armouring | galvanized steel wire armouring |
| Shape | round |
| Conductor construction | strand |
| Conductor cross section | 1,5 mm² |
PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
from 4 cores pair-wise numbered
cores together in layers
PVC, YM2 acc. to EN 50363-4-1 + VDE 0207-363-4-1
galvanized steel wire armouring
round
strand
1,5 mm²
Technical data
| Min. bending radius | 12 x d |
|---|---|
| Radiation resistance | 8 x 10^7 cJ/kg |
| Temperature range of insulation | fixed laying: -40/+70°C flexible application: +5/+70°C |
| Insulation resistance | > 1 M Ω x km |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
12 x d
8 x 10^7 cJ/kg
fixed laying: -40/+70°C
flexible application: +5/+70°C
> 1 M Ω x km
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. | Cable type | no. of cores | For thermocouple | Approx. outer-ø | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| 046289… | A 9 - 2LSY | 2 | 1 | 8,5 mm | 11,3 kg/100m | Send inquiry |
| 046204… | A 9 - 4LSY | 4 | 2 | 9,5 mm | 15,0 kg/100m | Send inquiry |
| 046206… | A 9 - 6LSY | 6 | 3 | 11,3 mm | 21,4 kg/100m | Send inquiry |
| 046212… | A 9 - 12LSY | 12 | 6 | 14,7 mm | 36,0 kg/100m | Send inquiry |
| 046216… | A 9 - 16LSY | 16 | 8 | 16,4 mm | 46,9 kg/100m | Send inquiry |
| 046220… | A 9 - 20LSY | 20 | 10 | 18,0 mm | 57,2 kg/100m | Send inquiry |
| 046224… | A 9 - 24LSY | 24 | 12 | 19,7 mm | 64,0 kg/100m | Send inquiry |
| 046232… | A 9 - 32LSY | 32 | 16 | 21,4 mm | 80,5 kg/100m | Send inquiry |
| 046236… | A 9 - 36LSY | 36 | 18 | 22,1 mm | 88,6 kg/100m | Send inquiry |
| 046240… | A 9 - 40LSY | 40 | 20 | 24,1 mm | 100,1 kg/100m | Send inquiry |
Other dimensions and colours are possible on request.
