SAB Kabel

TGV

with fibre-glass braiding and stainless steel wire armouring

Application

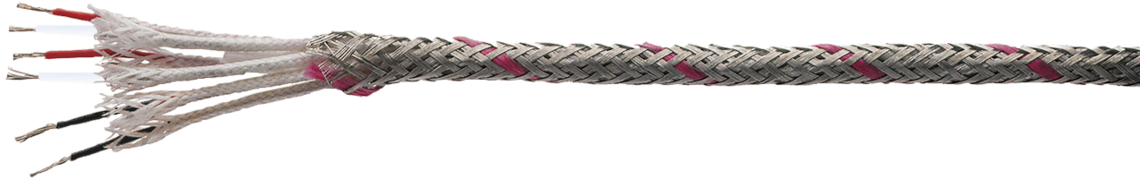

Cable for Resistance Thermometer - The PFA insulated connection cable for resistance thermometers has fibre-glass braiding and stainless steel wire armouring. The conductor is made out of nickel-plated copper strands. Finally, this connection cable has a round shape and a stranding of cores together.

Additional information

item-no.:                                           no. of cores x cross section n x mm²                              construction of strands n x wire Ø                                    approx. outer-Ø mm                            approx. cable weight kg/km
047002182 x 0,1810 x 0,153,42,1
047003183 x 0,1810 x 0,153,62,3
047004184 x 0,1810 x 0,154,02,7
047006186 x 0,1810 x 0,154,83,8

Construction

Conductor

nickel-plated copper strand

Insulation

PFA

Braiding

fibre-glass

Stranding

cores together

Armouring

stainless steel wire armouring (VA) with tracer

Shape

round

Conductor

nickel-plated copper strand

Insulation

PFA

Braiding

fibre-glass

Stranding

cores together

Armouring

stainless steel wire armouring (VA) with tracer

Shape

round

Technical data

Min. bending radius

12 x d

Temperature range

flexible application: max. +250 °C

fixed laying: max. +250 °C

limited time of use: max +260 °C

Insulation resistance

> 1 M Ω x km

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25

Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Min. bending radius

12 x d

Temperature range

flexible application: max. +250 °C

fixed laying: max. +250 °C

limited time of use: max +260 °C

Insulation resistance

> 1 M Ω x km

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24

resp. IEC 60332-3-25 + VDE 0482-332-3-25

Cat. C resp. D, see chapter N „Technical Data“.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Dimensions

item no. no. of cores x cross section construction of strands n x wire ø colour code approx. outer-ø cable weight ca.
047002182 x 0,18 mm²10 x 0,15rot/weiß3,4 mm2,1 kg/km Send inquiry
047003183 x 0,18 mm²10 x 0,15rot/rot/weiß3,6 mm2,3 kg/km Send inquiry
047004184 x 0,18 mm²10 x 0,15rot/rot/weiß/weiß4,0 mm2,7 kg/km Send inquiry
047006186 x 0,18 mm²10 x 0,15rot/rot/weiß/weiß/schwarz/schwarz4,8 mm3,8 kg/km Send inquiry
item no.
no. of cores x cross section
construction of strands n x wire ø
colour code
approx. outer-ø
cable weight ca.
04700218
2 x 0,18 mm²
10 x 0,15
rot/weiß
3,4 mm
2,1 kg/km
04700318
3 x 0,18 mm²
10 x 0,15
rot/rot/weiß
3,6 mm
2,3 kg/km
04700418
4 x 0,18 mm²
10 x 0,15
rot/rot/weiß/weiß
4,0 mm
2,7 kg/km
04700618
6 x 0,18 mm²
10 x 0,15
rot/rot/weiß/weiß/schwarz/schwarz
4,8 mm
3,8 kg/km

Other dimensions and colours are possible on request.
