Th LTV

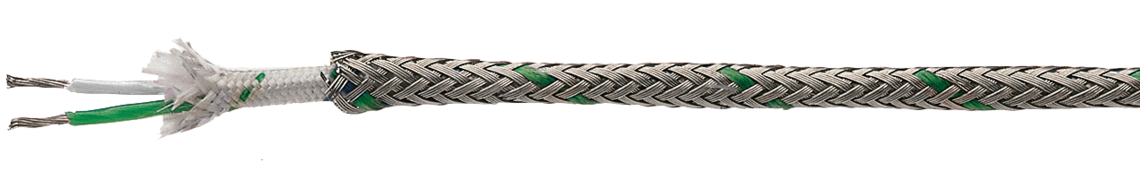

PFA insulated extension cables for thermocouples with fibre-glass braiding andstainless steel wire armouring
Application
This Thermocouple Cable has a stainless steel wire armouring (VA) with tracer and a temperature range of insulation in fixed and flexible applications of max. + 250 °C. Moreover, it does not cause flame propagation acc. to IEC 60332 + EN 60332 Cat. C resp. D.
Additional information
Construction
| Insulation | PFA |
|---|---|
| Stranding | cores together |
| Braiding | fibre-glass |
| Armouring | stainless steel wire armouring (VA) with tracer |
| Shape | round |
| Conductor construction | 0,22 mm² = 7 x 0,20 mm ø 0,50 mm² = 16 x 0,20 mm ø 1,00 mm² = 32 x 0,20 mm ø |
PFA
cores together
fibre-glass
stainless steel wire armouring (VA) with tracer
round
0,22 mm² = 7 x 0,20 mm ø
0,50 mm² = 16 x 0,20 mm ø
1,00 mm² = 32 x 0,20 mm ø
Technical data
| Min. bending radius | 12 x d |
|---|---|
| Temperature range | flexible application: max. +250 °C fixed laying: max. +250 °C limited time of use: +260 °C |
| Insulation resistance | > 1 M Ω x km |
| Fire performance | no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
12 x d
flexible application: max. +250 °C
fixed laying: max. +250 °C
limited time of use: +260 °C
> 1 M Ω x km
no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 Cat. C resp. D, see chapter N „Technical Data“.
Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
| item no. | Type |
No. of cores x cross section | For thermocouple | Approx. outer-ø | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| 047350 …* | Th 20 LTV | 2 x 0,22 mm² | Fe-CuNi | 3,2 mm | 1,9 kg/100m | Send inquiry |
| 047351 …* | Th 50 LTV | 2 x 0,5 mm² | Fe-CuNi | 4,1 mm | 3,9 kg/100m | Send inquiry |
| 047352 …* | Th 100 LTV | 2 x 1,0 mm² | Fe-CuNi | 4,9 mm | 5,2 kg/100m | Send inquiry |
| 047353 …* | Th 20 -4 LTV | 4 x 0,22 mm² | Fe-CuNi | 3,6 mm | 2,9 kg/100m | Send inquiry |
| 047354 …* | Th 50 -4 LTV | 4 x 0,5 mm² | Fe-CuNi | 4,7 mm | 5,1 kg/100m | Send inquiry |
| 047355 …* | Th 100-4 LTV | 4 x 1,0 mm² | Fe-CuNi | 5,6 mm | 7,5 kg/100m | Send inquiry |
| 047350…* | Th 20 LTV | 2 x 0,22 mm² | NiCr-Ni | 3,2 mm | 1,9 kg/100m | Send inquiry |
| 047351…* | Th 50 LTV | 2 x 0,5 mm² | NiCr-Ni | 4,1 mm | 3,9 kg/100m | Send inquiry |
| 047352…* | Th 100 LTV | 2 x 1,0 mm² | NiCr-Ni | 4,9 mm | 5,2 kg/100m | Send inquiry |
| 047353…* | Th 20 -4 LTV | 4 x 0,22 mm² | NiCr-Ni | 3,6 mm | 2,9 kg/100m | Send inquiry |
| 047354…* | Th 50 -4 LTV | 4 x 0,5 mm² | NiCr-Ni | 4,7 mm | 5,1 kg/100m | Send inquiry |
| 047355…* | Th 100-4 LTV | 4 x 1,0 mm² | NiCr-Ni | 5,6 mm | 7,5 kg/100m | Send inquiry |
cross section
*Thermocouple code ─ Other dimensions and colours are possible on request.
