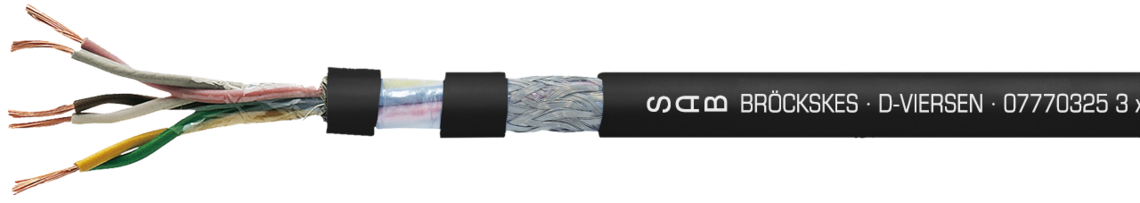

SD 960 CY TP

Paired PVC data cable with coloured cores, overall copper screen, and UL

Marking for SD 960 CY TP 07770525: SAB BRÖCKSKES · D-VIERSEN · 07770325 3 x 2 x 0,25 mm² SD 960 CY TP 24 AWG/3pr 07772403 UL AWM Style 21083 80°C 300V CE

Marking for SD 960 CY TP 07770525: SAB BRÖCKSKES · D-VIERSEN · 07770325 3 x 2 x 0,25 mm² SD 960 CY TP 24 AWG/3pr 07772403 UL AWM Style 21083 80°C 300V CE

Application

SD 960 CY TP is a continuously flexible paired PVC data cable with coloured cores and overall copper screen. This data cable for flex application is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • good flexibility
  • small bending radius
  • shielded
  • reinforced outer sheath

Additional information

Possible on request!

  • with grey outer sheath and coloured cores acc. to DIN 47100

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

acc. to colour code US 3

Stranding

cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over the outer layer

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Stranding

cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over the outer layer

Screen

tinned copper braiding

Sheath material

PVC, TM2 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70°C

DIN VDE flexible application: -5/+70°C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Oil resistance

acc. to internal standard

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Voltage UL

300 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -30/+70°C

DIN VDE flexible application: -5/+70°C

UL: up to +80°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,
UL VW-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x cross section
n x 2 x mm²
Largest single
wire-ø
Outer-ø ± 10% Copper figure Cable weight ≈
L077702142 x 2 x 0,14 mm²0,11 mm6,1 mm19,4 kg/km47 kg/km Send inquiry
L077703143 x 2 x 0,14 mm²0,11 mm6,7 mm33,0 kg/km58 kg/km Send inquiry
L077704144 x 2 x 0,14 mm²0,11 mm7,6 mm43,1 kg/km69 kg/km Send inquiry
L077705145 x 2 x 0,14 mm²0,11 mm8,6 mm46,3 kg/km85 kg/km Send inquiry
L077707147 x 2 x 0,14 mm²0,11 mm9,2 mm54,0 kg/km109 kg/km Send inquiry
L0777101410 x 2 x 0,14 mm²0,11 mm10,7 mm70,7 kg/km138 kg/km Send inquiry
L0777141414 x 2 x 0,14 mm²0,11 mm12,8 mm87,3 kg/km183 kg/km Send inquiry
L0777181418 x 2 x 0,14 mm²0,11 mm13,9 mm107,0 kg/km243 kg/km Send inquiry
L0777251425 x 2 x 0,14 mm²0,11 mm16,1 mm128,6 kg/km313 kg/km Send inquiry
L077702252 x 2 x 0,25 mm²0,11 mm6,5 mm34,4 kg/km54 kg/km Send inquiry
L077703253 x 2 x 0,25 mm²0,11 mm7,2 mm46,8 kg/km70 kg/km Send inquiry
L077704254 x 2 x 0,25 mm²0,11 mm8,5 mm52,1 kg/km86 kg/km Send inquiry
L077705255 x 2 x 0,25 mm²0,11 mm9,3 mm59,4 kg/km102 kg/km Send inquiry
L077707257 x 2 x 0,25 mm²0,11 mm9,8 mm69,9 kg/km136 kg/km Send inquiry
L0777102510 x 2 x 0,25 mm²0,11 mm11,7 mm96,2 kg/km172 kg/km Send inquiry
L0777142514 x 2 x 0,25 mm²0,11 mm14,1 mm126,1 kg/km250 kg/km Send inquiry
L0777182518 x 2 x 0,25 mm²0,11 mm15,1 mm147,0 kg/km305 kg/km Send inquiry
L0777252525 x 2 x 0,25 mm²0,11 mm17,5 mm211,2 kg/km394 kg/km Send inquiry
L077702342 x 2 x 0,34 mm²0,11 mm6,8 mm38,4 kg/km60 kg/km Send inquiry
L077703343 x 2 x 0,34 mm²0,11 mm7,4 mm47,9 kg/km76 kg/km Send inquiry
L077704344 x 2 x 0,34 mm²0,11 mm8,9 mm61,0 kg/km102 kg/km Send inquiry
L077705345 x 2 x 0,34 mm²0,11 mm9,6 mm68,6 kg/km117 kg/km Send inquiry
L077707347 x 2 x 0,34 mm²0,11 mm10,6 mm89,4 kg/km165 kg/km Send inquiry
L0777103410 x 2 x 0,34 mm²0,11 mm12,5 mm114,6 kg/km195 kg/km Send inquiry
L0777143414 x 2 x 0,34 mm²0,11 mm14,9 mm151,4 kg/km287 kg/km Send inquiry
L0777183418 x 2 x 0,34 mm²0,11 mm16,4 mm204,1 kg/km357 kg/km Send inquiry
L0777253425 x 2 x 0,34 mm²0,11 mm18,4 mm273,7 kg/km445 kg/km Send inquiry
L077702502 x 2 x 0,50 mm²0,16 mm7,4 mm37,8 kg/km70 kg/km Send inquiry
L077703503 x 2 x 0,50 mm²0,16 mm8,6 mm61,7 kg/km104 kg/km Send inquiry
L077704504 x 2 x 0,50 mm²0,16 mm9,8 mm74,5 kg/km128 kg/km Send inquiry
L077705505 x 2 x 0,50 mm²0,16 mm10,8 mm92,1 kg/km150 kg/km Send inquiry
L077707507 x 2 x 0,50 mm²0,16 mm11,7 mm115,6 kg/km205 kg/km Send inquiry
L0777105010 x 2 x 0,50 mm²0,16 mm14,1 mm154,9 kg/km278 kg/km Send inquiry
L0777145014 x 2 x 0,50 mm²0,16 mm16,7 mm223,8 kg/km373 kg/km Send inquiry
L0777185018 x 2 x 0,50 mm²0,16 mm17,9 mm265,4 kg/km459 kg/km Send inquiry
L0777255025 x 2 x 0,50 mm²0,16 mm20,2 mm355,9 kg/km576 kg/km Send inquiry
L077702752 x 2 x 0,75 mm²0,16 mm8,7 mm62,2 kg/km100 kg/km Send inquiry
L077703753 x 2 x 0,75 mm²0,16 mm9,6 mm79,2 kg/km130 kg/km Send inquiry
L077704754 x 2 x 0,75 mm²0,16 mm11,3 mm105,3 kg/km175 kg/km Send inquiry
L077705755 x 2 x 0,75 mm²0,16 mm12,6 mm123,5 kg/km211 kg/km Send inquiry
L077707757 x 2 x 0,75 mm²0,16 mm13,8 mm174,9 kg/km292 kg/km Send inquiry
L0777107510 x 2 x 0,75 mm²0,16 mm16,3 mm232,4 kg/km362 kg/km Send inquiry
L0777147514 x 2 x 0,75 mm²0,16 mm18,9 mm313,8 kg/km475 kg/km Send inquiry
L0777187518 x 2 x 0,75 mm²0,16 mm20,4 mm378,7 kg/km589 kg/km Send inquiry
L0777257525 x 2 x 0,75 mm²0,16 mm23,5 mm504,6 kg/km771 kg/km Send inquiry
item no.
No. of pairs x cross section
n x 2 x mm²
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
L07770214
2 x 2 x 0,14 mm²
0,11 mm
6,1 mm
19,4 kg/km
47 kg/km
L07770314
3 x 2 x 0,14 mm²
0,11 mm
6,7 mm
33,0 kg/km
58 kg/km
L07770414
4 x 2 x 0,14 mm²
0,11 mm
7,6 mm
43,1 kg/km
69 kg/km
L07770514
5 x 2 x 0,14 mm²
0,11 mm
8,6 mm
46,3 kg/km
85 kg/km
L07770714
7 x 2 x 0,14 mm²
0,11 mm
9,2 mm
54,0 kg/km
109 kg/km
L07771014
10 x 2 x 0,14 mm²
0,11 mm
10,7 mm
70,7 kg/km
138 kg/km
L07771414
14 x 2 x 0,14 mm²
0,11 mm
12,8 mm
87,3 kg/km
183 kg/km
L07771814
18 x 2 x 0,14 mm²
0,11 mm
13,9 mm
107,0 kg/km
243 kg/km
L07772514
25 x 2 x 0,14 mm²
0,11 mm
16,1 mm
128,6 kg/km
313 kg/km
L07770225
2 x 2 x 0,25 mm²
0,11 mm
6,5 mm
34,4 kg/km
54 kg/km
L07770325
3 x 2 x 0,25 mm²
0,11 mm
7,2 mm
46,8 kg/km
70 kg/km
L07770425
4 x 2 x 0,25 mm²
0,11 mm
8,5 mm
52,1 kg/km
86 kg/km
L07770525
5 x 2 x 0,25 mm²
0,11 mm
9,3 mm
59,4 kg/km
102 kg/km
L07770725
7 x 2 x 0,25 mm²
0,11 mm
9,8 mm
69,9 kg/km
136 kg/km
L07771025
10 x 2 x 0,25 mm²
0,11 mm
11,7 mm
96,2 kg/km
172 kg/km
L07771425
14 x 2 x 0,25 mm²
0,11 mm
14,1 mm
126,1 kg/km
250 kg/km
L07771825
18 x 2 x 0,25 mm²
0,11 mm
15,1 mm
147,0 kg/km
305 kg/km
L07772525
25 x 2 x 0,25 mm²
0,11 mm
17,5 mm
211,2 kg/km
394 kg/km
L07770234
2 x 2 x 0,34 mm²
0,11 mm
6,8 mm
38,4 kg/km
60 kg/km
L07770334
3 x 2 x 0,34 mm²
0,11 mm
7,4 mm
47,9 kg/km
76 kg/km
L07770434
4 x 2 x 0,34 mm²
0,11 mm
8,9 mm
61,0 kg/km
102 kg/km
L07770534
5 x 2 x 0,34 mm²
0,11 mm
9,6 mm
68,6 kg/km
117 kg/km
L07770734
7 x 2 x 0,34 mm²
0,11 mm
10,6 mm
89,4 kg/km
165 kg/km
L07771034
10 x 2 x 0,34 mm²
0,11 mm
12,5 mm
114,6 kg/km
195 kg/km
L07771434
14 x 2 x 0,34 mm²
0,11 mm
14,9 mm
151,4 kg/km
287 kg/km
L07771834
18 x 2 x 0,34 mm²
0,11 mm
16,4 mm
204,1 kg/km
357 kg/km
L07772534
25 x 2 x 0,34 mm²
0,11 mm
18,4 mm
273,7 kg/km
445 kg/km
L07770250
2 x 2 x 0,50 mm²
0,16 mm
7,4 mm
37,8 kg/km
70 kg/km
L07770350
3 x 2 x 0,50 mm²
0,16 mm
8,6 mm
61,7 kg/km
104 kg/km
L07770450
4 x 2 x 0,50 mm²
0,16 mm
9,8 mm
74,5 kg/km
128 kg/km
L07770550
5 x 2 x 0,50 mm²
0,16 mm
10,8 mm
92,1 kg/km
150 kg/km
L07770750
7 x 2 x 0,50 mm²
0,16 mm
11,7 mm
115,6 kg/km
205 kg/km
L07771050
10 x 2 x 0,50 mm²
0,16 mm
14,1 mm
154,9 kg/km
278 kg/km
L07771450
14 x 2 x 0,50 mm²
0,16 mm
16,7 mm
223,8 kg/km
373 kg/km
L07771850
18 x 2 x 0,50 mm²
0,16 mm
17,9 mm
265,4 kg/km
459 kg/km
L07772550
25 x 2 x 0,50 mm²
0,16 mm
20,2 mm
355,9 kg/km
576 kg/km
L07770275
2 x 2 x 0,75 mm²
0,16 mm
8,7 mm
62,2 kg/km
100 kg/km
L07770375
3 x 2 x 0,75 mm²
0,16 mm
9,6 mm
79,2 kg/km
130 kg/km
L07770475
4 x 2 x 0,75 mm²
0,16 mm
11,3 mm
105,3 kg/km
175 kg/km
L07770575
5 x 2 x 0,75 mm²
0,16 mm
12,6 mm
123,5 kg/km
211 kg/km
L07770775
7 x 2 x 0,75 mm²
0,16 mm
13,8 mm
174,9 kg/km
292 kg/km
L07771075
10 x 2 x 0,75 mm²
0,16 mm
16,3 mm
232,4 kg/km
362 kg/km
L07771475
14 x 2 x 0,75 mm²
0,16 mm
18,9 mm
313,8 kg/km
475 kg/km
L07771875
18 x 2 x 0,75 mm²
0,16 mm
20,4 mm
378,7 kg/km
589 kg/km
L07772575
25 x 2 x 0,75 mm²
0,16 mm
23,5 mm
504,6 kg/km
771 kg/km

Other dimensions and colours are possible on request.
