SABIX® BL 402 FRNC

halogen-free flexible wiring cable 0,6/1 kV

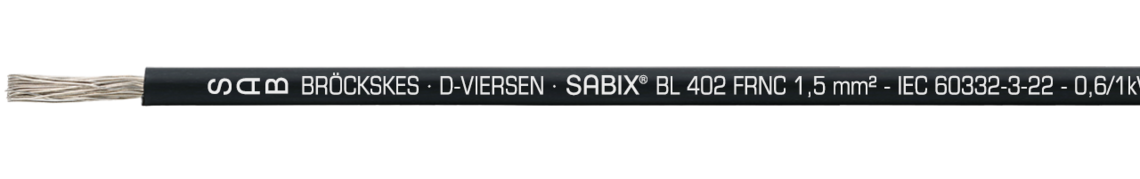

Marking for SABIX® BL 402 FRNC 64020182: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 402 FRNC 1,5mm² - IEC 60332-3-22 - 0,6/1kV  DNV CE and current meter marking

Marking for SABIX® BL 402 FRNC 64020182: SAB BRÖCKSKES · D-VIERSEN · SABIX® BL 402 FRNC 1,5mm² - IEC 60332-3-22 - 0,6/1kV DNV CE and current meter marking

Application

Especially for use in shipbuilding industry!

Outstanding features

  • halogen-free
  • asbestos-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • flexible
  • for applications acc. to Hong Kong Convention ingredients tested acc. to the requirements of the Hong Kong Convention (2009) of the IMO
  • approvals: DNV

Additional information

Possible on request:

  • bare copper strands
  • alternative colour code

Construction

Leiter

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

black (RAL 9005)

Leiter

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

special SABIX®

Colour code

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

fixed laying: -40/+90 °C

flexible applicationt: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

Temperature range

fixed laying: -40/+90 °C

flexible applicationt: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-22 + VDE 0482-332-3-22 cat. A.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Nominal cross
section
Outer-ø ± 5% Copper figure Cable weight ≈
640201801 mm²3 mm9,6 kg/km17 kg/km Send inquiry
640201821,5 mm²3,3 mm14,4 kg/km23 kg/km Send inquiry
640201842,5 mm²3,7 mm24 kg/km32 kg/km Send inquiry
640201864 mm²4,7 mm38,4 kg/km52 kg/km Send inquiry
640201876 mm²5,2 mm57,6 kg/km71 kg/km Send inquiry
6402018810 mm²6,4 mm96 kg/km121 kg/km Send inquiry
6402018916 mm²7,8 mm153,6 kg/km180 kg/km Send inquiry
6402019025 mm²9,6 mm240 kg/km275 kg/km Send inquiry
6402019135 mm²11 mm336 kg/km380 kg/km Send inquiry
6402019250 mm²12,6 mm480 kg/km536 kg/km Send inquiry
6402019370 mm²14,9 mm672 kg/km723 kg/km Send inquiry
6402019495 mm²17,4 mm912 kg/km985 kg/km Send inquiry
64020195120 mm²19,3 mm1152 kg/km1219 kg/km Send inquiry
64020196150 mm²21,2 mm1440 kg/km1500 kg/km Send inquiry
64020197185 mm²23,3 mm1776 kg/km1849 kg/km Send inquiry
64020198240 mm²27 mm2304 kg/km2447 kg/km Send inquiry
item no.
Nominal cross
section
Outer-ø ± 5%
Copper figure
Cable weight ≈
64020180
1 mm²
3 mm
9,6 kg/km
17 kg/km
64020182
1,5 mm²
3,3 mm
14,4 kg/km
23 kg/km
64020184
2,5 mm²
3,7 mm
24 kg/km
32 kg/km
64020186
4 mm²
4,7 mm
38,4 kg/km
52 kg/km
64020187
6 mm²
5,2 mm
57,6 kg/km
71 kg/km
64020188
10 mm²
6,4 mm
96 kg/km
121 kg/km
64020189
16 mm²
7,8 mm
153,6 kg/km
180 kg/km
64020190
25 mm²
9,6 mm
240 kg/km
275 kg/km
64020191
35 mm²
11 mm
336 kg/km
380 kg/km
64020192
50 mm²
12,6 mm
480 kg/km
536 kg/km
64020193
70 mm²
14,9 mm
672 kg/km
723 kg/km
64020194
95 mm²
17,4 mm
912 kg/km
985 kg/km
64020195
120 mm²
19,3 mm
1152 kg/km
1219 kg/km
64020196
150 mm²
21,2 mm
1440 kg/km
1500 kg/km
64020197
185 mm²
23,3 mm
1776 kg/km
1849 kg/km
64020198
240 mm²
27 mm
2304 kg/km
2447 kg/km

Other dimensions and colours are possible on request.
