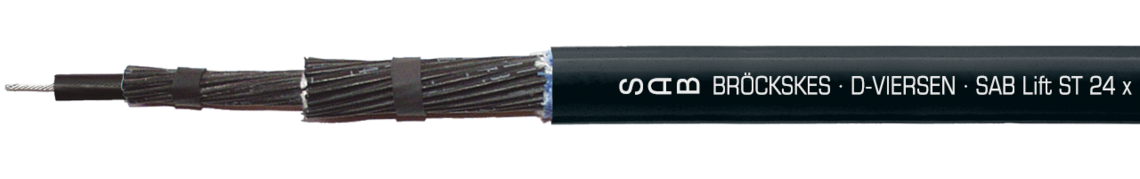

SAB Lift ST
Lift control cable with steel center as suspension unit
Application
Lift control cable with steel center as suspension unit for highest hanging lengths up to 200 m.
Outstanding features
- highest hanging lengths
- long service life
- flame retardant and self-extinguishing
Additional information
Possible on request!
- with total copper braiding
- with different conductor and sheath colours
Construction
| Conductor | bare copper strands acc. to IEC 60228, VDE 0295, class 6 |
|---|---|
| Insulation | special PVC |
| Colour code | black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores |
| Strain relief | steel rope |
| Stranding | steel rope as core, optimized twisting of conductors in layers |
| Wrapping | non-woven tape on each layer with overlap wrapping |
| Torsion protecting | special braid |
| Sheath material | special PVC |
| Sheath colour | black (RAL 9005) |
bare copper strands acc. to IEC 60228, VDE 0295, class 6
special PVC
black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores
steel rope
steel rope as core, optimized twisting of conductors in layers
non-woven tape on each layer with overlap wrapping
special braid
special PVC
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Testing voltage | conductor/conductor 2000 V |
| Min. bending radius | 15 x d |
| Temperature range | fixed laying: -30/+70 °C flexible application: -15/+70 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Suspended height | up to 200 m |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
conductor/conductor 2000 V
15 x d
fixed laying: -30/+70 °C
flexible application: -15/+70 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
up to 200 m
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of cores x cross section | medium outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|
| L37912407 | 24 x 0,75 mm² | 17,1 mm | 172,8 kg/km | 417 kg/km | 19,5 Ω/km | Send inquiry |
| L37910510 | 5 x 1,00 mm² | 9,3 mm | 48,0 kg/km | 133 kg/km | 19,5 Ω/km | Send inquiry |
| L37910710 | 7 x 1,00 mm² | 10,4 mm | 67,2 kg/km | 174 kg/km | 19,5 Ω/km | Send inquiry |
| L37910910 | 9 x 1,00 mm² | 11,9 mm | 86,4 kg/km | 266 kg/km | 19,5 Ω/km | Send inquiry |
| L37911210 | 12 x 1,00 mm² | 14,8 mm | 115,2 kg/km | 375 kg/km | 19,5 Ω/km | Send inquiry |
| L37911810 | 18 x 1,00 mm² | 17,4 mm | 172,8 kg/km | 460 kg/km | 19,5 Ω/km | Send inquiry |
| L37912410 | 24 x 1,00 mm² | 17,6 mm | 230,4 kg/km | 536 kg/km | 19,5 Ω/km | Send inquiry |
| L37913010 | 30 x 1,00 mm² | 20,6 mm | 288,0 kg/km | 721 kg/km | 19,5 Ω/km | Send inquiry |
cross section
at 20°C max.
Other dimensions and colours are possible on request.
