SAB Lift

Lift control cable with sisal cord as suspension unit

Application

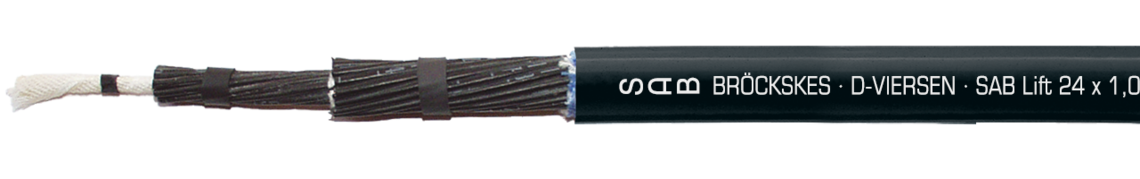

Lift control cable with sisal cord as suspension unit. Colour coding: black cores with consecutive numbers acc. to EN 50334, green-yellow earth wire from 3 cores.

Outstanding features

  • long service life
  • elevated economic efficiency
  • flame retardant and self-extinguishing

Additional information

Possible on request!

  • with total copper braiding
  • with different conductor and sheath colours

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special PVC

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Strain relief

sisal cord

Stranding

sisal cord as core, optimized twisting of the conductors in layers

Wrapping

non-woven tape on each layer with overlap wrapping

Torsion protecting

special braid

Sheath material

special PVC

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

special PVC

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Strain relief

sisal cord

Stranding

sisal cord as core, optimized twisting of the conductors in layers

Wrapping

non-woven tape on each layer with overlap wrapping

Torsion protecting

special braid

Sheath material

special PVC

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

15 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: -15/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Suspended height

up to 60 m

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

Min. bending radius

15 x d

Temperature range

fixed laying: -30/+70 °C

flexible application: -15/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Suspended height

up to 60 m

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
medium outer-ø Copper figure Cable weight ≈ Ohmic resistance
at 20°C max.
3790051011,1 mm48,0 kg/km150 kg/km19,5 Ω/km Send inquiry
3790071011,6 mm67,2 kg/km179 kg/km19,5 Ω/km Send inquiry
3790091013,0 mm86,4 kg/km226 kg/km19,5 Ω/km Send inquiry
3790121015,4 mm115,2 kg/km308 kg/km19,5 Ω/km Send inquiry
3790181020,7 mm172,8 kg/km480 kg/km19,5 Ω/km Send inquiry
3790241020,7 mm230,4 kg/km549 kg/km19,5 Ω/km Send inquiry
3790301021,9 mm288,0 kg/km653 kg/km19,5 Ω/km Send inquiry
3790121518,2 mm172,8 kg/km419 kg/km19,5 Ω/km Send inquiry
3790521534,3 mm748,8 kg/km1712 kg/km19,5 Ω/km Send inquiry
3790122523,4 mm288,0 kg/km688 kg/km19,5 Ω/km Send inquiry
item no.
No. of cores x
cross section
medium outer-ø
Copper figure
Cable weight ≈
Ohmic resistance
at 20°C max.
37900510
11,1 mm
48,0 kg/km
150 kg/km
19,5 Ω/km
37900710
11,6 mm
67,2 kg/km
179 kg/km
19,5 Ω/km
37900910
13,0 mm
86,4 kg/km
226 kg/km
19,5 Ω/km
37901210
15,4 mm
115,2 kg/km
308 kg/km
19,5 Ω/km
37901810
20,7 mm
172,8 kg/km
480 kg/km
19,5 Ω/km
37902410
20,7 mm
230,4 kg/km
549 kg/km
19,5 Ω/km
37903010
21,9 mm
288,0 kg/km
653 kg/km
19,5 Ω/km
37901215
18,2 mm
172,8 kg/km
419 kg/km
19,5 Ω/km
37905215
34,3 mm
748,8 kg/km
1712 kg/km
19,5 Ω/km
37901225
23,4 mm
288,0 kg/km
688 kg/km
19,5 Ω/km

Other dimensions and colours are possible on request.
