SAB Heat
Parallel heating cable made of silicone 50W/m

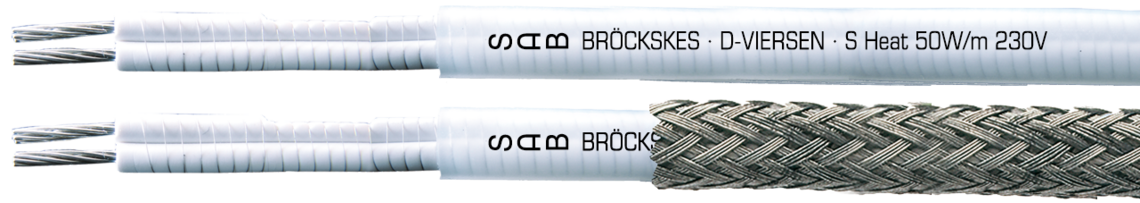

Marking for SAB Heat: SAB BRÖCKSKES · D-VIERSEN · SAB Heat 50W/m 230V
Application
The parallel heating cable SAB Heat consists of two tinned copper conductors imbedded in silicone and is surrounded by a resistance wire. The contact points are 0.5 m offset laterally. The conductors are flat beside each other and are separably connected to each other. Application for example in air conditioning untis, as anti-freeze protection, defrosting aid in cooling systems.
Additional information
Deviating perfomance categories and dimensions on request!
Construction
| Conductor | tinned copper strands, extra fine wires acc. to IEC 60228 class 2 |
|---|---|
| Dimension | 2 x 0,75 mm² |
| Insulation | Silicone |
| Colour code | white |
| Stranding | flat beside each other, separably connected |
| Contact points | 1 m, 0.5 m offset laterally |
| Sheath material | Silicone / FEP / PVC |
| Sheath colour | translucent |
| Optionally armouring: | tinned copper braiding as mechanical protection or grounding |
| Additional outer sheath | Silicone / FEP / PVC |
tinned copper strands, extra fine wires acc. to IEC 60228 class 2
2 x 0,75 mm²
Silicone
white
flat beside each other, separably connected
1 m, 0.5 m offset laterally
Silicone / FEP / PVC
translucent
tinned copper braiding as mechanical protection or grounding
Silicone / FEP / PVC
Technical data
| Allowed surface temperature | fixed laying, PVC: +70 °C fixed laying, Silicone: +200 °C fixed laying, FEP: +200 °C |
|---|---|
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Max. heating circle length | 44 m |
| Tension range | Silicone , item no. 0180-9009: 230 V Silicone, item no. 0180- . . . .: 280 V, on request FEP, item no. 0180- . . . .: 230 V, on request FEP, item no. 0180- . . . .: 280 V, on request PVC, item no. 0180- . . . .: 230 V, on request PVC, item no. 0180- . . . .: 280 V, on request |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
fixed laying, PVC: +70 °C
fixed laying, Silicone: +200 °C
fixed laying, FEP: +200 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
44 m
Silicone , item no. 0180-9009: 230 V
Silicone, item no. 0180- . . . .: 280 V, on request
FEP, item no. 0180- . . . .: 230 V, on request
FEP, item no. 0180- . . . .: 280 V, on request
PVC, item no. 0180- . . . .: 230 V, on request
PVC, item no. 0180- . . . .: 280 V, on request
gemäß RoHS-Richtlinie der Europäischen Union
Dimensions
| item no. | Sheath material | Dimension | |
|---|---|---|---|
| 0180-silicone | silicone | ≈ 4,5 x 7,3 mm | Send inquiry |
| 0180-FEP | FEP | ≈ 4,5 x 6,3 mm | Send inquiry |
| 0180-PVC | PVC | ≈ 4,5 x 7,3 mm | Send inquiry |
Other dimensions and colours are possible on request.
