S PB 634 HT
Profibus-DP cable for the high temperature range, continuously flexible

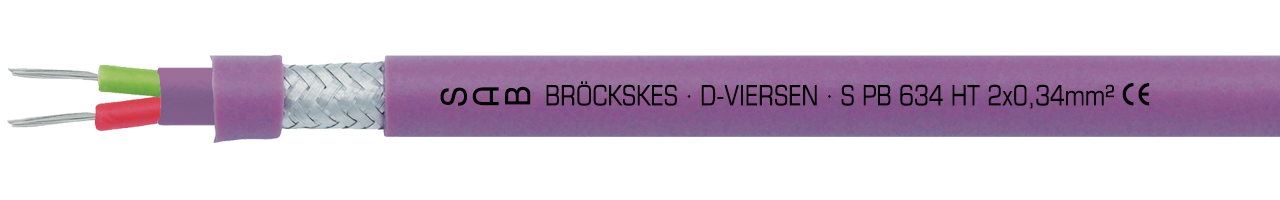

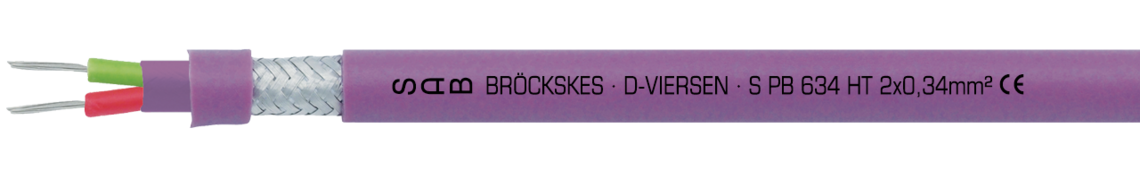

Marking for S PB 634 HT 36341000: SAB BRÖCKSKES · D-VIERSEN · S PB 634 HT 2x0,34mm² CE
Application
Extreme temperature resistant and high flexible Profibus-DP cable for the high temperature range.
Outstanding features
- extreme temperature resistance
- high notch resistance
- very good flexibility
Construction
| Conductor | tinned copper strands, extra fine wires |
|---|---|
| Core insulation | PFA |
| Colour code | red, green |
| Stranding | 0,34 mm² twisted to pairs |
| Wrapping | PTFE foil |
| Inner sheath | FEP |
| Screen 0,34 mm² | tinned copper braiding |
| Outer sheath | special Besilen® |
| Sheath colour | blue lilac (similar RAL 4005) |
tinned copper strands, extra fine wires
PFA
red, green
0,34 mm² twisted to pairs
PTFE foil
FEP
tinned copper braiding
special Besilen®
blue lilac (similar RAL 4005)
Technical data
| Peak operating voltage | max. 350 V (0,34 mm²) |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Temperature range | fixed laying: - 40°C / + 180°C flexible application: - 25°C / + 180°C short time use: + 250°C |
| Characteristic impedance PB element (3-20 MHz) | 150Ω ± 10% |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V (0,34 mm²)
core/core 1500 V
core/screen 1200 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
fixed laying: - 40°C / + 180°C
flexible application: - 25°C / + 180°C
short time use: + 250°C
150Ω ± 10%
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ |
Outer-ø ± 10% | |
|---|---|---|---|---|---|---|
| L36341000 | 2 x 0,34 mm² | 9,4 mm | 33,3 kg/km | 120 kg/km | 7.6 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
