Control cable for welding guns

3 x 1,0mm² + 4 x 0,5mm² + 3 x 3 x 0,5mm² + (2 x 0,5mm²) D

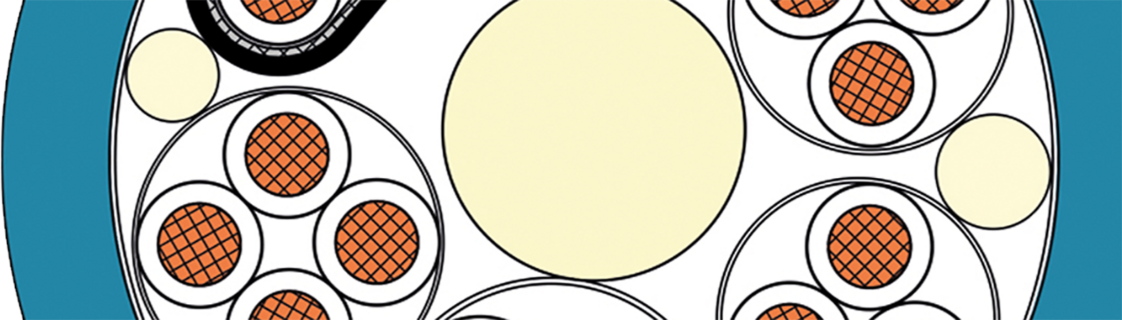

Construction

Conductor

bare copper strands acc. to IEC 60228

Insulation

TPE

Colour code

white cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

sky blue (RAL 5015)

Conductor

bare copper strands acc. to IEC 60228

Insulation

TPE

Colour code

white cores with consecutive numbers acc. to EN 50334 + VDE 0293-334

and a green-yellow earth wire

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

sky blue (RAL 5015)

Technical data

Peak operating voltage

max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 10 x d

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 500 V

Testing voltage

core/core 1500 V

core/screen 1200 V

Temperature range

flexible application:

-40/+90 °C

Min. bending radius

recommended: 10 x d

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Outer-ø
0399-01573 x 1,0 + 4 x 0,5 + 3 x 3 x 0,5 + (2 x 0,5) D12,1 mm Send inquiry
item no.
Dimension
Outer-ø
0399-0157
3 x 1,0 + 4 x 0,5 + 3 x 3 x 0,5 + (2 x 0,5) D
12,1 mm

Other dimensions and colours are possible on request.

Highly flexible cables according to your special requirements
